Direct Step Method Download Free Pdf Mathematics This document describes the standard step method for computing water surface profiles in prismatic and non prismatic channels. the method involves starting with a known depth at one location, then iteratively calculating the flow depth, velocity, energy, and distance increment to determine the depth at subsequent locations upstream or downstream. For culverts flowing partially full, the water surface profile in the culvert is computed using the direct step method. this method is very efficient, because no iterations are.
Direct Step Step By Step Method For Gvf Water Surface Profiles Ce 331 The document discusses the direct step method for determining water surface profiles for nonuniform open channel flow. in nonuniform open channel flow, the cross sectional area, depth, and velocity vary along the channel. In the direct step method, the entire length of the channel is divided into short reaches and the computation is carried out step by step from one end of the reach to the other. The php script [program] online wsprofiles 22 calculates an m 2 water surface profile in a prismatic open channel using the direct step method (chow, v. t.: open channel hydraulics, mcgraw hill, 1959). the program calculates critical and normal depths based on the geometric and hydraulic input data. The direct step method is proposed to replace the computations by trial and error used in the standard step method for tracing water surface profiles in natural channels. it is a semigraphical method applying bernoulli’s theorem and includes the effect of velocity head changes.
Solved Water Surface Profiles Standard Step Method 1 A Chegg The php script [program] online wsprofiles 22 calculates an m 2 water surface profile in a prismatic open channel using the direct step method (chow, v. t.: open channel hydraulics, mcgraw hill, 1959). the program calculates critical and normal depths based on the geometric and hydraulic input data. The direct step method is proposed to replace the computations by trial and error used in the standard step method for tracing water surface profiles in natural channels. it is a semigraphical method applying bernoulli’s theorem and includes the effect of velocity head changes. Calculating the coordinates of the water surface profile using this method is an iterative process achieved by choosing a range of flow depths, beginning at the downstream end, and proceeding incrementally up to the point of interest or to the point of normal flow depth. In the direct step method, an increment (or decrement) of water depth (δd) is chosen and the distance over which the depth change occurs is computed. the accuracy depends on the size of δd. the method is appropriate for prismatic channel sections such as occur in most conduits. Water surface profile calculator analyze depth changes using standard step calculations. visualize water surface, energy grade, and velocity trends. export results for reports, reviews, and fast design checks. This video explains the numerical example for determining the type of water surface profile and computation of length of the profile by direct step method (step by step.

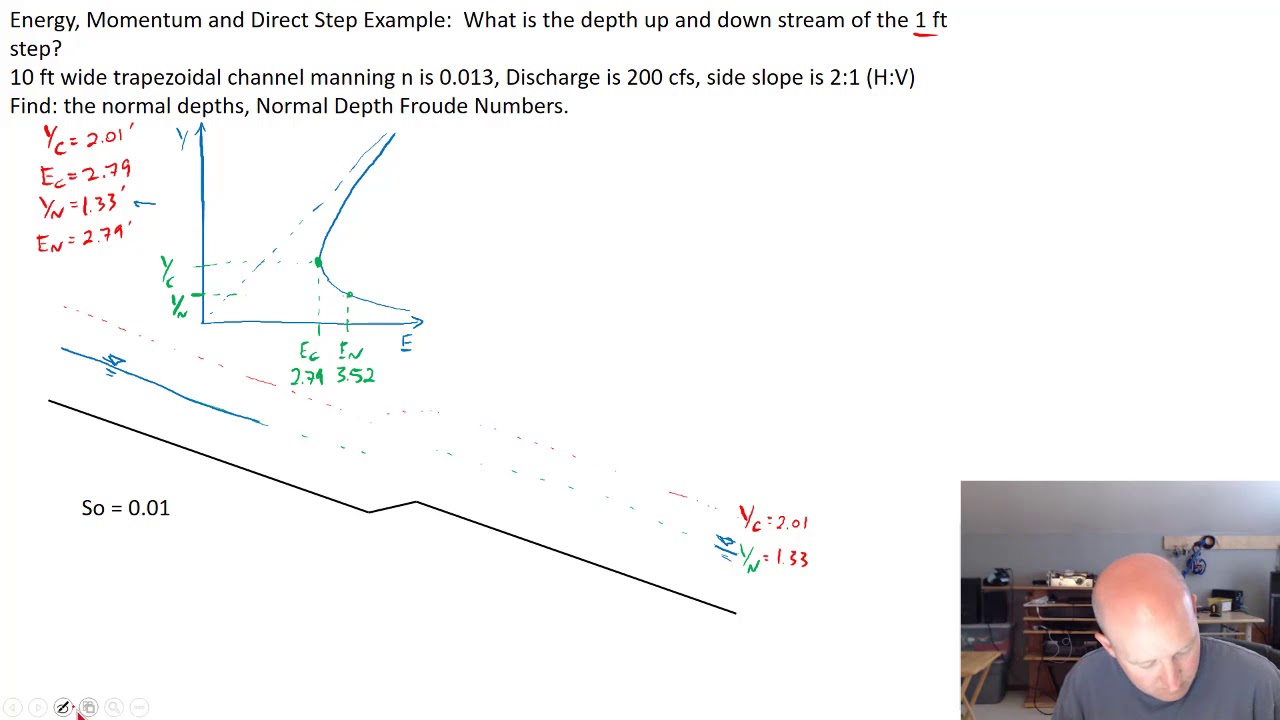

Water Surface Profiles Pptx Calculating the coordinates of the water surface profile using this method is an iterative process achieved by choosing a range of flow depths, beginning at the downstream end, and proceeding incrementally up to the point of interest or to the point of normal flow depth. In the direct step method, an increment (or decrement) of water depth (δd) is chosen and the distance over which the depth change occurs is computed. the accuracy depends on the size of δd. the method is appropriate for prismatic channel sections such as occur in most conduits. Water surface profile calculator analyze depth changes using standard step calculations. visualize water surface, energy grade, and velocity trends. export results for reports, reviews, and fast design checks. This video explains the numerical example for determining the type of water surface profile and computation of length of the profile by direct step method (step by step.
Water Surface Profiles Pptx Water surface profile calculator analyze depth changes using standard step calculations. visualize water surface, energy grade, and velocity trends. export results for reports, reviews, and fast design checks. This video explains the numerical example for determining the type of water surface profile and computation of length of the profile by direct step method (step by step.
