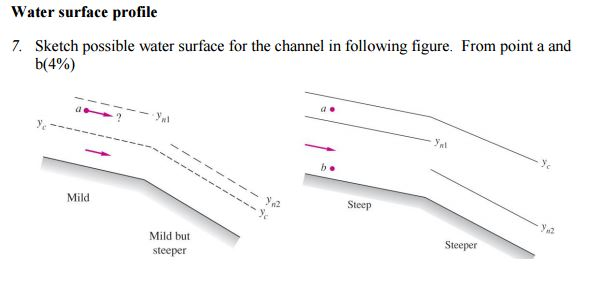

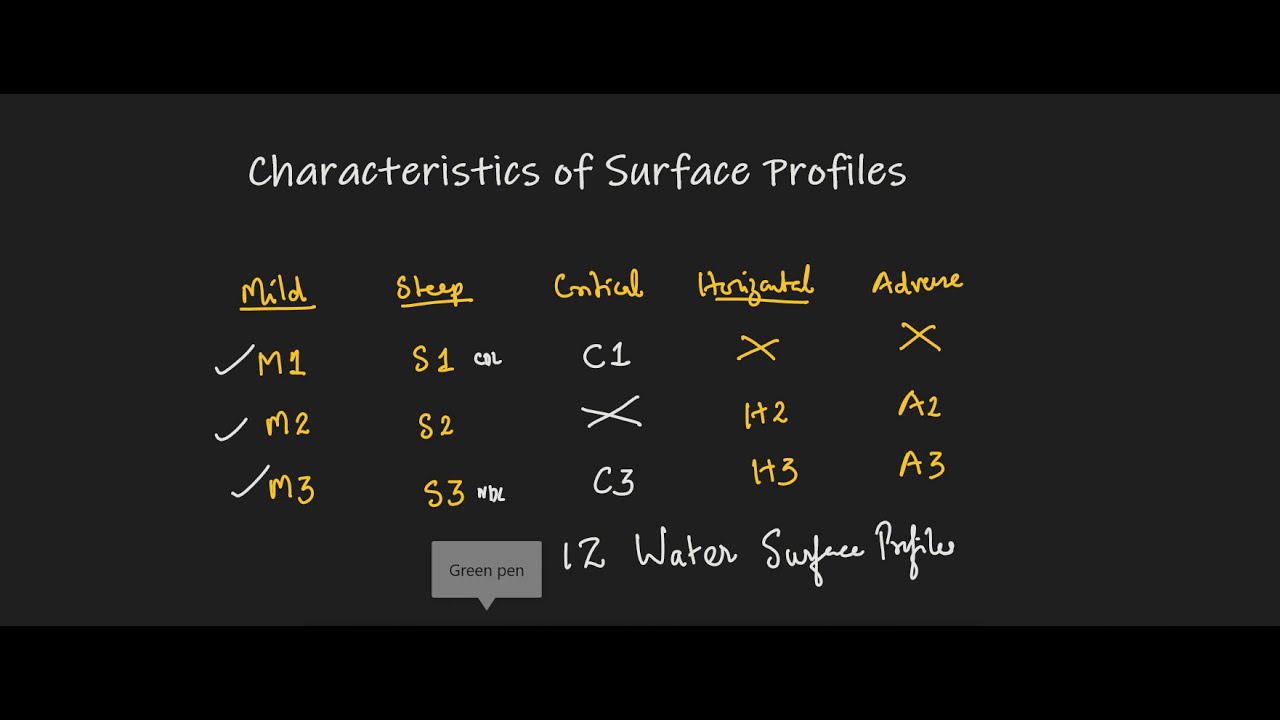

Solved Water Surface Profile 7 Sketch Possible Water Chegg Develop the water surface profile for the channel having the conditions described below using: a. direct step method b. euler's method. your solution’s ready to go! our expert help has broken down your problem into an easy to learn solution you can count on. It includes 8 multi part questions involving calculations of flow rates, water depths, energy losses, length of flow profiles, and sketching of water surface profiles for channels with changing slope, weirs, and gated structures.

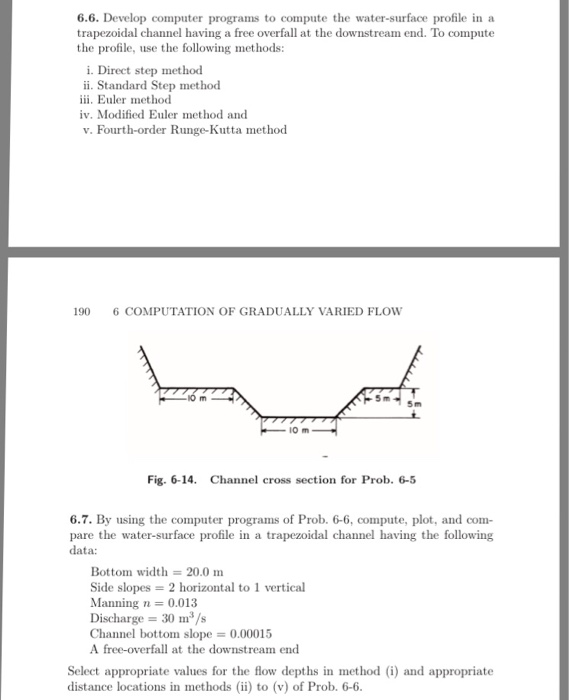

Solved 6 6 Develop Computer Programs To Compute The Chegg To sketch the water surface profile for the given parameters, we need to consider the flow conditions in the rectangular channel. here’s a step by step breakdown:. As the channel is “long”, the hydraulic jump must cause a return to the normal depth and the depth on the upstream side of the jump is the sequent depth. Develop computer programs to compute the water surface profile in a trapezoidal channel having a free overfall at the downstream end. to compute the profile, use the following methods:. Develop computer programs to compute the water surface profile in a trapezoidal channel having a risen water level to a certain depth at the downstream end. to compute the profile, use the ollowing methods i.
Solved A Sketch One Of The Possible Water Surface Profiles Chegg Develop computer programs to compute the water surface profile in a trapezoidal channel having a free overfall at the downstream end. to compute the profile, use the following methods:. Develop computer programs to compute the water surface profile in a trapezoidal channel having a risen water level to a certain depth at the downstream end. to compute the profile, use the ollowing methods i. Our expert help has broken down your problem into an easy to learn solution you can count on. question: (20 points) sketch the water surface profile for the following two scenarios. write down the type of profile for each segment. assume each channel segment is long. Sketch the water surface profiles in the channel system of fig. 5 17. in this figure, ndl and cdl denote normal and critical depth lines, respectively. here’s the best way to solve it. The document provides information about calculating water surface profiles in open channels, including: 1) it discusses how to calculate the water surface elevation at a constriction in a channel using the energy equation. The document describes two methods for computing water surface profiles in open channels: 1) the numerical integration method, which iteratively calculates small changes in depth (Δy) and distance (Δx) using equations integrating the water slope.

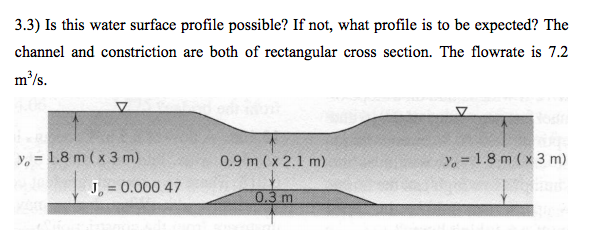

Solved 3 3 Is This Water Surface Profile Possible If Not Chegg Our expert help has broken down your problem into an easy to learn solution you can count on. question: (20 points) sketch the water surface profile for the following two scenarios. write down the type of profile for each segment. assume each channel segment is long. Sketch the water surface profiles in the channel system of fig. 5 17. in this figure, ndl and cdl denote normal and critical depth lines, respectively. here’s the best way to solve it. The document provides information about calculating water surface profiles in open channels, including: 1) it discusses how to calculate the water surface elevation at a constriction in a channel using the energy equation. The document describes two methods for computing water surface profiles in open channels: 1) the numerical integration method, which iteratively calculates small changes in depth (Δy) and distance (Δx) using equations integrating the water slope.

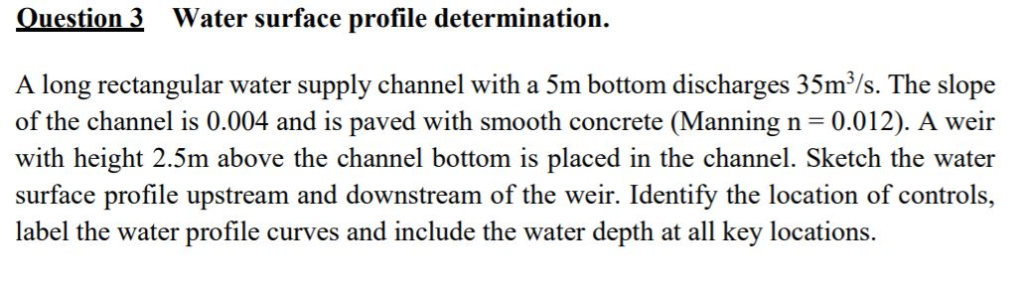

Solved 3 Sketch The Water Surface Profile In The Channel Chegg The document provides information about calculating water surface profiles in open channels, including: 1) it discusses how to calculate the water surface elevation at a constriction in a channel using the energy equation. The document describes two methods for computing water surface profiles in open channels: 1) the numerical integration method, which iteratively calculates small changes in depth (Δy) and distance (Δx) using equations integrating the water slope.
