Tutorial Curve Driven Pattern In Solidworks Grabcad Tutorials The curve driven pattern tool allows you to create patterns along a planar or 3d curve. to define the pattern, you can use any sketch segment, or the edge of a face (solid or surface), that lies along the plane. you can base your pattern on an open curve, or on a closed curve, such as a circle. In this how to use curve driven pattern tutorial, you'll learn how to create a custom pattern in solidworks using a curve driven feature. this pattern will be used to form the top and side skirts for a dresser drawer.

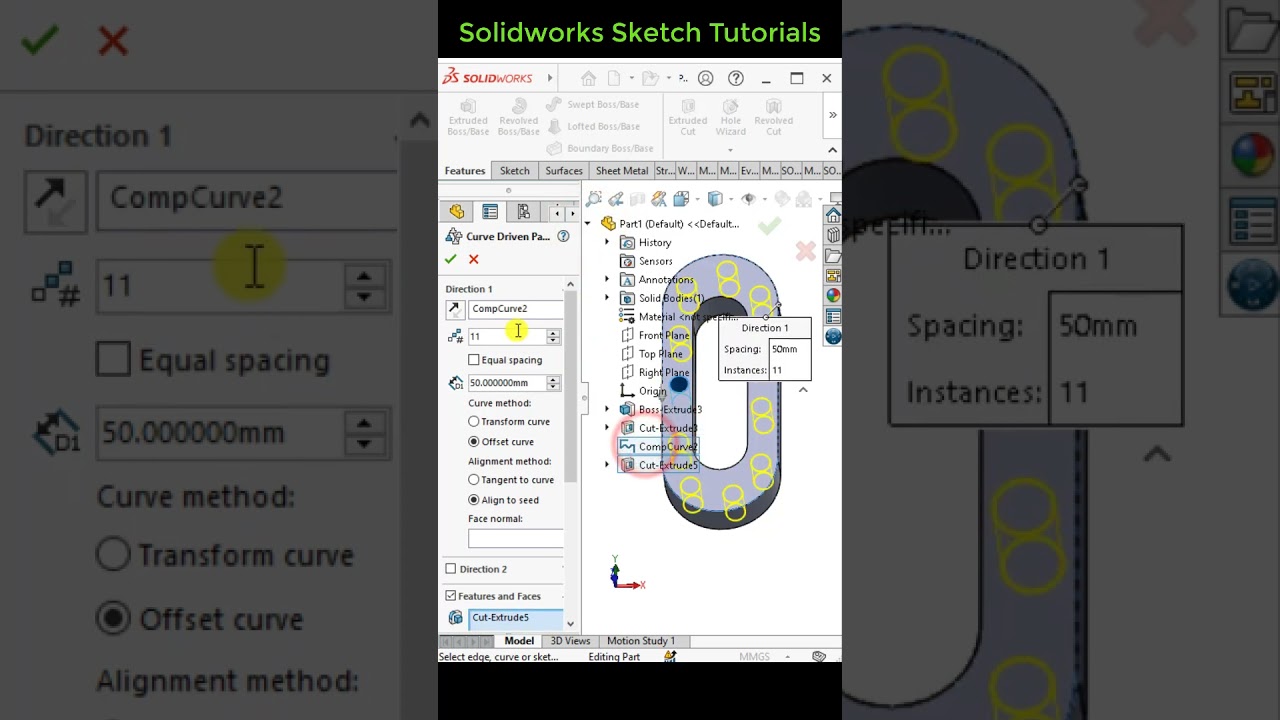

Tutorial Curve Driven Pattern In Solidworks Grabcad Tutorials This video explains how to use curve driven pattern in solidworks for placing features accurately along a curved path. In this how to use curve driven pattern tutorial, you'll learn how to create a custom pattern in solidworks using a curve driven feature. this pattern will be used to form the top and side skirts for a dresser drawer. Follow the instructions to learn how to do curve driven patterns in solidworks. step 1: compose a component with a feature you wish to pattern along a curve. then, choose curve driven pattern from the features toolbar or insert > pattern mirror > curve driven pattern. To handle these cases, solidworks offers specialized patterning tools. curve driven patterns allow features to follow complex paths across curved surfaces. a common best practice is to utilize 3d sketches to position the feature on a surface before defining the path.
Tutorial Curve Driven Pattern In Solidworks Grabcad Tutorials Follow the instructions to learn how to do curve driven patterns in solidworks. step 1: compose a component with a feature you wish to pattern along a curve. then, choose curve driven pattern from the features toolbar or insert > pattern mirror > curve driven pattern. To handle these cases, solidworks offers specialized patterning tools. curve driven patterns allow features to follow complex paths across curved surfaces. a common best practice is to utilize 3d sketches to position the feature on a surface before defining the path. It allows the user to pattern a feature, face, or body following a curve. the curve can be generated from all types of features: a split line, a projected curve, a composite curve, a curve through reference points xyz, a helix spiral, or even a 3d sketch. Join gabriel corbett for an in depth discussion in this video, use the curve driven pattern tool, part of solidworks: tips & tricks. Here's a basic guide on how to create a curve driven pattern: 1. **create a curve**: first, create the curve (like a sketch or spline) along which you want to pattern the feature or component. The curve driven pattern tool allows you to create patterns along a planar or 3d curve. to define the pattern, you can use any sketch segment, or the edge of a face (solid or surface), that lies along the plane. you can base your pattern on an open curve, or on a closed curve, such as a circle.
Tutorial Curve Driven Pattern In Solidworks Grabcad Tutorials It allows the user to pattern a feature, face, or body following a curve. the curve can be generated from all types of features: a split line, a projected curve, a composite curve, a curve through reference points xyz, a helix spiral, or even a 3d sketch. Join gabriel corbett for an in depth discussion in this video, use the curve driven pattern tool, part of solidworks: tips & tricks. Here's a basic guide on how to create a curve driven pattern: 1. **create a curve**: first, create the curve (like a sketch or spline) along which you want to pattern the feature or component. The curve driven pattern tool allows you to create patterns along a planar or 3d curve. to define the pattern, you can use any sketch segment, or the edge of a face (solid or surface), that lies along the plane. you can base your pattern on an open curve, or on a closed curve, such as a circle.
Tutorial Curve Driven Pattern In Solidworks Grabcad Tutorials Here's a basic guide on how to create a curve driven pattern: 1. **create a curve**: first, create the curve (like a sketch or spline) along which you want to pattern the feature or component. The curve driven pattern tool allows you to create patterns along a planar or 3d curve. to define the pattern, you can use any sketch segment, or the edge of a face (solid or surface), that lies along the plane. you can base your pattern on an open curve, or on a closed curve, such as a circle.
