Tutorial Curve Driven Pattern In Solidworks Grabcad Tutorials

Tutorial Curve Driven Pattern In Solidworks Grabcad Tutorials By following along, you'll learn how to create a smooth curve around the edges of your object, as well as how to sequence the pattern so that it is applied uniformly across the entire object. This video explains how to use curve driven pattern in solidworks for placing features accurately along a curved path.

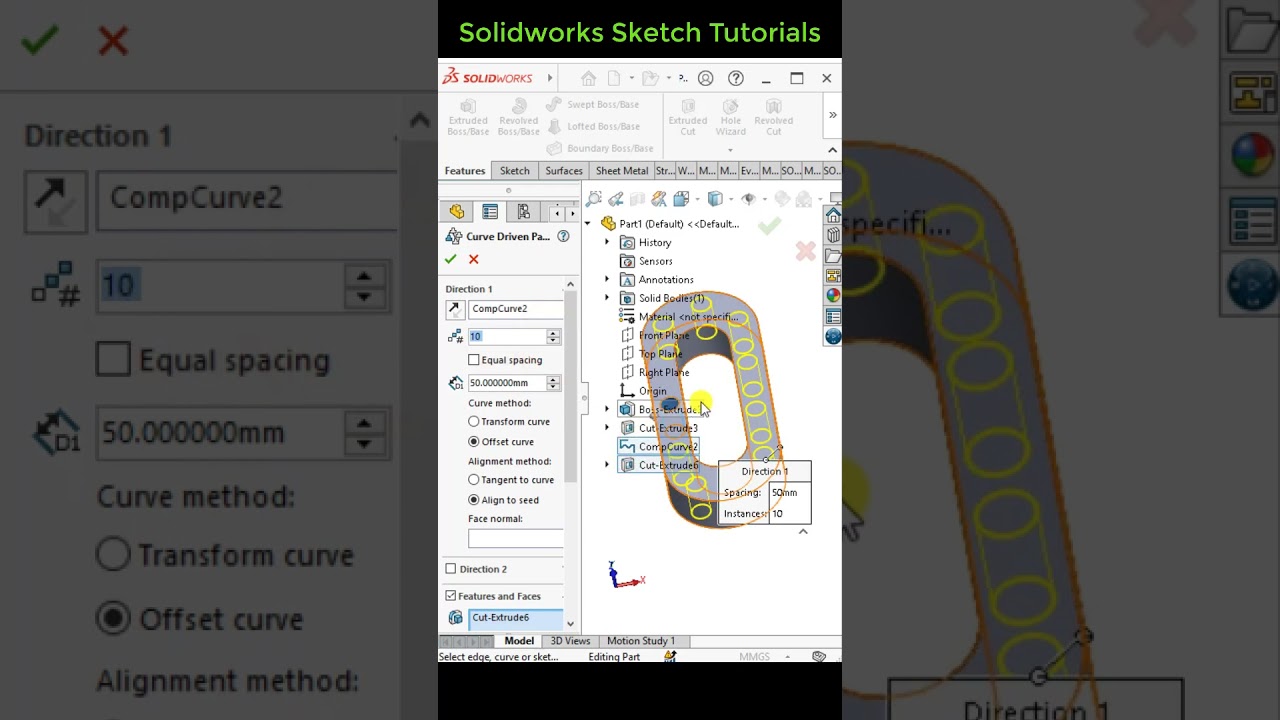

Tutorial Curve Driven Pattern In Solidworks Grabcad Tutorials By following along, you'll learn how to create a smooth curve around the edges of your object, as well as how to sequence the pattern so that it is applied uniformly across the entire object. Was this tutorial useful? the computer aided design ("cad") files and all associated content posted to this website are created, uploaded, managed and owned by third party users. Draw a spline from the center of the circular cut. select curve driven pattern. select spline as the direction1. select extrude cut as the feature to be patterned. check equal spacing and no. of instance to 4. click ok and we have the curve driven pattern. was this tutorial useful? here is the tutorial. Learn how to make solidowrks curve driven pattern? learn how to make bodies to pattern?.

Tutorial Curve Driven Pattern In Solidworks Grabcad Tutorials Draw a spline from the center of the circular cut. select curve driven pattern. select spline as the direction1. select extrude cut as the feature to be patterned. check equal spacing and no. of instance to 4. click ok and we have the curve driven pattern. was this tutorial useful? here is the tutorial. Learn how to make solidowrks curve driven pattern? learn how to make bodies to pattern?. Hi dorit, the problem is : you are trying to create separate features that solidworks calls them bodies the answer : select bodies to pattern instead of feature as i did it. Step 1: donation from rixtronix lab, thanks tutorial basic curve driven pattern extrude boss extrude cut solidworks. One of the standout features of solidworks is the **curve driven pattern**, which allows users to replicate features along a specified curve, significantly enhancing modeling efficiency and. Learn how to use curve driven pattern in solidworks to create repetitive features along a curve.

Tutorial Curve Driven Pattern In Solidworks Grabcad Tutorials Hi dorit, the problem is : you are trying to create separate features that solidworks calls them bodies the answer : select bodies to pattern instead of feature as i did it. Step 1: donation from rixtronix lab, thanks tutorial basic curve driven pattern extrude boss extrude cut solidworks. One of the standout features of solidworks is the **curve driven pattern**, which allows users to replicate features along a specified curve, significantly enhancing modeling efficiency and. Learn how to use curve driven pattern in solidworks to create repetitive features along a curve.
