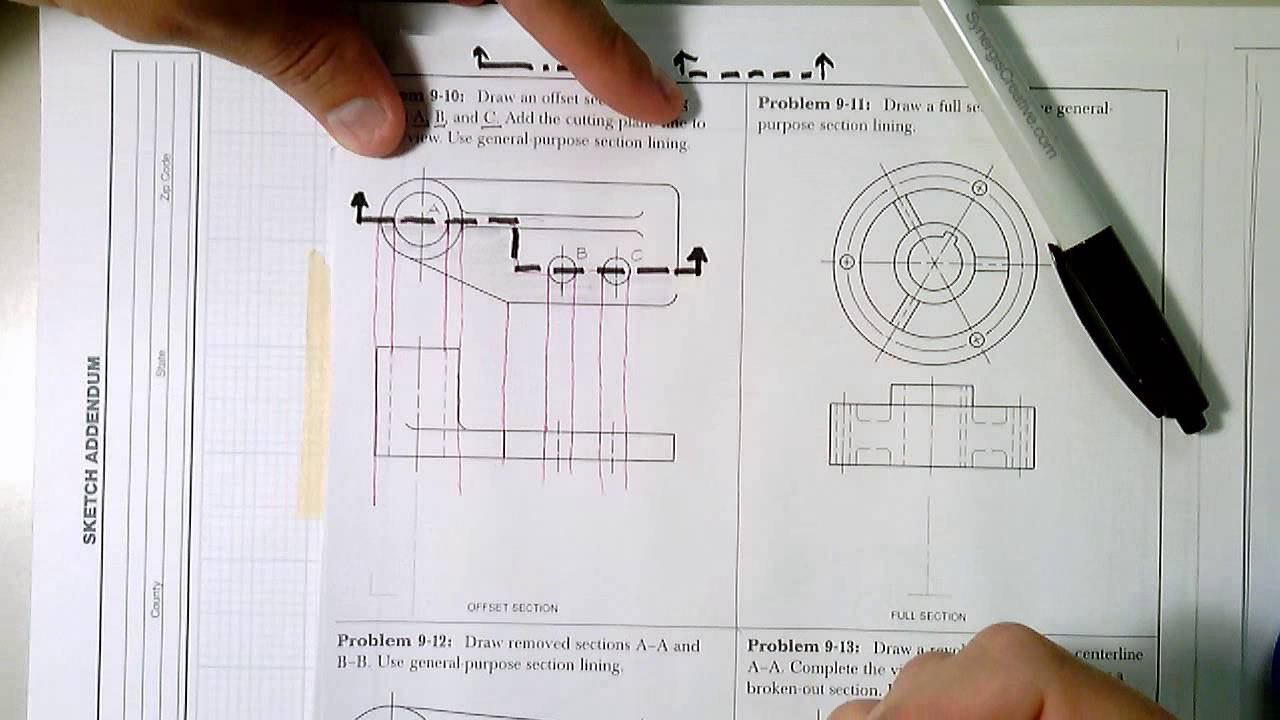

Solved Section Views 1 Complete The Front View As A Half Chegg Section views offset sections (problem 9 10) mr. scott 3.87k subscribers subscribe. Practice creating full, offset, and half section views with this engineering drawing study set. includes problems for laboratory work.
Solved Given Top Front Views Sketch Offset Sections Aa Chegg Detailed views sectioned drawing definition: a multiview technical drawing that reveals details about internal features by displaying the part as if cut by an imaginary cutting plane objective: to make the drawing more understandable, especially the internal details of the part principles:. An offset section is a means of including in a single section several features of an object that are not in a straight line. to do this, the cutting plane line is bent, or “offset” to pass through the features of the part. The document discusses sectional view drawings, including how to draw cutting plane lines, section lines, and different types of sectional views such as full, half, offset, aligned, removed, multiple, and broken out views. This document discusses sectioning techniques in engineering drawings. it covers basic topics like full, half, and offset sections as well as advanced topics such as aligned and revolved sections. each section type is explained with examples and exercises.
Solved Center The Views Within The Work Area And Make One Chegg The document discusses sectional view drawings, including how to draw cutting plane lines, section lines, and different types of sectional views such as full, half, offset, aligned, removed, multiple, and broken out views. This document discusses sectioning techniques in engineering drawings. it covers basic topics like full, half, and offset sections as well as advanced topics such as aligned and revolved sections. each section type is explained with examples and exercises. Offset sectional views parts should not be sectioned ! • when the cutting plane passes through thin features such as rib or a web, shafts, keys & splines, nuts, bolts & rivets such parts are not sectioned . The resulting section view, placed in the position of the front view, shows all four holes in one drawing—eliminating the need to create four separate views. an interactive element helps visualizing the object and offset section in three dimensions. When drawing an offset cutting plane line, show the line in either horizontal or vertical line segments. locate the section view below the front view and add the appropriate centerlines. An offset section is produced by bending the cutting plane to show features that don’t lie in the same plane. the section is drawn as if the offsets in the cutting plane were in one material plane.
