Offset Sections With Autocad

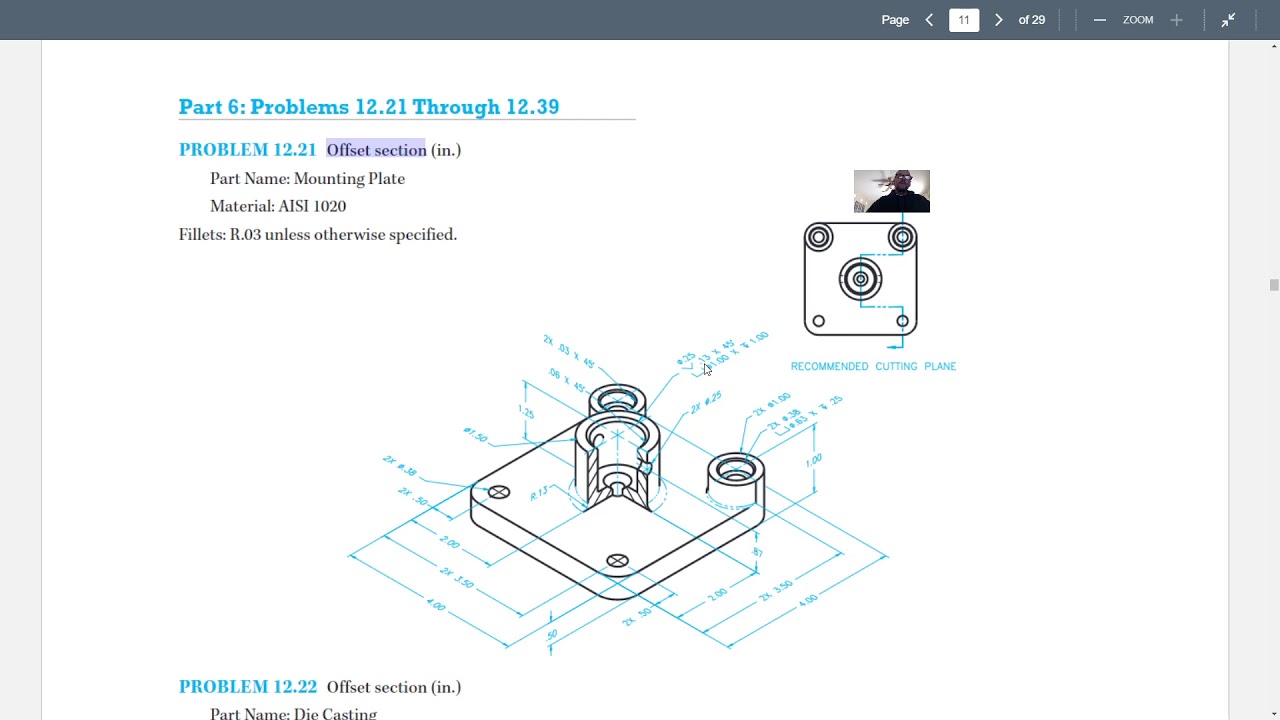

Autocad Geometry Multiple Offset Kobilabs An offset section view is generated by offsetting (bending) the cutting plane to show features that are not in a straight line. In this video, i explain how offset works, how to create parallel lines, duplicate shapes at a set distance, and how to speed up your 2d drafting workflow.
Offset In Autocad Professional Drawing Work For Beginner S Use the autocad offset command to create precise parallel lines, arcs, and polylines. learn distance settings, side selection, erase source, and common mistakes. While autocad does not provide a direct setting for a default offset distance, users can easily input their preferred distance every time they initiate the `offset` command, or they can utilize custom scripts to streamline the process. This document discusses different types of section views used in mechanical drawings and cad models. it describes various sectioning techniques like full sections, half sections, offset sections, and broken sections. This program enables the user to offset a section of a polyline enclosed by two selected points on the polyline. upon issuing the command syntax offsec at the autocad command line, the user is first prompted to specify an offset distance by which the polyline section will be offset to both sides.
Offset In Autocad Professional Drawing Work For Beginner S This document discusses different types of section views used in mechanical drawings and cad models. it describes various sectioning techniques like full sections, half sections, offset sections, and broken sections. This program enables the user to offset a section of a polyline enclosed by two selected points on the polyline. upon issuing the command syntax offsec at the autocad command line, the user is first prompted to specify an offset distance by which the polyline section will be offset to both sides. The offset command allows you to create a drawing object parallel to an existing drawing object at a specified distance from the original object. offset is a powerful command and if used when applicable, will change the way you construct objects and improve your drawing productivity. In this installment of the autocad essentials for civil engineers series, we’ll focus on the offset tool, a versatile feature that simplifies drafting repetitive patterns like parallel lines, concentric circles, and more. An offset section is a means of including in a single section several features of an object that are not in a straight line. to do this, the cutting plane line is bent, or “offset” to pass through the features of the part. In all sections of a single component, section lines should be similar in direction and spacing, but adjacent parts should be section lined in different directions, angles, or spacing.
Offset In Autocad Professional Drawing Work For Beginner S The offset command allows you to create a drawing object parallel to an existing drawing object at a specified distance from the original object. offset is a powerful command and if used when applicable, will change the way you construct objects and improve your drawing productivity. In this installment of the autocad essentials for civil engineers series, we’ll focus on the offset tool, a versatile feature that simplifies drafting repetitive patterns like parallel lines, concentric circles, and more. An offset section is a means of including in a single section several features of an object that are not in a straight line. to do this, the cutting plane line is bent, or “offset” to pass through the features of the part. In all sections of a single component, section lines should be similar in direction and spacing, but adjacent parts should be section lined in different directions, angles, or spacing.
Offset In Autocad Professional Drawing Work For Beginner S An offset section is a means of including in a single section several features of an object that are not in a straight line. to do this, the cutting plane line is bent, or “offset” to pass through the features of the part. In all sections of a single component, section lines should be similar in direction and spacing, but adjacent parts should be section lined in different directions, angles, or spacing.
