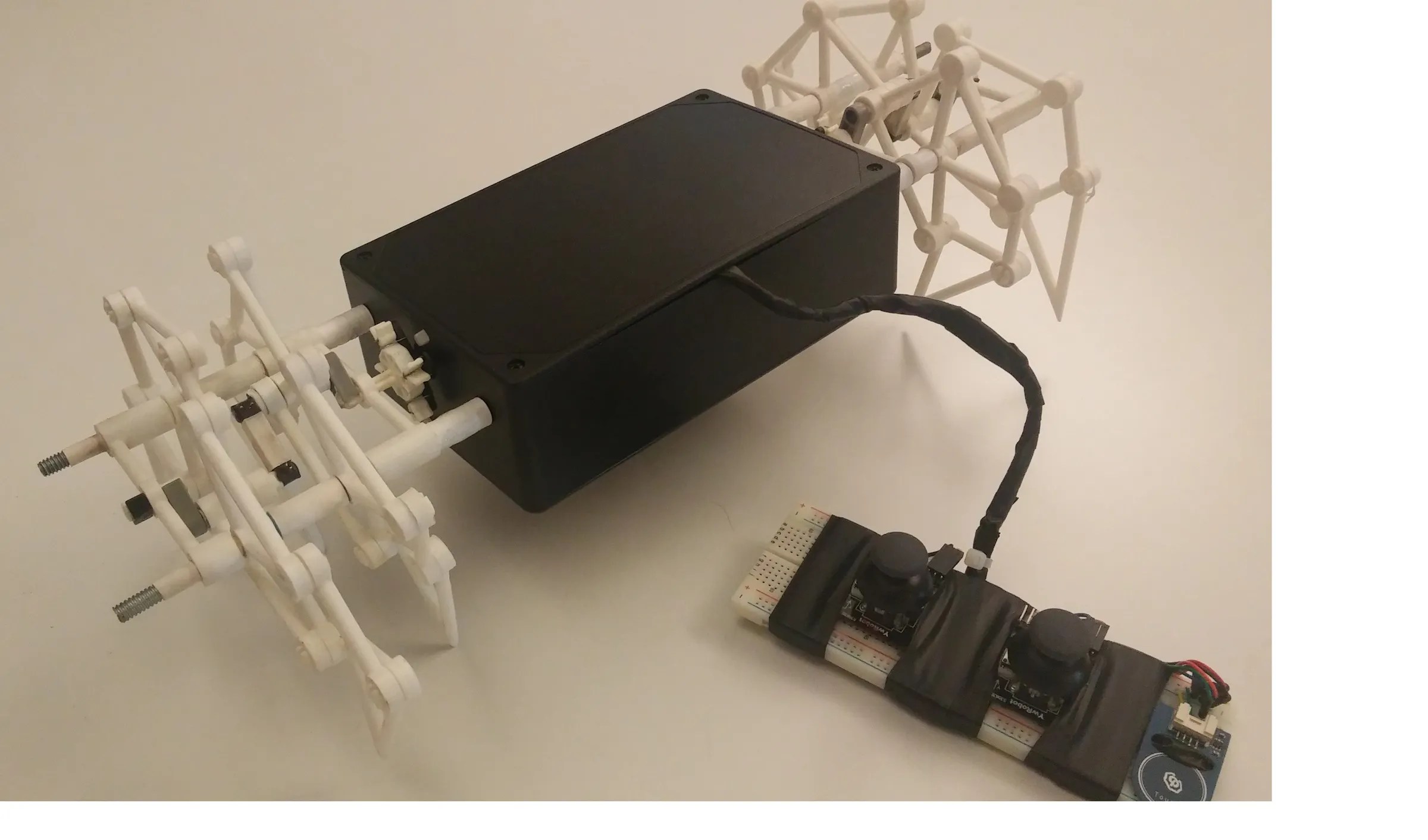

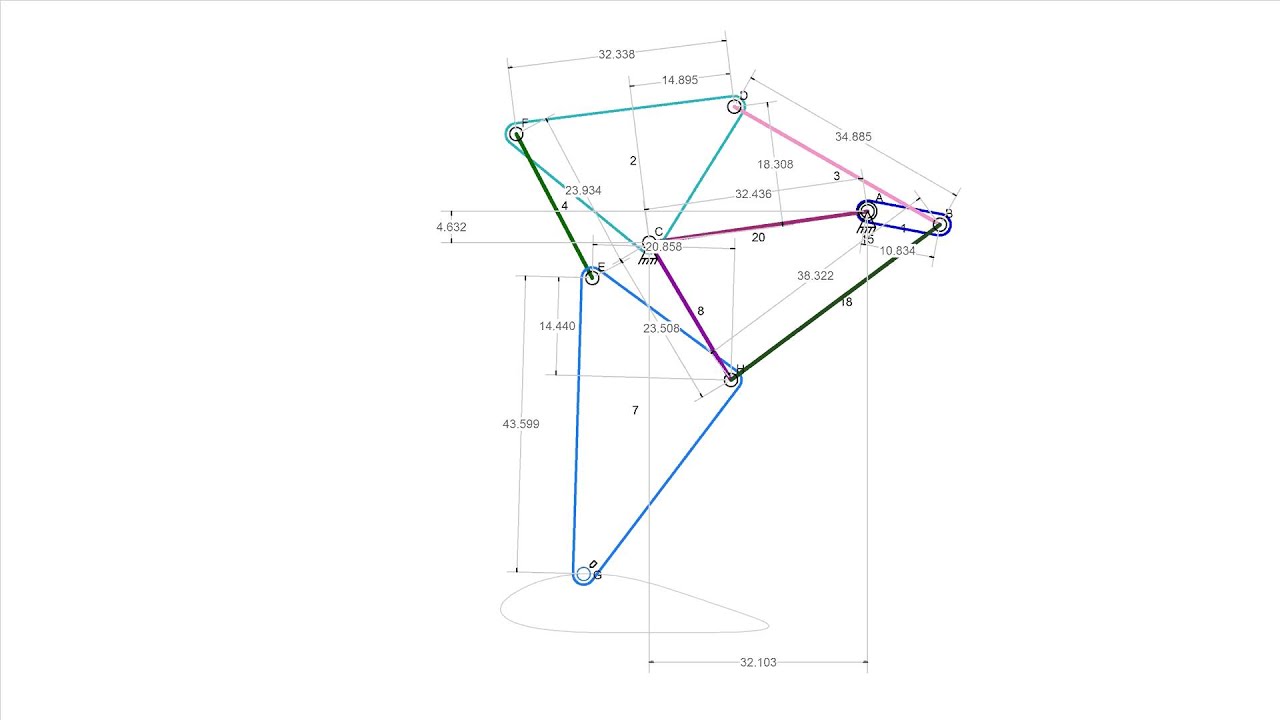

Theo Jansen Linkage Mechanism Pdf Mechanical Engineering Machines Just another video made with the linkage mechanism designer and simulator. i recently added hd video creation and fixed some bugs to get better quality. I pick new features for the linkage program from user suggestions, and i would love to hear about features that i didn’t consider, or have never imagined. watch a basic tutorial on how to create a mechanism using the linkage software.
Jansen S Linkage Alchetron The Free Social Encyclopedia The parallel link in the jansen linkage helps the linkage to attain the required step height by folding during the cycle angling of the leg. the central 'crank' link moves in circles as it is actuated by a rotary actuator such as an electric motor. The document describes deriving and solving a system of 8 nonlinear equations with 8 unknowns to model the positions of joints in a jansen mechanical linkage. the equations relate the angles of the joints based on trigonometric relationships between link lengths and cartesian coordinates. Jansen linkages author: wailfin a collection of implementations of theo jansen's walking linkage, as used in his strandbeest sculptures. Since 1990, he has been working on kinetic art, creating his own unique art world, ‘strandbeest,’ a beach animal. links of appropriate length are linked together to create a complex movement as if the animal’s legs were moving. theo jansen’s basic structure consists of 11 bars.
Github Ebukaamadiobi Jansenlinkage This Repository Contains Python Jansen linkages author: wailfin a collection of implementations of theo jansen's walking linkage, as used in his strandbeest sculptures. Since 1990, he has been working on kinetic art, creating his own unique art world, ‘strandbeest,’ a beach animal. links of appropriate length are linked together to create a complex movement as if the animal’s legs were moving. theo jansen’s basic structure consists of 11 bars. The parallel link in the jansen linkage helps the linkage to attain the required step height by folding during the cycle angling of the leg. the central 'crank' link moves in circles as it is actuated by a rotary actuator such as an electric motor. To run my project you will need to download all the files and have matlab installed on your computer. the version of matlab i used was r2016b. the project was organised so that all functions are called from just running the interface (janseninterface.m). It was created by mr. theo jansen, a dutch kinetic sculptor. the mechanism has many advantages from the design viewpoint, such as: it has a sdof, a crank as an input link and an ovoid footpath. also, two legs are in pair and are mirrored, where they share the same crank as the input link. Click on play icon to run the simulation and click on pause icon to stop it. click on the rotate icon to change the direction of rotation. click on the trace icon to trace the path.
Jansen S Linkage Legs Evan Li The parallel link in the jansen linkage helps the linkage to attain the required step height by folding during the cycle angling of the leg. the central 'crank' link moves in circles as it is actuated by a rotary actuator such as an electric motor. To run my project you will need to download all the files and have matlab installed on your computer. the version of matlab i used was r2016b. the project was organised so that all functions are called from just running the interface (janseninterface.m). It was created by mr. theo jansen, a dutch kinetic sculptor. the mechanism has many advantages from the design viewpoint, such as: it has a sdof, a crank as an input link and an ovoid footpath. also, two legs are in pair and are mirrored, where they share the same crank as the input link. Click on play icon to run the simulation and click on pause icon to stop it. click on the rotate icon to change the direction of rotation. click on the trace icon to trace the path.
Jansen S Linkage Legs Evan Li It was created by mr. theo jansen, a dutch kinetic sculptor. the mechanism has many advantages from the design viewpoint, such as: it has a sdof, a crank as an input link and an ovoid footpath. also, two legs are in pair and are mirrored, where they share the same crank as the input link. Click on play icon to run the simulation and click on pause icon to stop it. click on the rotate icon to change the direction of rotation. click on the trace icon to trace the path.
