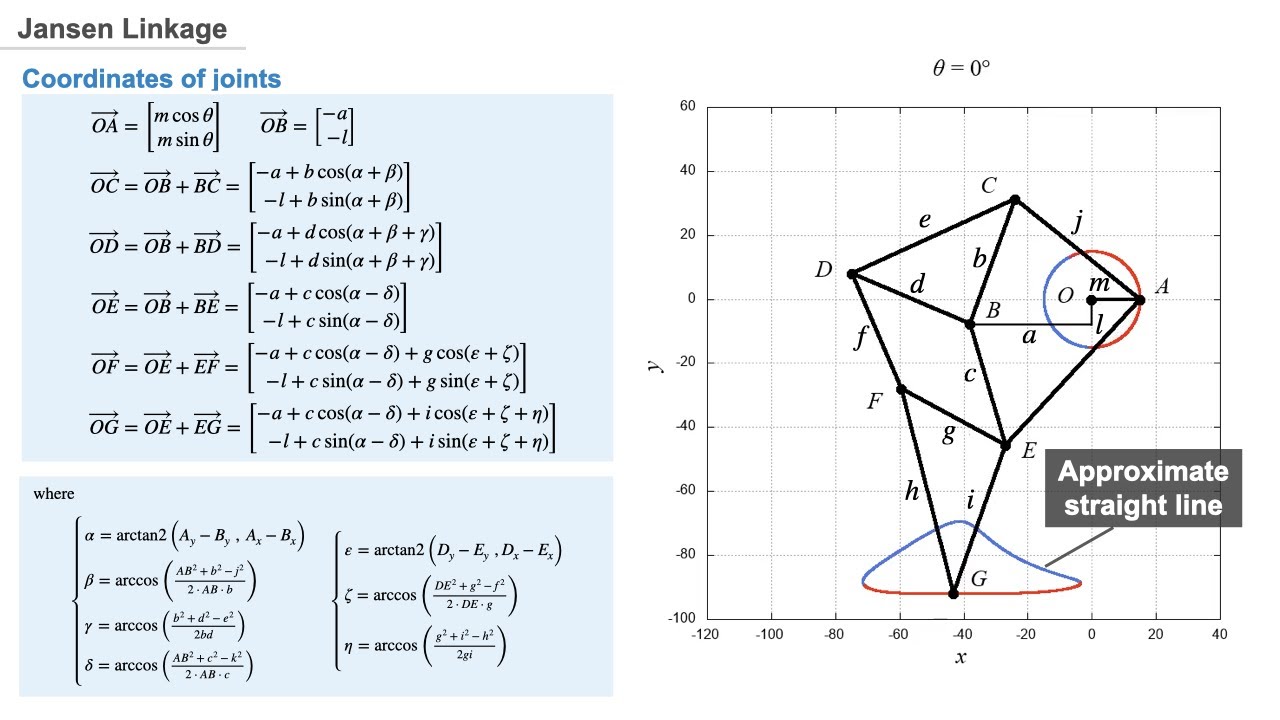

Jansen S Linkage Alchetron The Free Social Encyclopedia Jansen linkage "jansen linkage" is a simulator of a linkage mechanism with gnuplot. 【source code & details】 ︎ my blog hirossoliloquy 2020 04 jansen linkage gnuplot 【chapters】00:00 jansen linkage00:34 finding coordinat.

Github Ebukaamadiobi Jansenlinkage This Repository Contains Python Simulation [gnuplot] program 1 : output animation of jansen's linkage source code (plt file) output (png file → gif file). Jansen linkages author: wailfin a collection of implementations of theo jansen's walking linkage, as used in his strandbeest sculptures. % % %create point coordinate array p % p=[x y]; % % %use vector dot product to compute angle between links % r12=p(2,:) p(1,:); % r41=p(1,:) p(4,:); % t1=acosd(dot(r12, r41). (l1*l4)); % % %use law of cosines to compute length of diagonal from p2 p4 % d=sqrt(l1^2 l4^2 2*l1*l4*cosd(t1)); % % %use law of cosines to compute angles beta and gamma %. Visualize a given jansen walking mechanism and identify the four bar mechanism present in it.

Jansen Linkage Gnuplot Hiro S Soliloquy % % %create point coordinate array p % p=[x y]; % % %use vector dot product to compute angle between links % r12=p(2,:) p(1,:); % r41=p(1,:) p(4,:); % t1=acosd(dot(r12, r41). (l1*l4)); % % %use law of cosines to compute length of diagonal from p2 p4 % d=sqrt(l1^2 l4^2 2*l1*l4*cosd(t1)); % % %use law of cosines to compute angles beta and gamma %. Visualize a given jansen walking mechanism and identify the four bar mechanism present in it. Pages design fab lab parametric design linkage jansen linkage created by choy sze tsan clifford, last modified on feb 10, 2025 07:22 purpose: a logical simulation of the jansen linkage grasshopper definitions: jansen 20250208.gh. Among leg mechanisms, jansen's linkage (jl) has gained popularity due to its organic walking motion, scalable design, and simple drive by rotary input. however, the highly nonlinear nature of. Click on play icon to run the simulation and click on pause icon to stop it. click on the rotate icon to change the direction of rotation. click on the trace icon to trace the path. This repository contains python code for analyzing and animating the dynamic behavior of a jansen mechanical linkage using closure equations and gaussian elimination methods. the project includes numerical solutions, iterative methods, and a 3d animation of the linkage’s trajectory.

Jansen Linkage Gnuplot Hiro S Soliloquy Pages design fab lab parametric design linkage jansen linkage created by choy sze tsan clifford, last modified on feb 10, 2025 07:22 purpose: a logical simulation of the jansen linkage grasshopper definitions: jansen 20250208.gh. Among leg mechanisms, jansen's linkage (jl) has gained popularity due to its organic walking motion, scalable design, and simple drive by rotary input. however, the highly nonlinear nature of. Click on play icon to run the simulation and click on pause icon to stop it. click on the rotate icon to change the direction of rotation. click on the trace icon to trace the path. This repository contains python code for analyzing and animating the dynamic behavior of a jansen mechanical linkage using closure equations and gaussian elimination methods. the project includes numerical solutions, iterative methods, and a 3d animation of the linkage’s trajectory.
