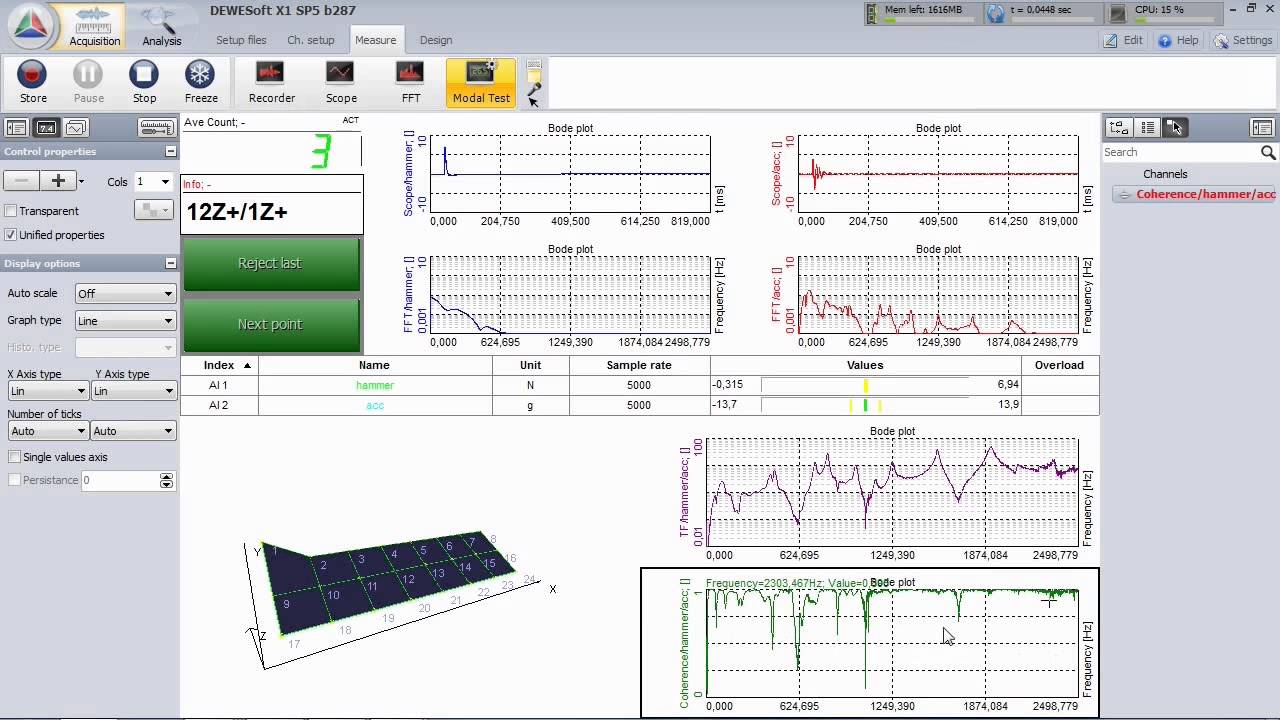

Cm3144 En Frf Measurement How To Capture Data Pdf Accelerometer A value of 1 at a particular frequency indicates that the frf amplitude and phase are very repeatable from measurement to measurement. a value of 0 indicates that opposite – the measurements are not repeatable, which is a possible “warning flag” that there is an error in the measurement setup. The frf taking data screen shows frequency, magnitude, phase, and q factor (where appropriate) at the cursor position. the frf measurement can be seen on the top section of the screen and the phase on the bottom.
Frf Measurement Pdf Frf is one of the auto measurement types of a digital oscilloscope located in the time domain (“delay” menu item) which is used for the measurement of the time delay between the first rising edge of channel 1 and the first falling edge of channel 2. The spider is capable of measuring and displaying hundreds of frf signals simultaneously. users can manually create a list of frfs by constantly changing the excitation and response channels to generate all possible combinations of frf signals. Master frequency response function (frf) analysis with our comprehensive guide. learn theory, measurement techniques, modal analysis applications & examples. Ponse function is the most important measurement to be made. when estimating frequency response functions, a measurement model is needed that will allow the frequency response function to be estimated from meas.
Frf Measurement Results Download Table Master frequency response function (frf) analysis with our comprehensive guide. learn theory, measurement techniques, modal analysis applications & examples. Ponse function is the most important measurement to be made. when estimating frequency response functions, a measurement model is needed that will allow the frequency response function to be estimated from meas. The frequency response function (frf) is the bread and butter of every person involved in system dynamics. the frf function is simply the ratio of the system’s output response due to an applied excitation. engineers use frfs to measure and characterize a structure’s dynamic behavior. Okay, let's break down the key components of a frequency response function (frf) measurement system and the calibration requirements for each. frf measurements are crucial for characterizing the dynamic behavior of systems – think mechanical structures, acoustic systems, electrical circuits, etc. To measure a frf, there are two procedures: first one is based on the user action: a single measurement is made by the user, then accepted or rejected, and a mean is computed with (eventual) previous measurements,. The second article introduces the frequency response function (frf), explaining the choice of test signals in their relation to the coherence function and the measurement of the frf in.
Frequency Response Function Of Force Measurement System A Frf Xx B The frequency response function (frf) is the bread and butter of every person involved in system dynamics. the frf function is simply the ratio of the system’s output response due to an applied excitation. engineers use frfs to measure and characterize a structure’s dynamic behavior. Okay, let's break down the key components of a frequency response function (frf) measurement system and the calibration requirements for each. frf measurements are crucial for characterizing the dynamic behavior of systems – think mechanical structures, acoustic systems, electrical circuits, etc. To measure a frf, there are two procedures: first one is based on the user action: a single measurement is made by the user, then accepted or rejected, and a mean is computed with (eventual) previous measurements,. The second article introduces the frequency response function (frf), explaining the choice of test signals in their relation to the coherence function and the measurement of the frf in.
