Prototype Assembly Part of the virtual prototype assembly (vpa) seminar series on the simcenter testing community: community.sw.siemens s article virtual prototype. As i mentioned before, the goal of this project was to predict structure borne road noise using virtual prototype assembly (vpa) by combining the subframe frfs with similar data for the body, suspensions, and tires.
Pcb Assembly Prototype Services First, a methodology for test based com ponent characterization for structureborne road noise is presented using a real world case study. then, a virtual prototype is assembled using test based tire wheel component models and cae based front and rear suspension, subframe and body component models. The simcenter testlab virtual prototype assembly (vpa) software is used to predict the noise or vibration performance of an assembled dynamic system. the user creates components based on structural frequency response functions (frfs) and load functions (spectrums, orders, waterfalls, etc). It is a powerful methodology allowing for a virtual prototype vehicle nvh prediction starting from independent sources and component models. the aim of this paper is to analyze the potential of the component based tpa in the context of road noise. Learn how you can virtually couple source components to receiver components to predict nvh performance. dive into the specifics of measuring impedance frfs of tire wheel source components and.

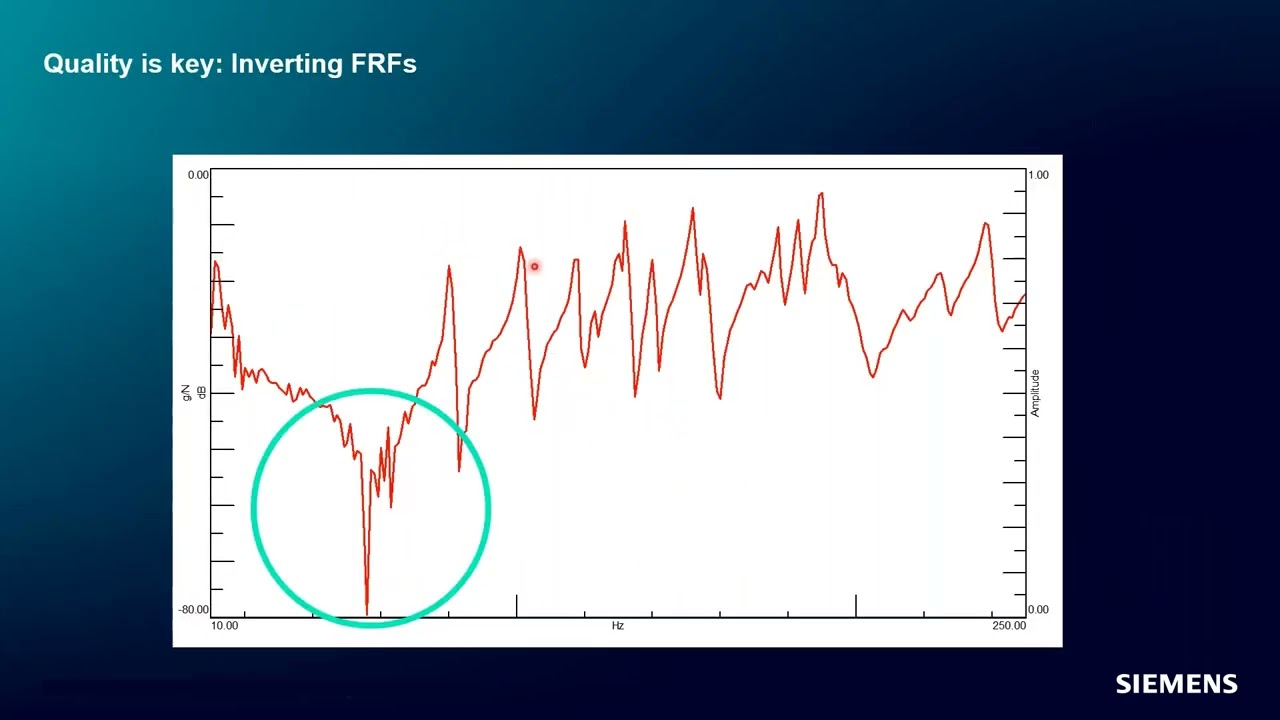

Final Assembly Of The Robot Virtual Prototype Download Scientific It is a powerful methodology allowing for a virtual prototype vehicle nvh prediction starting from independent sources and component models. the aim of this paper is to analyze the potential of the component based tpa in the context of road noise. Learn how you can virtually couple source components to receiver components to predict nvh performance. dive into the specifics of measuring impedance frfs of tire wheel source components and. Characterise the vibration source by first freely suspending it (e.g. hang from resilient bungees) and measure its free interface frf matrix y s c c, as defined in components. Following the framework of virtual prototype assembly, two approaches are considered. both originate from the concepts of in situ invariant load identification and dynamic substructuring, and require no physical vehicle prototype. This collection covers all aspects of virtual prototype assembly including background, theory, practice, measurements, and more. what is the acoustic quantity called q? what is a frequency response function (frf)? hands on! virtual prototype assembly and virtual point transformation . hands on!. The paper proposes a framework combining virtual prototype assembly with a parametric model order reduction technique for vehicle design optimization.
