Wound Core Weight Pdf Wound core weight free download as excel spreadsheet (.xls .xlsx), pdf file (.pdf), text file (.txt) or read online for free. this document provides calculations for the weight of the inner and outer core loops for a transformer. Insulating core from clamping system we assure that there is no circulating currents between them. circulating currents and weak contact can generate local hot spots and gassing.

1 Core Wounds Worksheet Pdf This paper analyzes a novel configuration of transformer core, called octagonal wound core (owc), and shows the minimization of the excitation current and the reduction of the eddy current. The paper is organised as follows: section ii describes the geometrical characteristics of the examined wound core transformers, while section iii provides an overview of the existing transformer design methodology. For winding core transformers with small or medium capacities, complete sets of special equipment and rich technical experience have been provided for silicon steel sheet rough shape cutting, winding, and annealing of formed cores. To find the weight of a given toroidal core size, determine the core volume in cubic inches from: volume = .75(o.d. i.d.)(o.d. i.d.)(ht) where the bare core inside diameter, outside diameter, and height are in inches.

Wound Dressing Types And Applications Pdf Wound Clinical Medicine For winding core transformers with small or medium capacities, complete sets of special equipment and rich technical experience have been provided for silicon steel sheet rough shape cutting, winding, and annealing of formed cores. To find the weight of a given toroidal core size, determine the core volume in cubic inches from: volume = .75(o.d. i.d.)(o.d. i.d.)(ht) where the bare core inside diameter, outside diameter, and height are in inches. Wound cores are popular in the distribution transformer industry, especially in single phase units where transformers no load losses close to the intrinsic loss of the steel are desired. Continuously wound toroidal cores can be supplied for use in the manufacture of current transformers (cts), or small power transformers. typically, such cores are manufactured from grain oriented steel and fully stress relief annealed. The material’s low ac losses result in excellent efficiency, and the option of durable cases available in polyester (<130°c) and rynite polyester (<155°c) makes cores suitable for winding with thick wire. Researchers analyzed 1950 data sets, using k fold cross validation for robust model evaluation. transformer capacity ranged from 25 to 2500 kva, with core weights between 70 kg and 1850 kg. svm outperforms traditional loss curve methods, but caution is advised for tighter design margins.

Understanding Core Emotional Wounds Our Emotional Wounds Shape How We Wound cores are popular in the distribution transformer industry, especially in single phase units where transformers no load losses close to the intrinsic loss of the steel are desired. Continuously wound toroidal cores can be supplied for use in the manufacture of current transformers (cts), or small power transformers. typically, such cores are manufactured from grain oriented steel and fully stress relief annealed. The material’s low ac losses result in excellent efficiency, and the option of durable cases available in polyester (<130°c) and rynite polyester (<155°c) makes cores suitable for winding with thick wire. Researchers analyzed 1950 data sets, using k fold cross validation for robust model evaluation. transformer capacity ranged from 25 to 2500 kva, with core weights between 70 kg and 1850 kg. svm outperforms traditional loss curve methods, but caution is advised for tighter design margins.

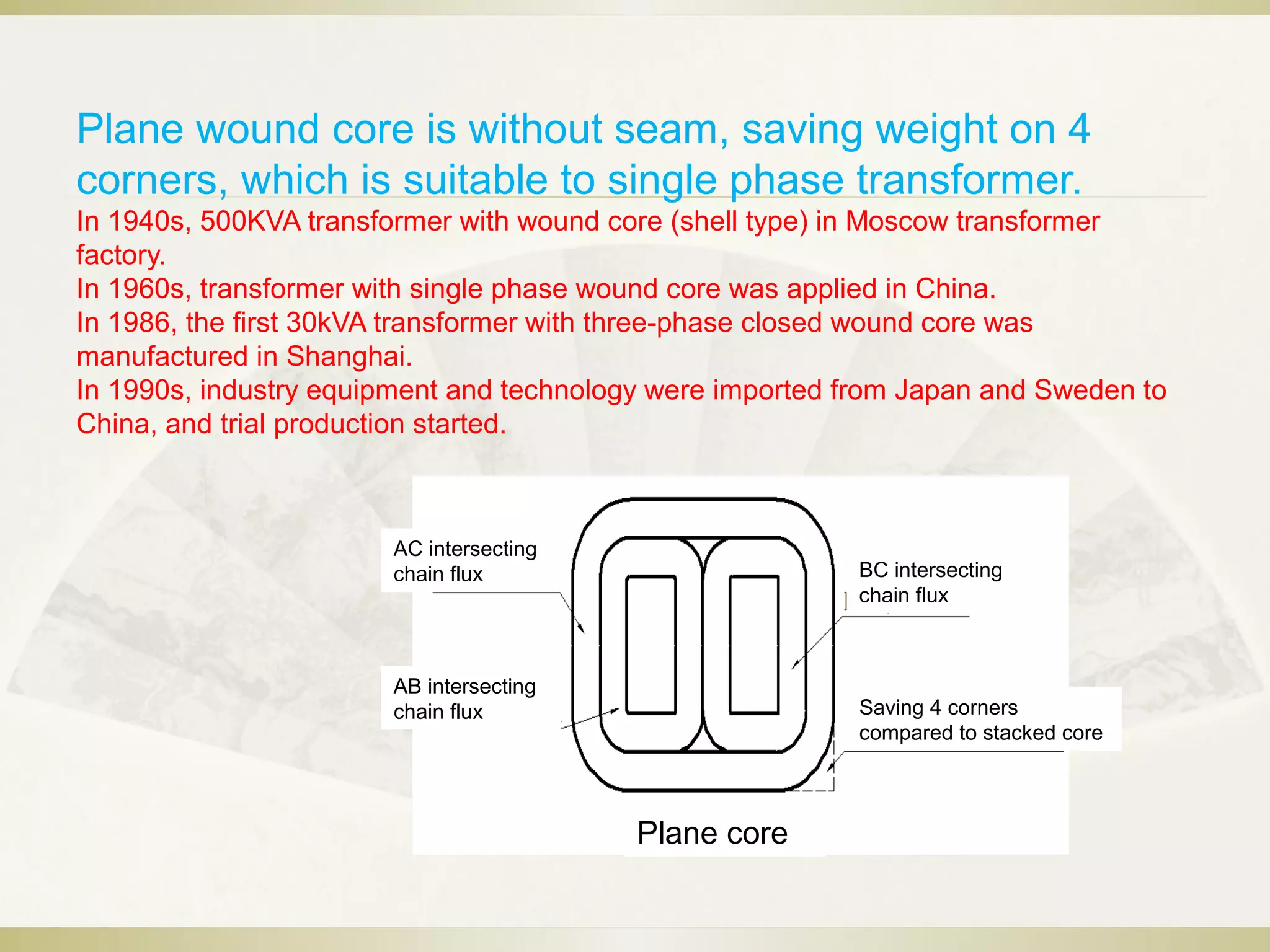

Transformer With 3d Wound Core Ppt The material’s low ac losses result in excellent efficiency, and the option of durable cases available in polyester (<130°c) and rynite polyester (<155°c) makes cores suitable for winding with thick wire. Researchers analyzed 1950 data sets, using k fold cross validation for robust model evaluation. transformer capacity ranged from 25 to 2500 kva, with core weights between 70 kg and 1850 kg. svm outperforms traditional loss curve methods, but caution is advised for tighter design margins.
