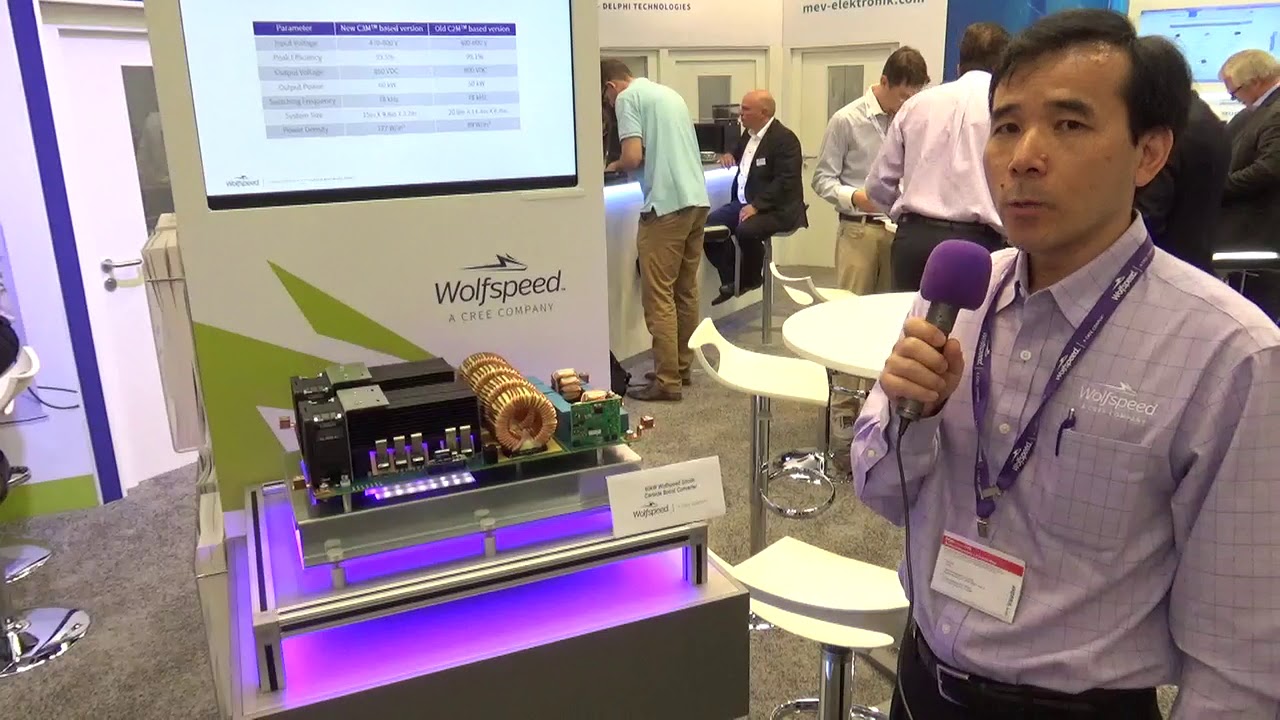

Video Wolfspeed Describes A 60kw Boost Converter Using Sic Mosfets Wolfspeed's crd 60dd12n demonstrates our 1200 v; 75 mΩ c3m™ silicon carbide (sic) mosfet and its parallel operation in a 60 kw interleaved boost converter, targeting high voltage and high power density applications such as solar power generation. In this video john shaw from wolfspeed describes a 60kw boost converter using their latest silicon carbide sic mosfets.

Sic Mosfets Boost Traction Inverter Design To 180kw For these solar energy systems, wolfspeed has introduced the crd 60dd12n, 60kw interleaved boost converter reference design based on cree's c3mtm 1200v, 75mΩ sic mosfet which comes in a to 247 4 package with a kelvin source availability. In this video john shaw from wolfspeed describes a 60kw boost converter using their latest silicon carbide sic mosfets. the demonstrator has a four channel interleaved design, and takes advantage of the higher performance and switching speed of the new devices. Performance of cree’s crd 60dd12n, 60 kw interleaved boost converter demo board can be evaluated by the analysis of thermal measurements as well. following thermal images indicate that under each condition, mosfets, diodes and the boost inductor were operating well below their thermal limits. The document discusses the design challenges and considerations for wolfspeed's 60kw llc converter, focusing on specifications, topology selection, power component selection, and magnetics design.

Sic Mosfets Boost Traction Inverter Design To 180kw Performance of cree’s crd 60dd12n, 60 kw interleaved boost converter demo board can be evaluated by the analysis of thermal measurements as well. following thermal images indicate that under each condition, mosfets, diodes and the boost inductor were operating well below their thermal limits. The document discusses the design challenges and considerations for wolfspeed's 60kw llc converter, focusing on specifications, topology selection, power component selection, and magnetics design. Crd 60dd12n is a 60kw interleaved boost converter reference design based on wolfspeed’s c3mtm 1200v, 75 mohm sic mosfet which comes in a to 247 4 package with a kelvin source availability. Both the simulation and test results show very good voltage balance. thanks to the low power loss of wolfspeed c3m sic mosfet, with the proposed solution, with proper pcb layout, all the design targets are achieved. Crd 60dd12n is a 60kw interleaved boost converter reference design based on wolfspeed’s c3m tm 1200v, 75 mohm sic mosfet which comes in a to 247 4 package with a kelvin source availability. Download intelligent pcb design files for the wolfspeed crd 60dd12n 60 kw interleaved boost converter reference design. available in multiple cad formats such as: orcad, altium, eagle, and more.

Sic Mosfets C3m邃 In Toll Package Wolfspeed Mouser Crd 60dd12n is a 60kw interleaved boost converter reference design based on wolfspeed’s c3mtm 1200v, 75 mohm sic mosfet which comes in a to 247 4 package with a kelvin source availability. Both the simulation and test results show very good voltage balance. thanks to the low power loss of wolfspeed c3m sic mosfet, with the proposed solution, with proper pcb layout, all the design targets are achieved. Crd 60dd12n is a 60kw interleaved boost converter reference design based on wolfspeed’s c3m tm 1200v, 75 mohm sic mosfet which comes in a to 247 4 package with a kelvin source availability. Download intelligent pcb design files for the wolfspeed crd 60dd12n 60 kw interleaved boost converter reference design. available in multiple cad formats such as: orcad, altium, eagle, and more.
