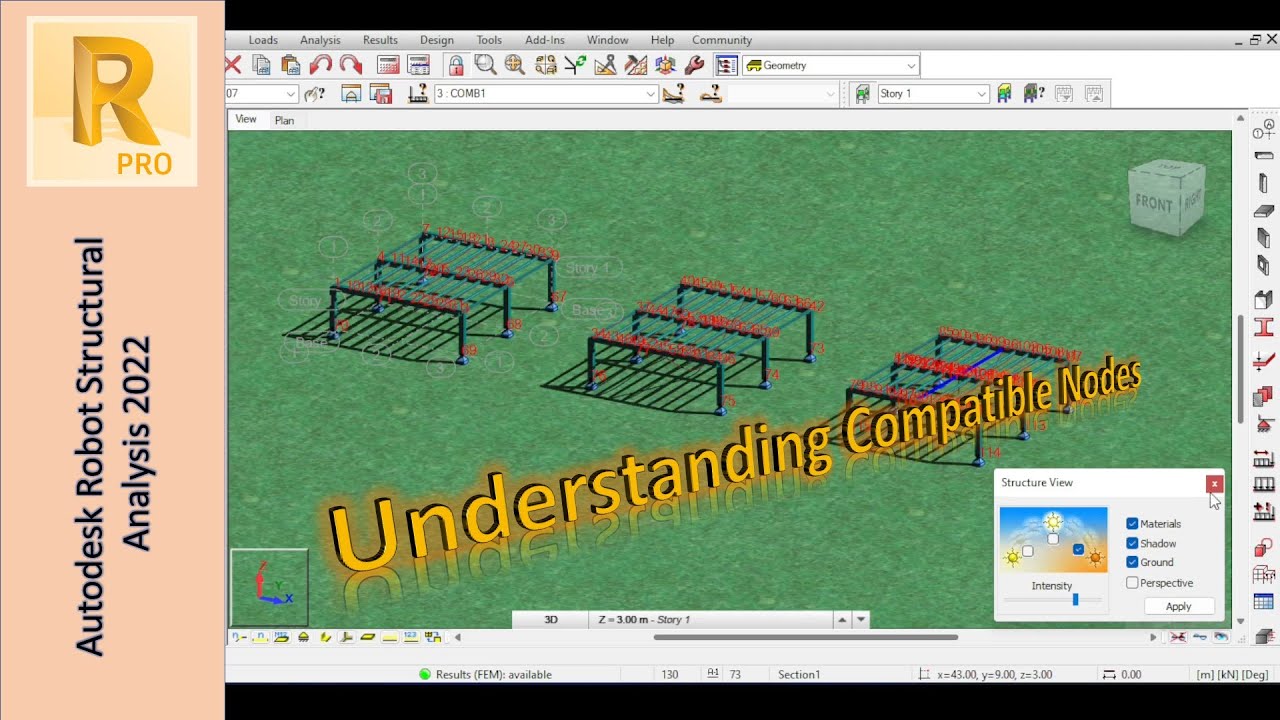

Compatible Nodes Autodesk Community In the “compatible nodes” dialog box, click on “new” to create a new “compatible nodes”. define a name and check the directions that need to be blocked. apply the “compatible nodes” at the intersection of bars on an existing node. mind that the bars at this intersection must be physically divided. Description: in this video, we are going to discuss compatible nodes in autodesk robot, trying to understand what such nodes mean as well as the finite element intricacies behind such.
Solved Compatible Nodes Autodesk Community The compatible node number is the first free node number in the current structure. if no selection was made before opening the compatible nodes, position the cursor in the active selection field. For bar structures with intersecting bars, you can get the same values of displacement for bars at their intersection point. to achieve this, use the compatible nodes option. the number of nodes with identical coordinates must be the same as the number of bars. each node belongs to a different bar. Double click warning message "defined compatible node is an isolated node e.g. it does not belong to a member" in calculation messages dialog to select isolated compatible node. Compatible nodes definition of compatible nodes definition of a new type of compatibility non linear compatibility type compatible nodes definition example parent topic: additional elements of a structure model.
Solved Compatible Nodes Autodesk Community Double click warning message "defined compatible node is an isolated node e.g. it does not belong to a member" in calculation messages dialog to select isolated compatible node. Compatible nodes definition of compatible nodes definition of a new type of compatibility non linear compatibility type compatible nodes definition example parent topic: additional elements of a structure model. Robot structural analysis forum welcome to autodesk’s robot structural analysis forums. share your knowledge, ask questions, and explore popular robot structural analysis topics. For bar structures with intersecting bars, you can get the same values of displacement for bars at their intersection point. to achieve this, use the compatible nodes option. the number of nodes with identical coordinates must be the same as the number of bars. each node belongs to a different bar. For the upper list the sections meet the class 4 criteria but they were calculated as class 3 as angles of class 4 are not supported in robot. for the bottom they meet the either class 1 or 2 criteria but they were calculated as class 3 following the indicated recommendations of british nad for ec3. Where are resources of knowledge about rigid link and compatible nodes in robot structural analysis? find the topic help describing additional elements of a structure model.
Solved Compatible Nodes Autodesk Community Robot structural analysis forum welcome to autodesk’s robot structural analysis forums. share your knowledge, ask questions, and explore popular robot structural analysis topics. For bar structures with intersecting bars, you can get the same values of displacement for bars at their intersection point. to achieve this, use the compatible nodes option. the number of nodes with identical coordinates must be the same as the number of bars. each node belongs to a different bar. For the upper list the sections meet the class 4 criteria but they were calculated as class 3 as angles of class 4 are not supported in robot. for the bottom they meet the either class 1 or 2 criteria but they were calculated as class 3 following the indicated recommendations of british nad for ec3. Where are resources of knowledge about rigid link and compatible nodes in robot structural analysis? find the topic help describing additional elements of a structure model.
Solved Compatible Nodes Autodesk Community For the upper list the sections meet the class 4 criteria but they were calculated as class 3 as angles of class 4 are not supported in robot. for the bottom they meet the either class 1 or 2 criteria but they were calculated as class 3 following the indicated recommendations of british nad for ec3. Where are resources of knowledge about rigid link and compatible nodes in robot structural analysis? find the topic help describing additional elements of a structure model.
