What Is Dimensioning And Its Types What Is Meant By Dimensioning Learn about the definition, elements, units, common features and methods of dimensioning in engineering drawings. find out the difference between aligned and unidirectional systems, and the types of dimensioning such as chain, parallel, combined, progressive, etc. This post contains the definition of dimensioning and a list of 7 types of dimensions that are commonly used in technical drawings. (featured image credit: pixabay .).
What Is Dimensioning And Its Types What Is Meant By Dimensioning Once the shape of a part is defined with an orthographic drawing (i.e., in projections), the size information is added in the form of dimensions. Various methods of dimensioning exist, including linear, angular, radial, diametral, and ordinate systems. each method serves a specific purpose, whether measuring straight distances, angles, circular features, or positioning features relative to a datum. There are two main dimensioning systems aligned and unidirectional. the aligned system places dimensions parallel to dimension lines, while the unidirectional system breaks dimension lines and reads dimensions from the bottom of drawings. This chapter will explore the different methods of dimensioning features and the dimensioning techniques that are used. when we start to explore drawing dimensions, it is essential to grasp some fundamental dimensioning rules and best practices that drafters should follow.

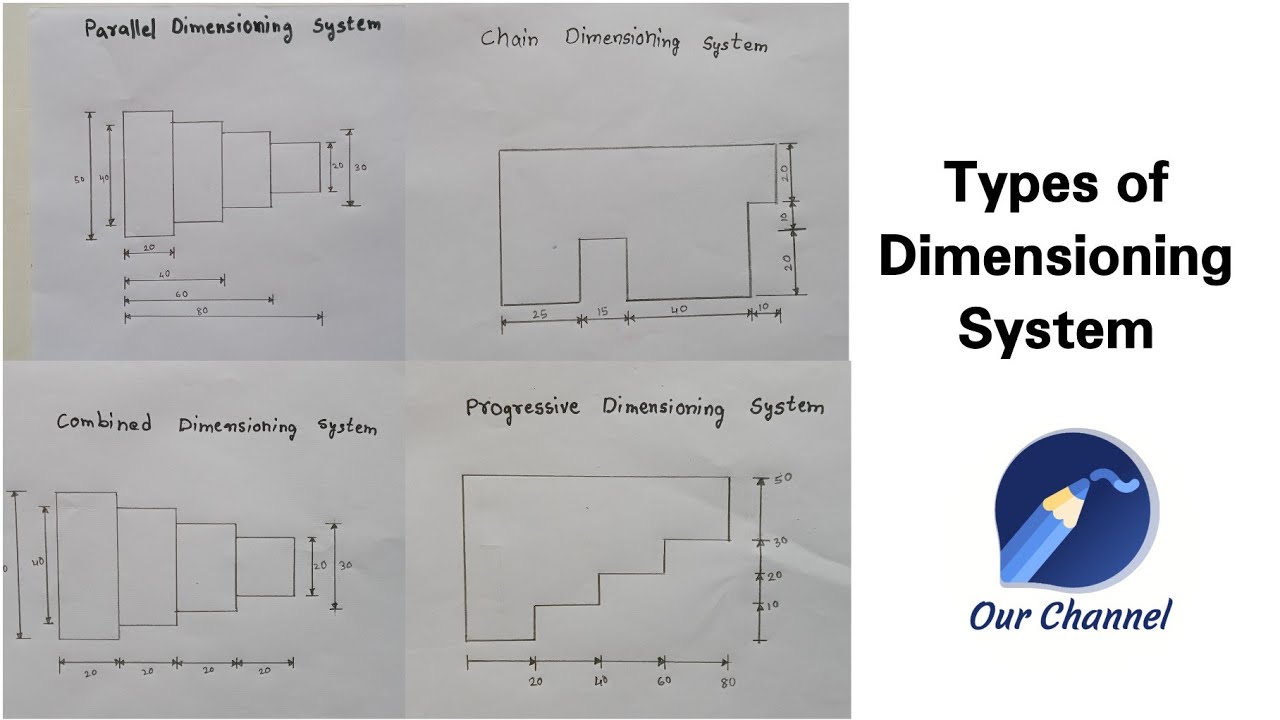

Types Of Dimensioning In Engineering Drawing Free Download On Clipartmag There are two main dimensioning systems aligned and unidirectional. the aligned system places dimensions parallel to dimension lines, while the unidirectional system breaks dimension lines and reads dimensions from the bottom of drawings. This chapter will explore the different methods of dimensioning features and the dimensioning techniques that are used. when we start to explore drawing dimensions, it is essential to grasp some fundamental dimensioning rules and best practices that drafters should follow. The document discusses four main types of dimensioning systems: 1) chain dimensioning where dimensions are placed directly adjacent without gaps, 2) parallel dimensioning where dimensions are measured from a common feature and shown parallel, 3) superimposed dimensioning which simplifies parallel dimensions by using a small circle to indicate. Learn about the types, principles, execution, and methods of dimensioning in engineering drawings. dimensioning are numerical values indicated graphically to define the size characteristics of a part or component. There are two types of dimensioning systems aligned system and unidirectional system. Learn what dimensioning is, how to measure the area or volume of an object, and the different types of dimensioning methods and systems. find out the basics, the order, and the advantages of dimensioning a drawing.
