Solution Two Port Network Two Port Network Parameters Z Parameters Y A simple explanation of z parameters (impedance parameters). learn what a z parameter is, how to find z parameters of a two port network, and solved example problems. 3) examples are provided to illustrate finding the z parameters for sample two port networks by applying kirchhoff's voltage law to the meshes in the equivalent circuits with one port open or shorted. the determined z parameters relate the terminal voltages and currents.
Solution Two Port Network Two Port Network Parameters Z Parameters Y The hybrid parameters of a two port network may be defined by expressing the voltage of input port v1 and current of output port i2 in terms of current of input port i1 and voltage of output port v2. The use of matlab for solving problems involving paral lel, series and cascaded two port networks is shown. example problems in volving both passive and active circuits will be solved using matlab. From above equations it is clear that z 11 and z 22 gives the relationship between voltages and currents at port 1 – 1′ and port 2 – 2′ respectively. such parameters are the driving point impedances. After reading this z parameter in two port network, you will understand the theory, how to determine z parameters, the condition of symmetry & reciprocity and applications.
Solution Two Port Network Two Port Network Parameters Z Parameters Y From above equations it is clear that z 11 and z 22 gives the relationship between voltages and currents at port 1 – 1′ and port 2 – 2′ respectively. such parameters are the driving point impedances. After reading this z parameter in two port network, you will understand the theory, how to determine z parameters, the condition of symmetry & reciprocity and applications. Find the z parameters (z11, z12, z21 z22. respectively) for the above network. q8. in a 2 port network, if y11 is the short circuit input admittance, then the y21 parameter represents: q9. the open circuit impedance matrix of the two port network shown in figure is q10. For any two port network, input voltage v1 and output voltage v2 can be expressed in terms of input current i1 and output current i2 respectively. it is also known as open circuit impedance parameter. Problem 2. determine the z parameters of the two port network in figure. views: 5,553 students updated on: feb 11, 2026. Using the definition of parameters. find 012v2 2r parameters of the to two port network shown 1 ion l y va in the big. below. 4r i2s ii ur i, 0 2r 0 v1 2n i 10v, ye .

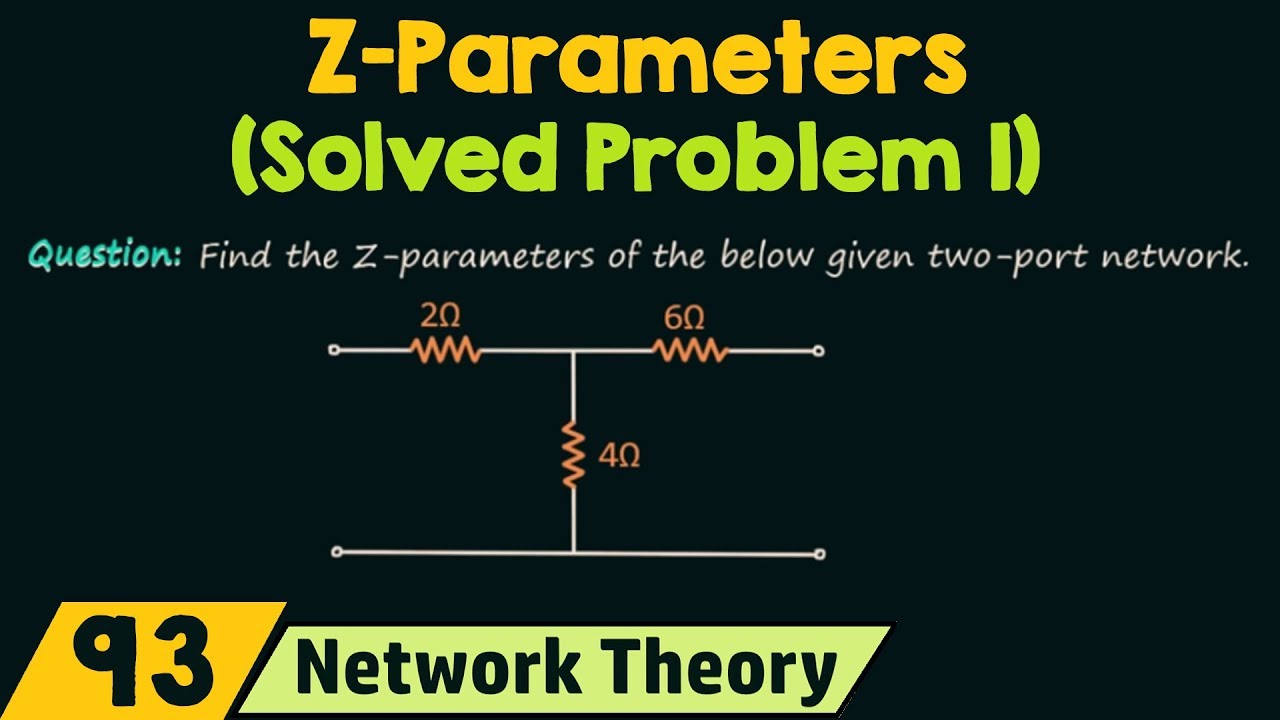

Two Port Network Z Parameters Solved Problem Video Lecture Network Find the z parameters (z11, z12, z21 z22. respectively) for the above network. q8. in a 2 port network, if y11 is the short circuit input admittance, then the y21 parameter represents: q9. the open circuit impedance matrix of the two port network shown in figure is q10. For any two port network, input voltage v1 and output voltage v2 can be expressed in terms of input current i1 and output current i2 respectively. it is also known as open circuit impedance parameter. Problem 2. determine the z parameters of the two port network in figure. views: 5,553 students updated on: feb 11, 2026. Using the definition of parameters. find 012v2 2r parameters of the to two port network shown 1 ion l y va in the big. below. 4r i2s ii ur i, 0 2r 0 v1 2n i 10v, ye .
Solved Find The Z Parameters For The Two Port Network In The Chegg Problem 2. determine the z parameters of the two port network in figure. views: 5,553 students updated on: feb 11, 2026. Using the definition of parameters. find 012v2 2r parameters of the to two port network shown 1 ion l y va in the big. below. 4r i2s ii ur i, 0 2r 0 v1 2n i 10v, ye .

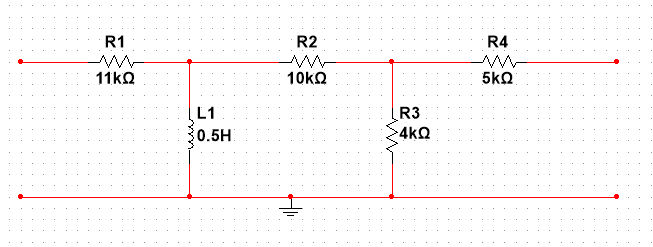

Solved Find The Z Parameters For The Two Port Network Shown Chegg
