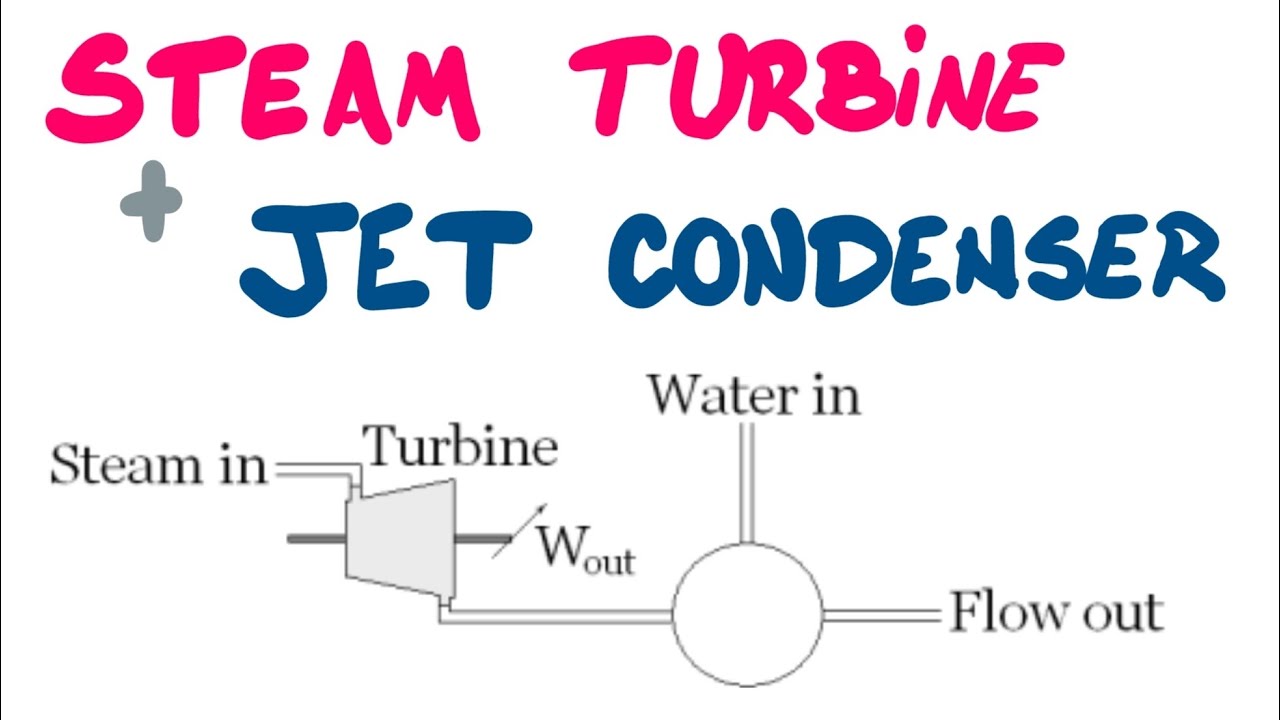

First Law Of Thermodynamics For An Open System Pdf Gas Turbine In today's video we have a combined system with a steam turbine and a jet condenser. we are slowly introducing more processes and combining them with one another. Because open systems are so varied, it is usually the best practice to formulate the first law for each individual case. all the energy terms entering the system are written down and set equal to all the energy terms leaving the system.
Reaction Turbine Thermodynamic Analysis Pdf Turbine Electricity Apply the first law of thermodynamics as the statement of the conservation of energy principle to control volumes. solve energy balance problems for common steady flow devices such as nozzles, compressors, turbines, throttling valves, mixing chambers, and heat exchangers. steady and unsteady flow process. The document also discusses mass and energy balance equations for open systems, particularly in relation to turbines and compressors, which convert energy from working fluids into mechanical energy or increase gas pressure. The turbines are considered open thermodynamic systems, since the mass can enter and leave the control volume of the turbines. often turbines are treated as steady flow devices, and they are analyzed based on that. System includes a compressor for raising the air pressure, a heat exchanger for cooling the air, and a nozzle for producing the high velocity. the heat exchanger uses liquid water to cool the air.
Thermodynamics Fundamentals Closed Open Systems Energy The turbines are considered open thermodynamic systems, since the mass can enter and leave the control volume of the turbines. often turbines are treated as steady flow devices, and they are analyzed based on that. System includes a compressor for raising the air pressure, a heat exchanger for cooling the air, and a nozzle for producing the high velocity. the heat exchanger uses liquid water to cool the air. Figure 5.2.1 is a schematic drawing of an open system with one inlet and one outlet. a control volume (c.v.), shown as the dash lined rectangle in figure 5.2.1, is selected for the analysis of the change of properties in the open system. You will also learn how to model these heat engines as thermodynamic cycles and how to apply the first law of thermodynamics to estimate thermal efficiency and work output as a function of pressures and temperatures at various points in the cycle. this is called ideal cycle analysis. In open systems, heat exchangers are employed to recover exhaust heat from turbine exhaust and offset some of the energy input that would otherwise be required in the combustor. Here we will extend the conservation of energy to systems that involve mass flow across their boundaries, control volumes. any arbitrary region in space can be selected as control volume. there are no concrete rules for the selection of control volumes.

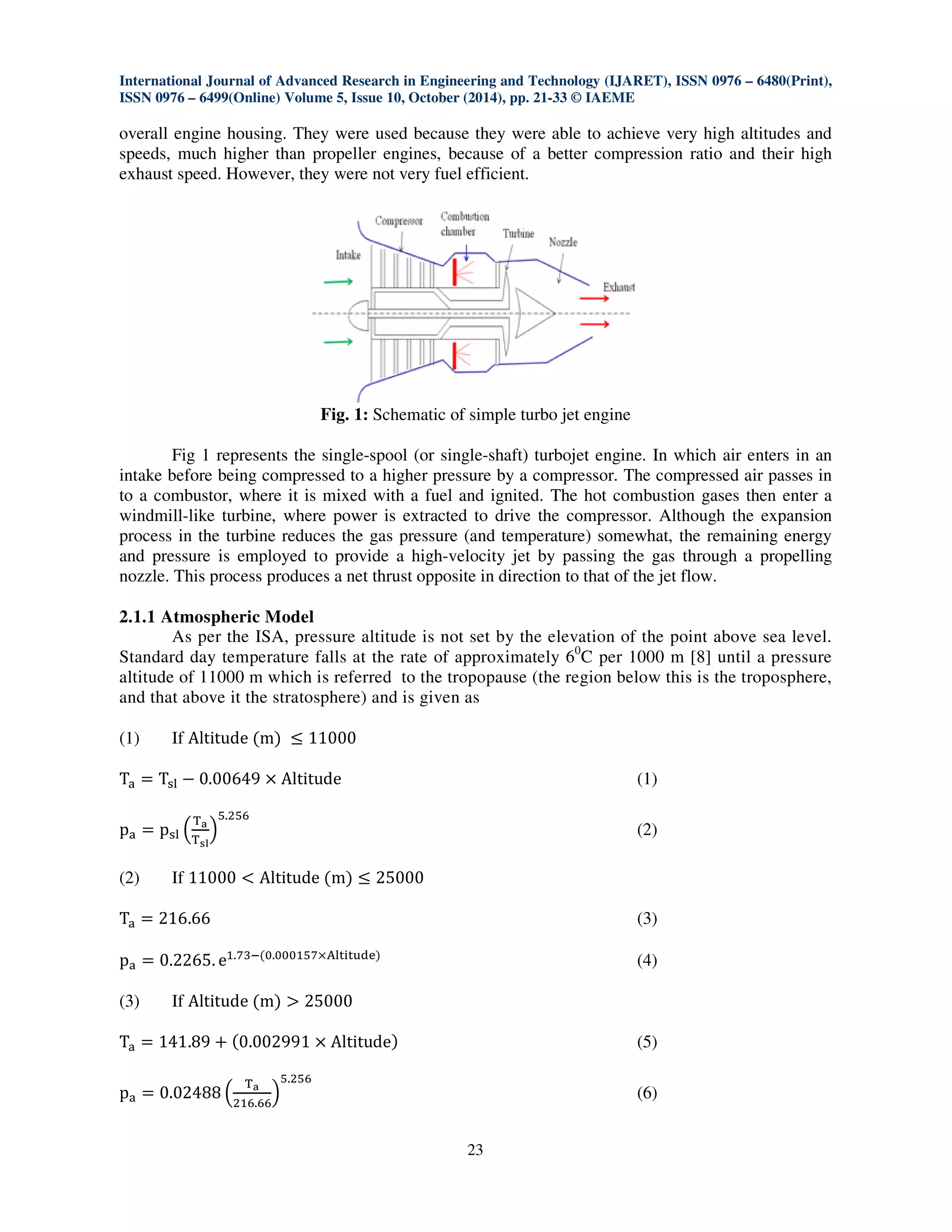

Thermal Analysis Of A Gas Turbine Cycle For A Turbojet Engine Pdf Figure 5.2.1 is a schematic drawing of an open system with one inlet and one outlet. a control volume (c.v.), shown as the dash lined rectangle in figure 5.2.1, is selected for the analysis of the change of properties in the open system. You will also learn how to model these heat engines as thermodynamic cycles and how to apply the first law of thermodynamics to estimate thermal efficiency and work output as a function of pressures and temperatures at various points in the cycle. this is called ideal cycle analysis. In open systems, heat exchangers are employed to recover exhaust heat from turbine exhaust and offset some of the energy input that would otherwise be required in the combustor. Here we will extend the conservation of energy to systems that involve mass flow across their boundaries, control volumes. any arbitrary region in space can be selected as control volume. there are no concrete rules for the selection of control volumes.

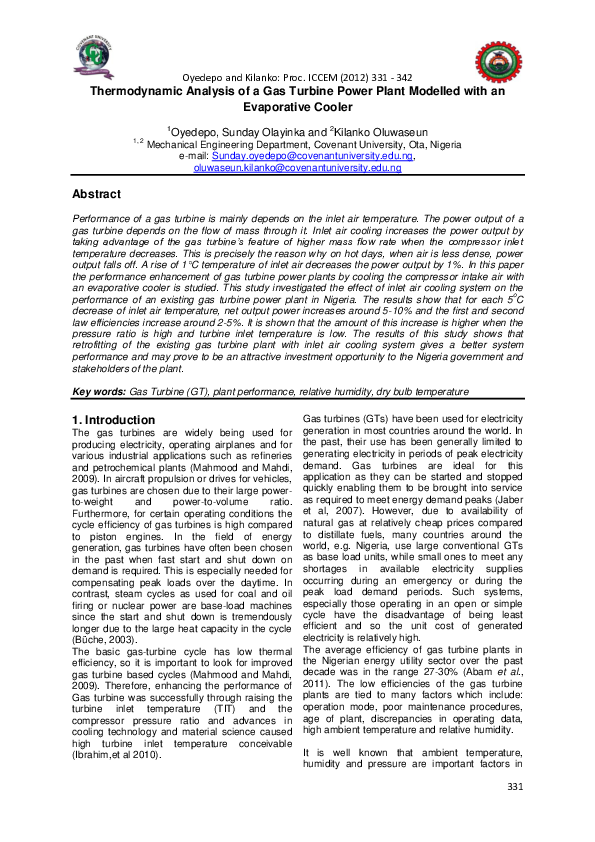

Pdf Thermodynamic Analysis Of A Gas Turbine Power Plant Modelled With In open systems, heat exchangers are employed to recover exhaust heat from turbine exhaust and offset some of the energy input that would otherwise be required in the combustor. Here we will extend the conservation of energy to systems that involve mass flow across their boundaries, control volumes. any arbitrary region in space can be selected as control volume. there are no concrete rules for the selection of control volumes.
