Transient Motor Starting Lab Sheet Pdf Electric Motor Electric This document discusses motor starting transients and protection methods. it begins by defining motor starting time and transient starting current. it then outlines several common motor starting methods: direct on line, star delta, auto transformer, rotor resistance, and electronic soft start. The transient motor starting analysis module (tms) is a state of the art time simulation program to analyze all aspects of motor starting problems accurately. tms models up to 1500 motors dynamically throughout starting, stopping or reacting to load changes.

Transient Motor Starting Powerstudies Certain digital computer programs can accurately model generator transient behaviour and exciter regulator response under motor starting conditions, providing meaningful results and conclusions. This article considers the transient effects of motor starting on the system voltage. usually only the largest motor on a bus or system is modelled, but the calculation can in principle be used for any motor. The transient motor starting study (tms), sometimes called a transient stability analysis (tsa), is an essential engineering tool when considering the involvement of motor dynamics in decision making. Motor acceleration software calculates motor acceleration time and the voltage impact of starting individual motors or a series of motors on electrical power systems.

Motor Starting Transient Pdf Electric Motor Electrical Equipment The transient motor starting study (tms), sometimes called a transient stability analysis (tsa), is an essential engineering tool when considering the involvement of motor dynamics in decision making. Motor acceleration software calculates motor acceleration time and the voltage impact of starting individual motors or a series of motors on electrical power systems. The motor starting toolbox enables quick assessment of various motor starting scenarios and their impact on the system and reports commonly needed performance indicators like voltage drop before during after starting, starting time, grid loading, etc. The transient motor starting (tms) feature of easypower enables you simulate various power system events like motor starting, device switching, and bus faulting. it supports calculating voltage, current, speed, torque, and power for motors at various locations using easypower ’s dynamic models. Usefulness of analysis of transient operating conditions of a drive, e.g. starting, braking, load changing, speed changing, etc. is already explained. a rigorous analysis of transient operation of an induction motor drive, can be done only by the d q axis model involving long calculations. We will model and simulate the motors starting on your distribution system. we will calculate flicker and voltage drop due to motor inrush current. we will also determine the best method to start the motor with minimal impact to the rest of the distribution system.

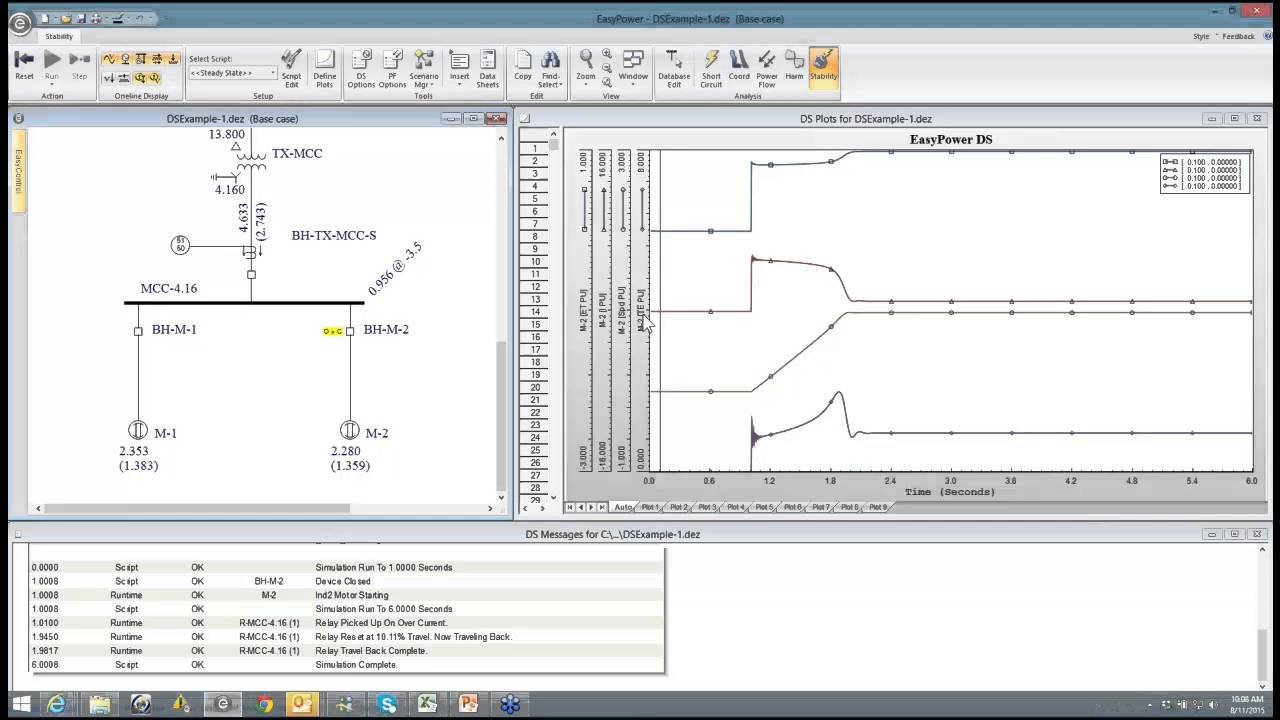

Transient Motor Starting Tms The motor starting toolbox enables quick assessment of various motor starting scenarios and their impact on the system and reports commonly needed performance indicators like voltage drop before during after starting, starting time, grid loading, etc. The transient motor starting (tms) feature of easypower enables you simulate various power system events like motor starting, device switching, and bus faulting. it supports calculating voltage, current, speed, torque, and power for motors at various locations using easypower ’s dynamic models. Usefulness of analysis of transient operating conditions of a drive, e.g. starting, braking, load changing, speed changing, etc. is already explained. a rigorous analysis of transient operation of an induction motor drive, can be done only by the d q axis model involving long calculations. We will model and simulate the motors starting on your distribution system. we will calculate flicker and voltage drop due to motor inrush current. we will also determine the best method to start the motor with minimal impact to the rest of the distribution system.
