Tractor Top Link And Draft Control Most tractors give you two modes for managing the rear hitch: draft control and position control. they serve different purposes, and using the wrong one for the job wastes fuel and can damage equipment or soil. Learn the precise settings for draft control to prevent wheel slip and ensure consistent implement depth.

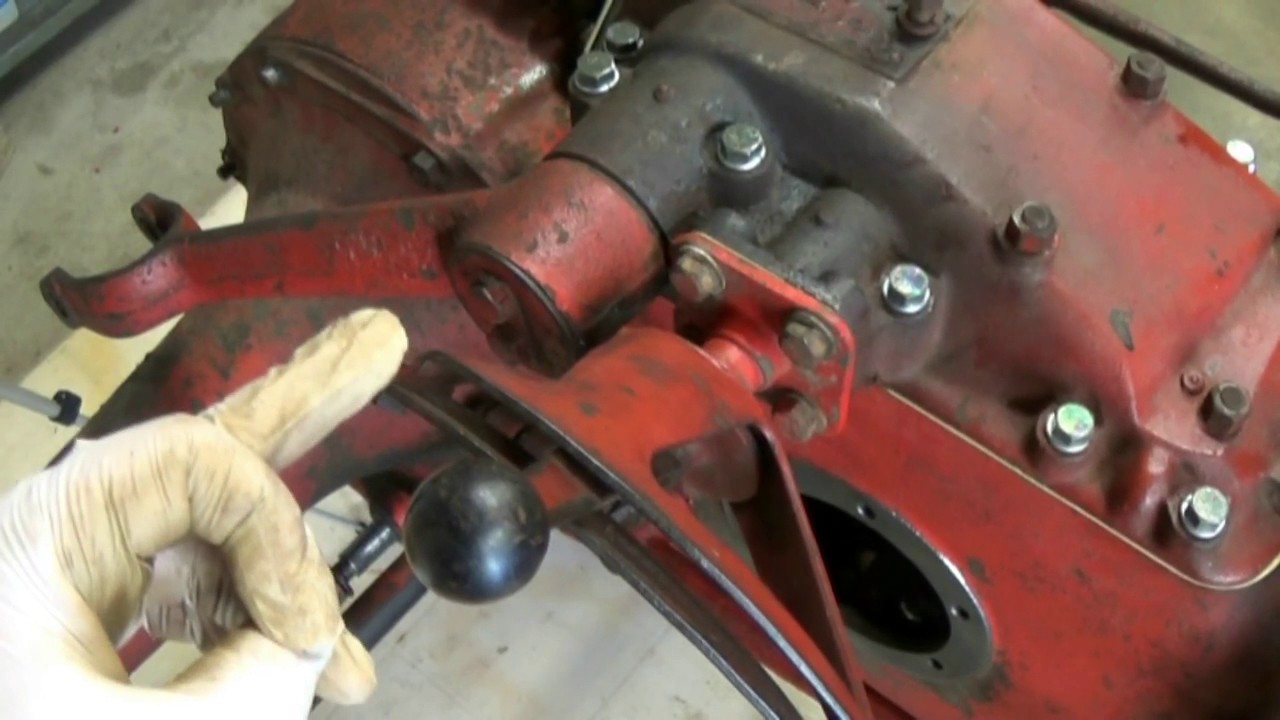

Draft Control On Tractor Modelsjord These three point hitch linkages are controlled by position control lever and draft control lever for mechanical based hydraulics tractors. ehh systems are also now a days available which. Discover how draft control works on a tractor, its importance, best practices, and safety tips for efficient operation. And to just make it more complex; most tractors with draft control also have multiple top link and sensing holes for the pin. the location of the pin determines how sensitive the draft will be or to lock it out entirely. Bottom line, if you're using a ground engaging implement and the tractor has draft control, it's pretty critical to get the top link in the correct hole as indicated in the owner's manual.
Top Link Draft Load Setting For 3032e My Tractor Forum And to just make it more complex; most tractors with draft control also have multiple top link and sensing holes for the pin. the location of the pin determines how sensitive the draft will be or to lock it out entirely. Bottom line, if you're using a ground engaging implement and the tractor has draft control, it's pretty critical to get the top link in the correct hole as indicated in the owner's manual. This document provides specifications, component descriptions, and operation details for the electronic draft control system on tractors. it includes: specifications for lift capacity, valve settings, and hydraulic lift cover components. Firstly, the draft load is distributed to lower links and upper link. then, the force that exerted to the lower link hitch point is calculated with the help of the lower link. the free body diagram of the distributed mechanism and lower link are shown in figure. In most draft control systems, the top link of the three point hitch acts as the primary sensor. as the implement (e.g., a plow) encounters harder soil, it tries to rotate around the lower hitch points, creating a compressive force on the top link. The customer is able to determine the specific draft control settings for their tractor after using interface’s custom solution wireless load pin and wireless telemetry system products.
What Is Draft Control On A Tractor This document provides specifications, component descriptions, and operation details for the electronic draft control system on tractors. it includes: specifications for lift capacity, valve settings, and hydraulic lift cover components. Firstly, the draft load is distributed to lower links and upper link. then, the force that exerted to the lower link hitch point is calculated with the help of the lower link. the free body diagram of the distributed mechanism and lower link are shown in figure. In most draft control systems, the top link of the three point hitch acts as the primary sensor. as the implement (e.g., a plow) encounters harder soil, it tries to rotate around the lower hitch points, creating a compressive force on the top link. The customer is able to determine the specific draft control settings for their tractor after using interface’s custom solution wireless load pin and wireless telemetry system products.
