3 Phase Fully Controlled Rectifier Pdf Rectifier Power Physics There are 3 steps to solve this one. not the question you’re looking for? post any question and get expert help quickly. Three phase fully controlled rectifier control (6 pulse) fed separately excited dc motor drive is shown in fig. 5.32 (a). thyristors are fired in the sequence of their numbers with a phase difference of 60° by gate pulses of 120°duration.
Three Phase Fully Controlled Rectifier Fed Chegg The three phase full wave controlled rectifier provides flexibility in control and regulation of the output dc voltage. by adjusting the firing angles of the rectifier devices, the average output voltage can be controlled, allowing for precise regulation and adjustment of the dc power. Lecture notes on three phase controlled rectifiers for dc motor drives, covering operation, speed torque, and characteristics. electrical engineering. Three phase controlled rectifiers are used in large power dc motor drives. three phase controlled rectifier gives more number of voltage per cycle of supply frequency. Three phase full converter is a fully controlled bridge controlled rectifier using six thyristors connected in the form of a full wave bridge configuration. all the six thyristors are controlled switches which are turned on at a appropriate times by applying suitable gate trigger signals.
Fig 3 Shown The Three Phase Fully Controlled Bridge Chegg Three phase controlled rectifiers are used in large power dc motor drives. three phase controlled rectifier gives more number of voltage per cycle of supply frequency. Three phase full converter is a fully controlled bridge controlled rectifier using six thyristors connected in the form of a full wave bridge configuration. all the six thyristors are controlled switches which are turned on at a appropriate times by applying suitable gate trigger signals. The document discusses the operation of a three phase fully controlled rectifier fed separately excited motor drive, detailing the firing sequence of thyristors and the modes of operation during motoring and braking. The controlled rectifier can provide controllable out put dc voltage in a single unit instead of a three phase autotransformer and a diode bridge rectifier. the controlled rectifier is obtained by replacing the diodes of the uncontrolled rectifier with thyristors. Assuming continuous conduction, the average dc output voltage can be evaluated from the general p phase formula: eloping both positive and negative polarity dc output voltage. for firing angles, the converter operates in quadrant 1 (givin nt 4 (giving negative output power, i.e., inverter operation). operation in e. Q4 a three phase full wave fully controlled rectifier supplies a highly inductive load with r = 10. the supply is a three phase star connected with 400 v rms. calculate: (a) the load current when the firing angle = 45°.

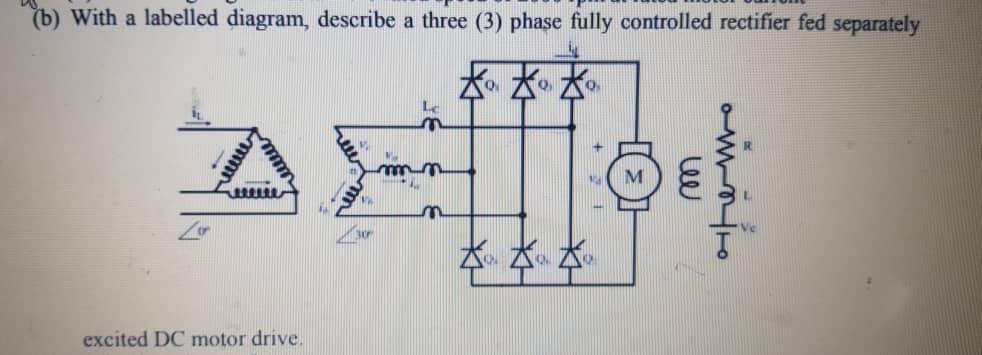

Solved B With A Labelled Diagram Describe A Three 3 Chegg The document discusses the operation of a three phase fully controlled rectifier fed separately excited motor drive, detailing the firing sequence of thyristors and the modes of operation during motoring and braking. The controlled rectifier can provide controllable out put dc voltage in a single unit instead of a three phase autotransformer and a diode bridge rectifier. the controlled rectifier is obtained by replacing the diodes of the uncontrolled rectifier with thyristors. Assuming continuous conduction, the average dc output voltage can be evaluated from the general p phase formula: eloping both positive and negative polarity dc output voltage. for firing angles, the converter operates in quadrant 1 (givin nt 4 (giving negative output power, i.e., inverter operation). operation in e. Q4 a three phase full wave fully controlled rectifier supplies a highly inductive load with r = 10. the supply is a three phase star connected with 400 v rms. calculate: (a) the load current when the firing angle = 45°.
Solved A A Three Phase Fully Controlled Rectifier Supplied Chegg Assuming continuous conduction, the average dc output voltage can be evaluated from the general p phase formula: eloping both positive and negative polarity dc output voltage. for firing angles, the converter operates in quadrant 1 (givin nt 4 (giving negative output power, i.e., inverter operation). operation in e. Q4 a three phase full wave fully controlled rectifier supplies a highly inductive load with r = 10. the supply is a three phase star connected with 400 v rms. calculate: (a) the load current when the firing angle = 45°.
