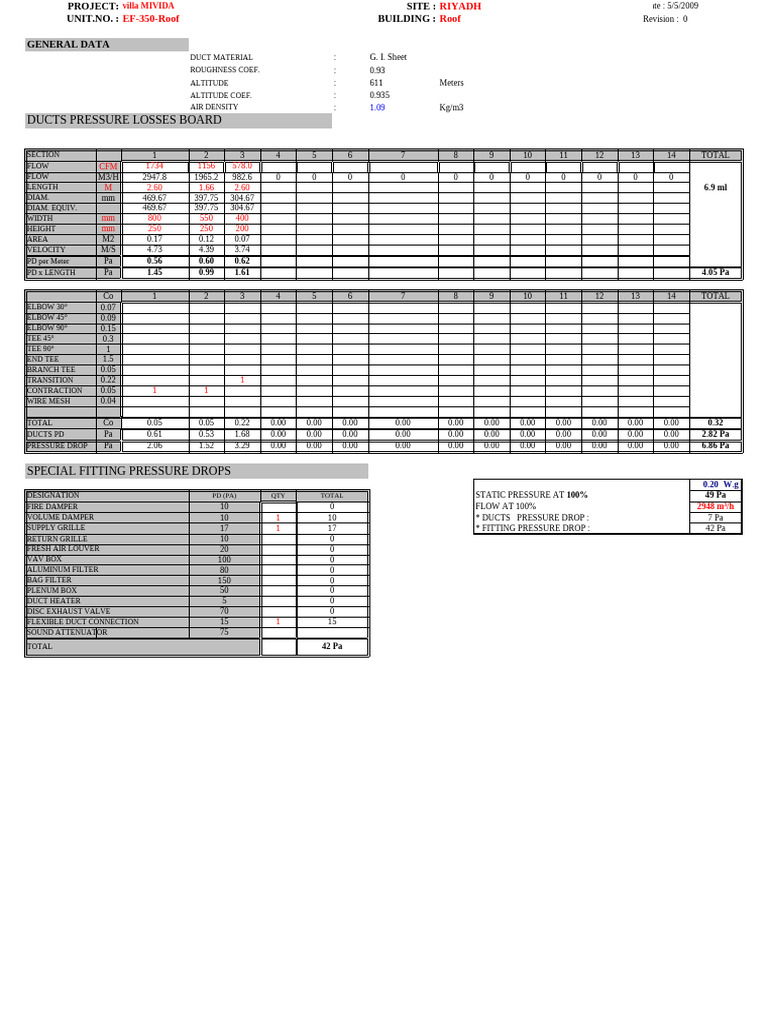

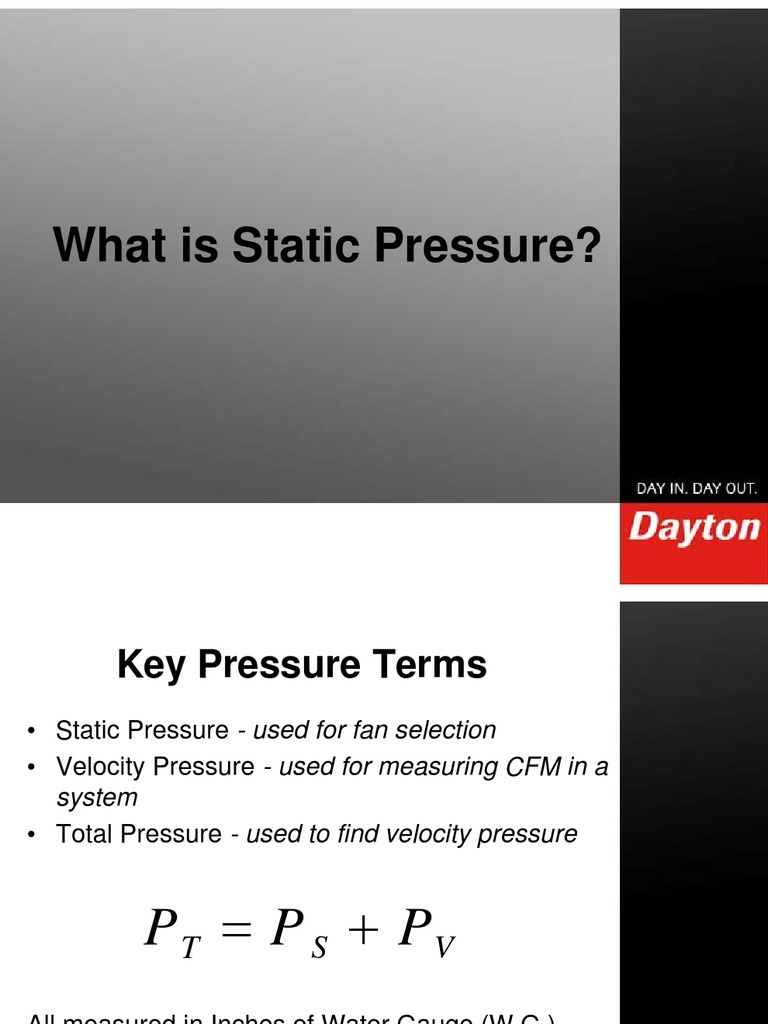

What Is Static Pressure Pdf In a fluid stream far from a wall, or where streamlines are curved, accurate static pressure measurements can be made by careful use of a static pressure probe, shown in the figure. Static pressure calculations free download as pdf file (.pdf), text file (.txt) or view presentation slides online. the document discusses the calculation of static pressure in an hvac duct network. it defines internal and external static pressure and explains how they are categorized.
Static Pressure Pdf For a static fluid, the shear stress is zero and the only stress is the normal stress, i.e., pressure p. recall that p is a scalar, which when in contact with a solid surface exerts a normal force towards the surface. • although we have answered the question of how the pressure at a point varies with direction, we are now faced with an equally important question how does the pressure in a fluid in which there are no shearing stresses vary from point to point?. Draw a free body diagram of a (di↵erentially) small piece of fluid, with width, height, and depth of dx, dy, and dz, respectively, under static conditions. note that only pressure forces and weight will act on the fluid element. As air is filling the duct we must generate adequate static pressure to ensure all the branch ducts have enough static pressure to convert back to velocity pressure at the outlets.
Fan Static Pressure Pdf Duct Flow Continuum Mechanics Draw a free body diagram of a (di↵erentially) small piece of fluid, with width, height, and depth of dx, dy, and dz, respectively, under static conditions. note that only pressure forces and weight will act on the fluid element. As air is filling the duct we must generate adequate static pressure to ensure all the branch ducts have enough static pressure to convert back to velocity pressure at the outlets. For fluids in motion the term static pressure is still applicable (in particular with regard to external flows), and refers strictly to the pressure in the fluid far upstream (freestream) of any object immersed into it. The actual pressure at a given position is called the absolute pressure, and it is measured relative to absolute vacuum. the measure pressure may be either lower (called vacuum pressure) or higher (gage pressure) than the local atmosphere. Pressure at any point is the same in all directions. this is known as pascal's law and applies to fluids at rest. in the above figure we can see an element of fluid which is a vertical column of constant cross sectional area, a, surrounded by the same fluid of mass density . Most pressures used in common types of engineering problems are gauge pressures. however, when vapor pressure is a consideration, absolute pressures must be examined.
Fan External Static Pressure Pdf Duct Flow Pressure For fluids in motion the term static pressure is still applicable (in particular with regard to external flows), and refers strictly to the pressure in the fluid far upstream (freestream) of any object immersed into it. The actual pressure at a given position is called the absolute pressure, and it is measured relative to absolute vacuum. the measure pressure may be either lower (called vacuum pressure) or higher (gage pressure) than the local atmosphere. Pressure at any point is the same in all directions. this is known as pascal's law and applies to fluids at rest. in the above figure we can see an element of fluid which is a vertical column of constant cross sectional area, a, surrounded by the same fluid of mass density . Most pressures used in common types of engineering problems are gauge pressures. however, when vapor pressure is a consideration, absolute pressures must be examined.
2 0 Static Pressure Pdf Pressure Pressure Measurement Pressure at any point is the same in all directions. this is known as pascal's law and applies to fluids at rest. in the above figure we can see an element of fluid which is a vertical column of constant cross sectional area, a, surrounded by the same fluid of mass density . Most pressures used in common types of engineering problems are gauge pressures. however, when vapor pressure is a consideration, absolute pressures must be examined.

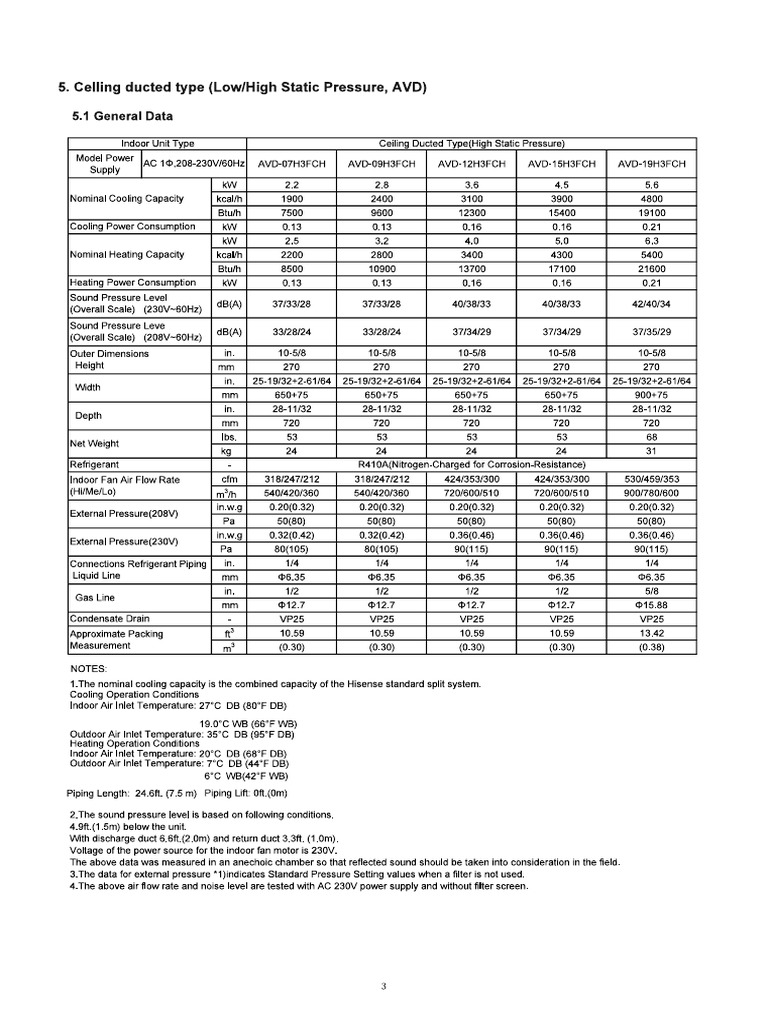

New Ceiling Ducted Type High Static Pressure Pdf
