Solved Supplemental Plot And Contour The Bedding Data Chegg Our expert help has broken down your problem into an easy to learn solution you can count on. question: supplemental: plot and contour the bedding data (poles to planes data) by hand, using the schmidt contouring method. describe the pole pattern. By following these steps and using the schmidt contouring method, you can plot and contour the bedding data provided and gain insights into the structural geology of the area.

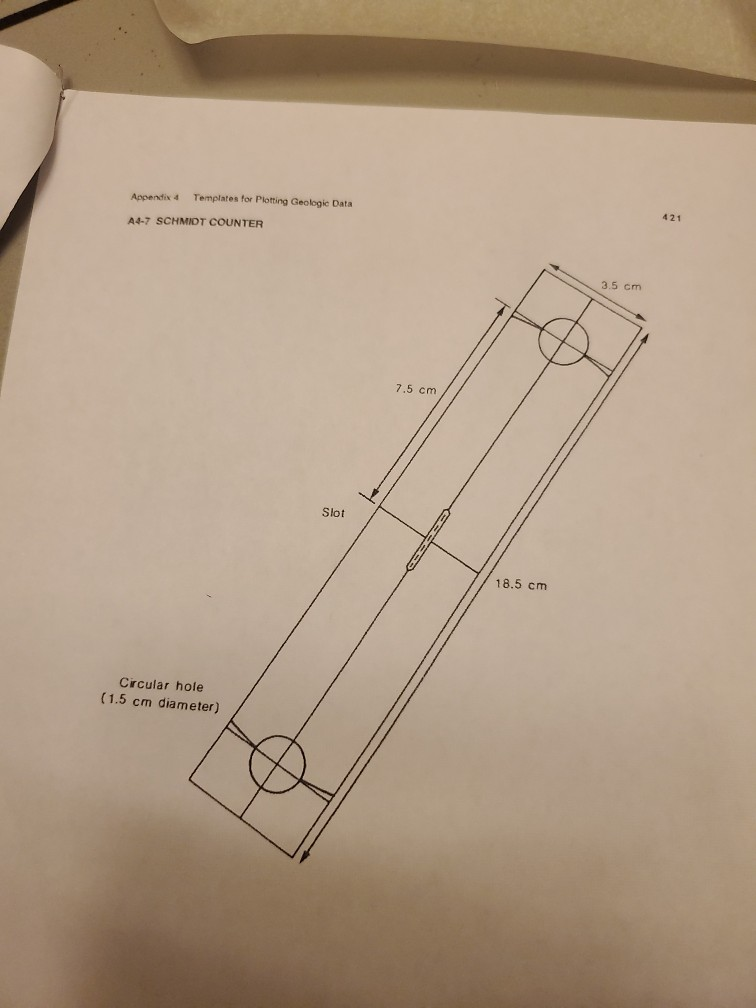

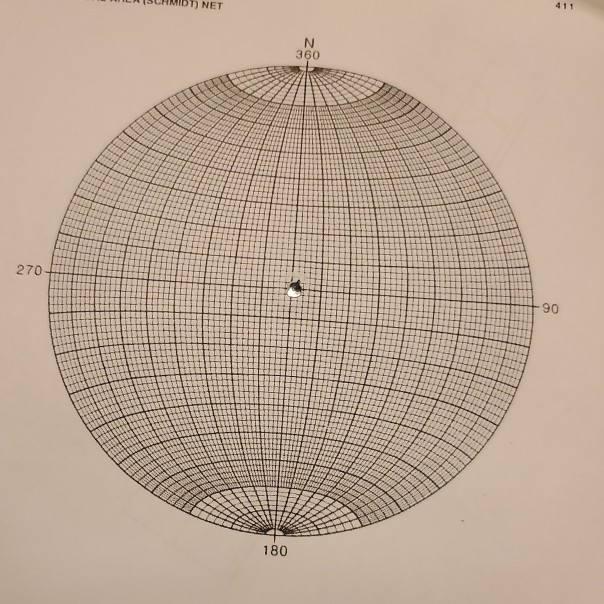

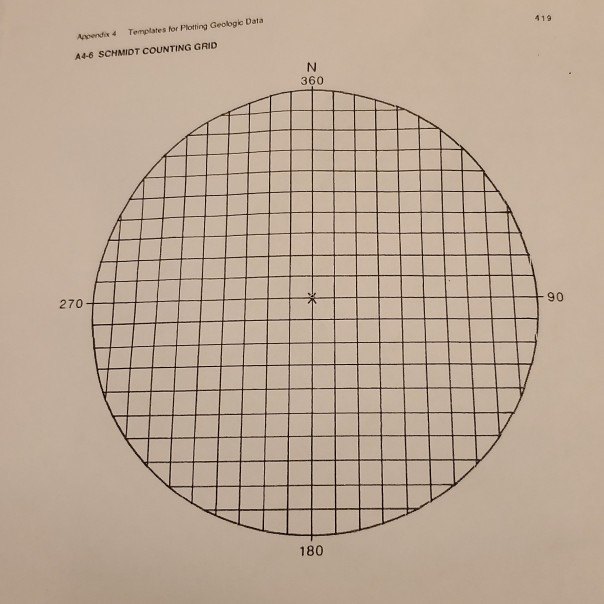

Solved Supplemental Plot And Contour The Bedding Data Chegg Our expert help has broken down your problem into an easy to learn solution you can count on. question: "plot the following bedding orientation data on an equal‐area net figure p3.1 and contour it using the circular counter (figures p5.3 and p5.4) or kalsbeek grid (figure p5.5). Question: fi problem 5.4 plot the following bedding orientation data on an equal area net figure p3.i and contour it using the circular counter (figures p5.3 and p5.4) or kalsbeek grid (figure p5.5). interpret the contour pattern by fully describing the fold in terms of both shape and orientation. If you wish, you may reduce a schmidt net to the appropriate size to determine carefully the attitudes of the structures shown, but you should be able to estimate the attitudes of structures from the equal arca plots (a) estimate the attitudes of the structures shown in each plot. Dip and strike data on each fold limb are plotted as poles to bedding. we can also locate on the geological map the hinge points for each layer. the line connecting hinge points must lie on the axial surface.
Solved Supplemental Plot And Contour The Bedding Data Chegg If you wish, you may reduce a schmidt net to the appropriate size to determine carefully the attitudes of the structures shown, but you should be able to estimate the attitudes of structures from the equal arca plots (a) estimate the attitudes of the structures shown in each plot. Dip and strike data on each fold limb are plotted as poles to bedding. we can also locate on the geological map the hinge points for each layer. the line connecting hinge points must lie on the axial surface. Sometimes it is useful to display three dimensional data in two dimensions using contours or color coded regions. there are three matplotlib functions that can be helpful for this task:. This article introduces a straightforward method of contouring some surface represented as a regular triangular mesh. contouring aids in visualizing three dimensional surfaces on a two dimensional medium (on paper or in this case a computer graphics screen). In today’s post, we’ll dive into creating contour plots and box plots using matplotlib and seaborn. As you will have noticed from the field trip and the earthquake exercise, the most common features that we plot are planes – faults, beds and foliations. planes are represented as lines on our stereonet.
Solved Supplemental Plot And Contour The Bedding Data Chegg Sometimes it is useful to display three dimensional data in two dimensions using contours or color coded regions. there are three matplotlib functions that can be helpful for this task:. This article introduces a straightforward method of contouring some surface represented as a regular triangular mesh. contouring aids in visualizing three dimensional surfaces on a two dimensional medium (on paper or in this case a computer graphics screen). In today’s post, we’ll dive into creating contour plots and box plots using matplotlib and seaborn. As you will have noticed from the field trip and the earthquake exercise, the most common features that we plot are planes – faults, beds and foliations. planes are represented as lines on our stereonet.

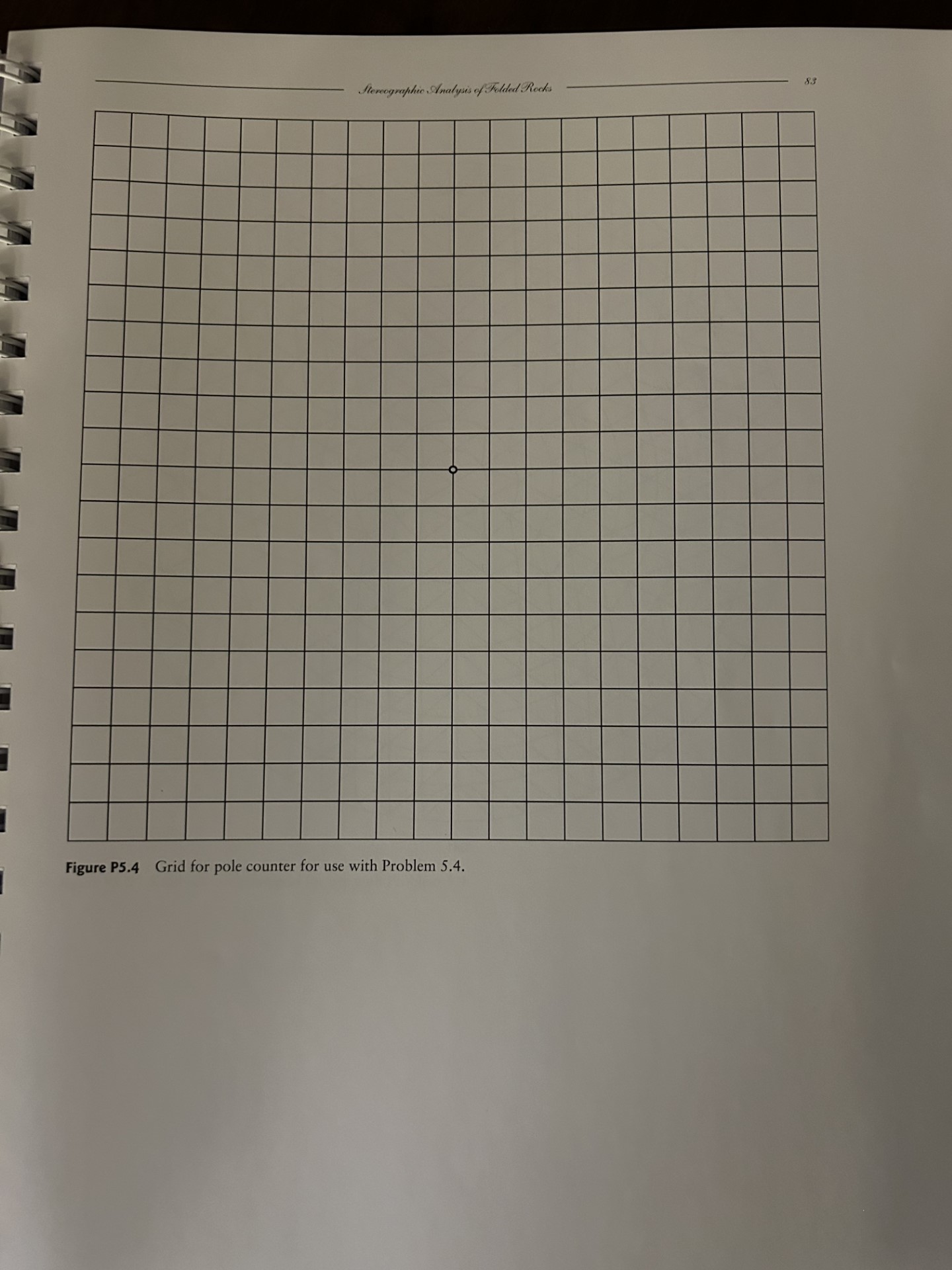

Fi Problem 5 4 Plot The Following Bedding Chegg In today’s post, we’ll dive into creating contour plots and box plots using matplotlib and seaborn. As you will have noticed from the field trip and the earthquake exercise, the most common features that we plot are planes – faults, beds and foliations. planes are represented as lines on our stereonet.
