Solved Draw Electric Fields Around A Positive Charge Particle A Just drawing the electric field lines in a plane that slices through the charge gives the two dimensional electric field maps shown in figure 18.18. on the left is the electric field created by a positive charge, and on the right is the electric field created by a negative charge. How can the electric field in the space surrounding a configuration of two or more charges be described by electric field lines? to answer this question, we will first return to our original method of drawing electric field vectors.

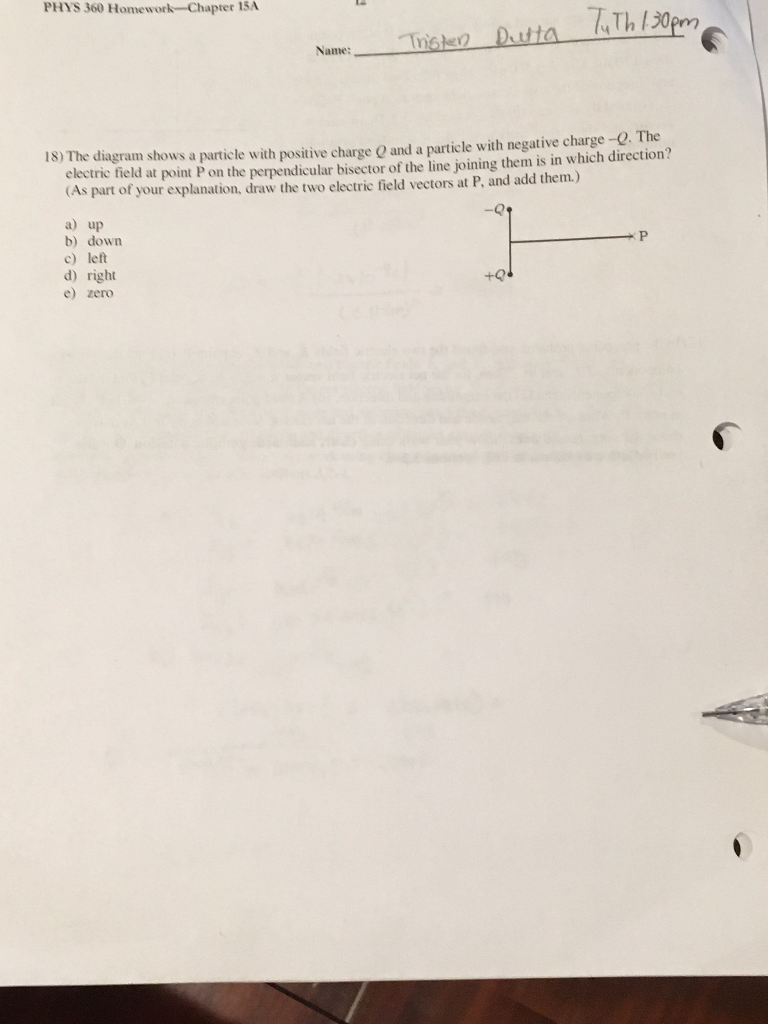

Solved The Diagram Shows A Particle With Positive Charge Chegg The concept of an electric field line is used to define an electric field near charged particles. they were first used by michael faraday to define an electric field due to an electron and a proton. Here’s the best way to solve it. i'll describe and represent the electric field patterns for each scenario. The ability to construct an accurate electric field diagram is an important, useful skill; it makes it much easier to estimate, predict, and therefore calculate the electric field of a source charge. Field around a positive charge: lines point away from the charge. field lines go from the positive charge to the negative charge. unlike charges: field lines go from to −. field lines do not join between like charges. they bend away from the region between the charges because like charges repel.
20 The Diagram Shows A Particle With Positive Charge Q And A Particle The ability to construct an accurate electric field diagram is an important, useful skill; it makes it much easier to estimate, predict, and therefore calculate the electric field of a source charge. Field around a positive charge: lines point away from the charge. field lines go from the positive charge to the negative charge. unlike charges: field lines go from to −. field lines do not join between like charges. they bend away from the region between the charges because like charges repel. Sketch the electric field around the following arrangements of "small" charged objects. the diagram below shows the location and charge of two identical small spheres. find the magnitude and direction of the electric field at the five points indicated with open circles. Figure 4 shows how the electric field from two point charges can be drawn by finding the total field at representative points and drawing electric field lines consistent with those points. A block of mass m and positive charge q is placed on an insulated frictionless inclined plane as shown in the figure. a uniform electric field e is applied parallel to the inclined surface such that the block is at rest. Learn electric field due to point charge with formula, detailed derivation, vector form, diagrams, and distance dependence for class 12 physics.
The Diagram Shows A Particle With Positive Charge Q A Particle With Sketch the electric field around the following arrangements of "small" charged objects. the diagram below shows the location and charge of two identical small spheres. find the magnitude and direction of the electric field at the five points indicated with open circles. Figure 4 shows how the electric field from two point charges can be drawn by finding the total field at representative points and drawing electric field lines consistent with those points. A block of mass m and positive charge q is placed on an insulated frictionless inclined plane as shown in the figure. a uniform electric field e is applied parallel to the inclined surface such that the block is at rest. Learn electric field due to point charge with formula, detailed derivation, vector form, diagrams, and distance dependence for class 12 physics.

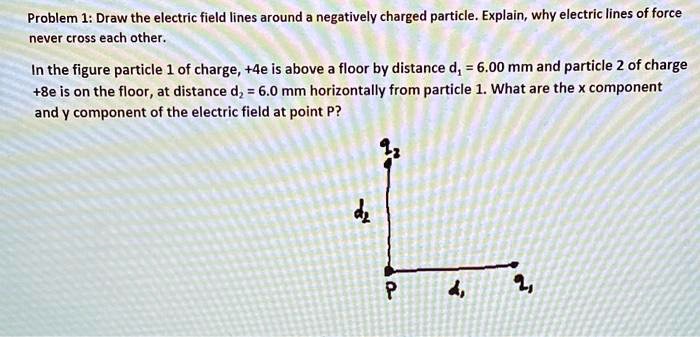

Solved Problem 1 Draw The Electric Field Lines Around Negatively A block of mass m and positive charge q is placed on an insulated frictionless inclined plane as shown in the figure. a uniform electric field e is applied parallel to the inclined surface such that the block is at rest. Learn electric field due to point charge with formula, detailed derivation, vector form, diagrams, and distance dependence for class 12 physics.
