Understanding Dc Armature Winding A Comprehensive Guide To The Design User generated content is uploaded by users for the purposes of learning and should be used following studypool's honor code & terms of service. stuck on a study question? our verified tutors can answer all questions, from basic math to advanced rocket science!. This document contains worked examples of calculations related to dc machines. example 1 calculates the number of conductors needed for a dc generator running at 1,200 rpm with a flux of 25 mwb per pole to generate 440v, depending on whether the armature winding is lap wound or wave wound.

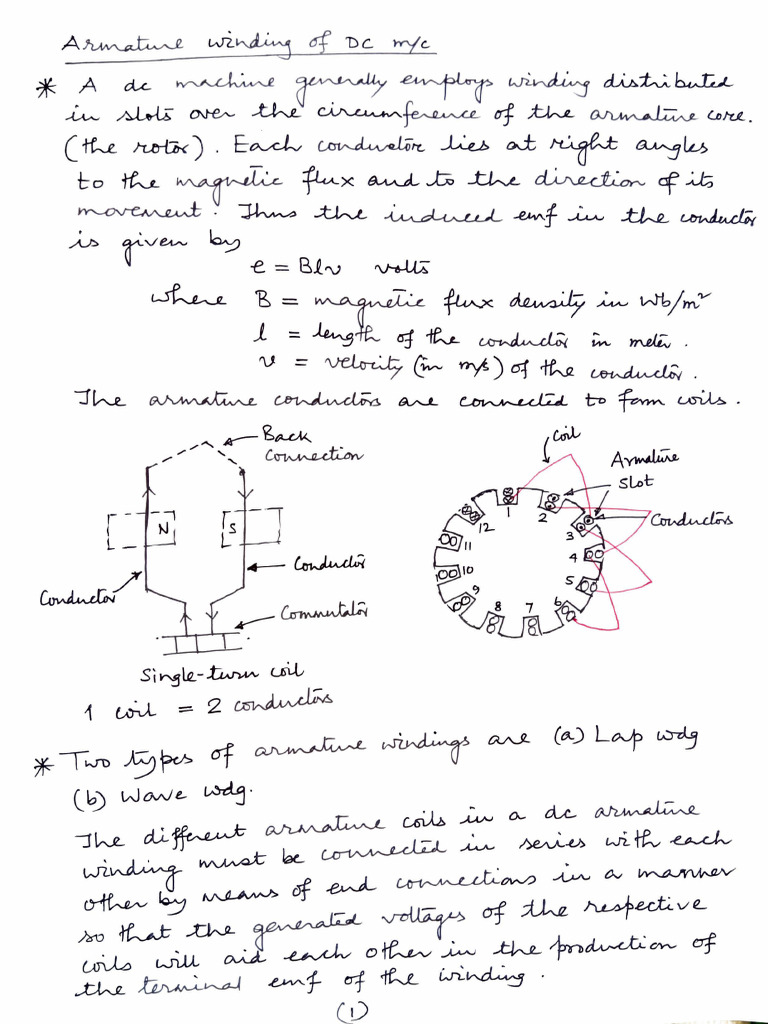

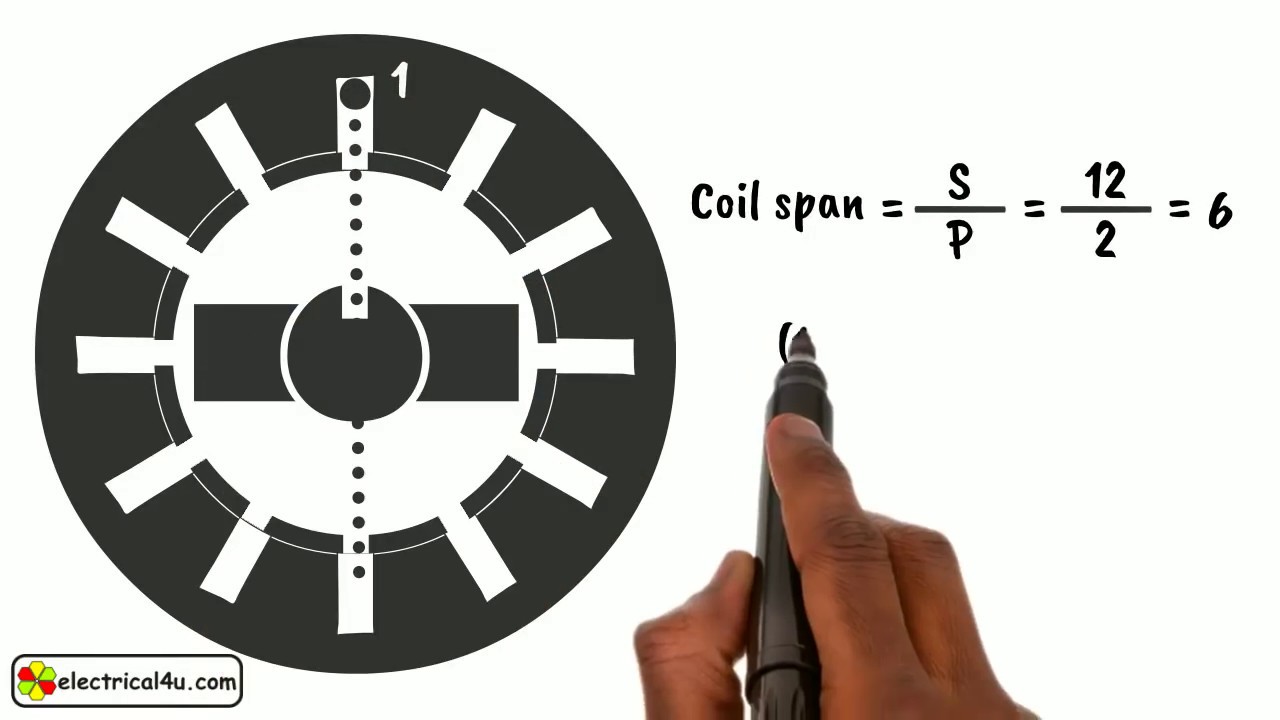

Dc Machine 3 Pdf After completing this module, you will know what winding means and understand the physics of a winder. you will also know important terms of winders and be able to distinguish between the control concepts. Comprehensive formula sheet for dc machines, covering lap and wave windings, emf, torque, losses, and regulation. ideal for electrical engineering students. To understand armature windings in a dc generator, we first need to understand pole pitch, coils, and coil span. what is pole pitch? pole pitch is defined as the peripheral distance between the center of two adjacent poles in a dc machine. In figure (35.14), a 4 pole, lap winding for d.c machine armature is presented with 8 numbers of slots. armature winding of a d.c machine is double layer type which means that in each slot there will be two coil sides present.
Solution Dc Machine Winding Calculations Studypool To understand armature windings in a dc generator, we first need to understand pole pitch, coils, and coil span. what is pole pitch? pole pitch is defined as the peripheral distance between the center of two adjacent poles in a dc machine. In figure (35.14), a 4 pole, lap winding for d.c machine armature is presented with 8 numbers of slots. armature winding of a d.c machine is double layer type which means that in each slot there will be two coil sides present. When driving a load, the motor runs at 1350 rpm, and draws a current of 29 a. use the load data for the calculation of the motor constant. (a) draw the equivalent circuit of the motor and determine the motor constant. Lap winding a lap winding has as many paths in parallel between the negative and positive brushes as there are of poles. if a machine has p pairs of poles no. of parallel paths with a lap winding = 2p lap windings are used for low voltage, heavycurrent machines. Slot coil selection: choose number of slots such that winding is reasonably distributed (e.g., 36, 42, 48 slots), and coil span (short pitch or full pitch) to control harmonics. Dc lap, single layer, simplex a. draw a developed lap winding diagram of dc machine with 20 conductors and 4 poles. the winding is single layer and simplex 1.

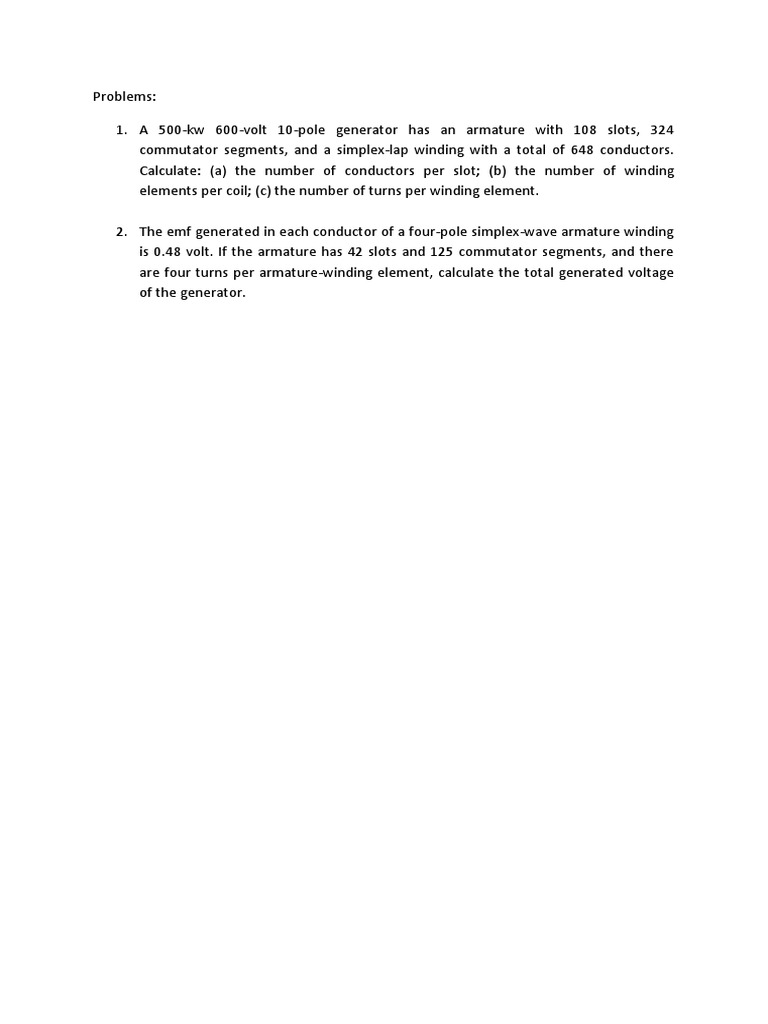

Generator Winding Calculations And Voltage Analysis Pdf When driving a load, the motor runs at 1350 rpm, and draws a current of 29 a. use the load data for the calculation of the motor constant. (a) draw the equivalent circuit of the motor and determine the motor constant. Lap winding a lap winding has as many paths in parallel between the negative and positive brushes as there are of poles. if a machine has p pairs of poles no. of parallel paths with a lap winding = 2p lap windings are used for low voltage, heavycurrent machines. Slot coil selection: choose number of slots such that winding is reasonably distributed (e.g., 36, 42, 48 slots), and coil span (short pitch or full pitch) to control harmonics. Dc lap, single layer, simplex a. draw a developed lap winding diagram of dc machine with 20 conductors and 4 poles. the winding is single layer and simplex 1.
Motor Winding Calculation Steps Tips For Accuracy 2025 Slot coil selection: choose number of slots such that winding is reasonably distributed (e.g., 36, 42, 48 slots), and coil span (short pitch or full pitch) to control harmonics. Dc lap, single layer, simplex a. draw a developed lap winding diagram of dc machine with 20 conductors and 4 poles. the winding is single layer and simplex 1.
