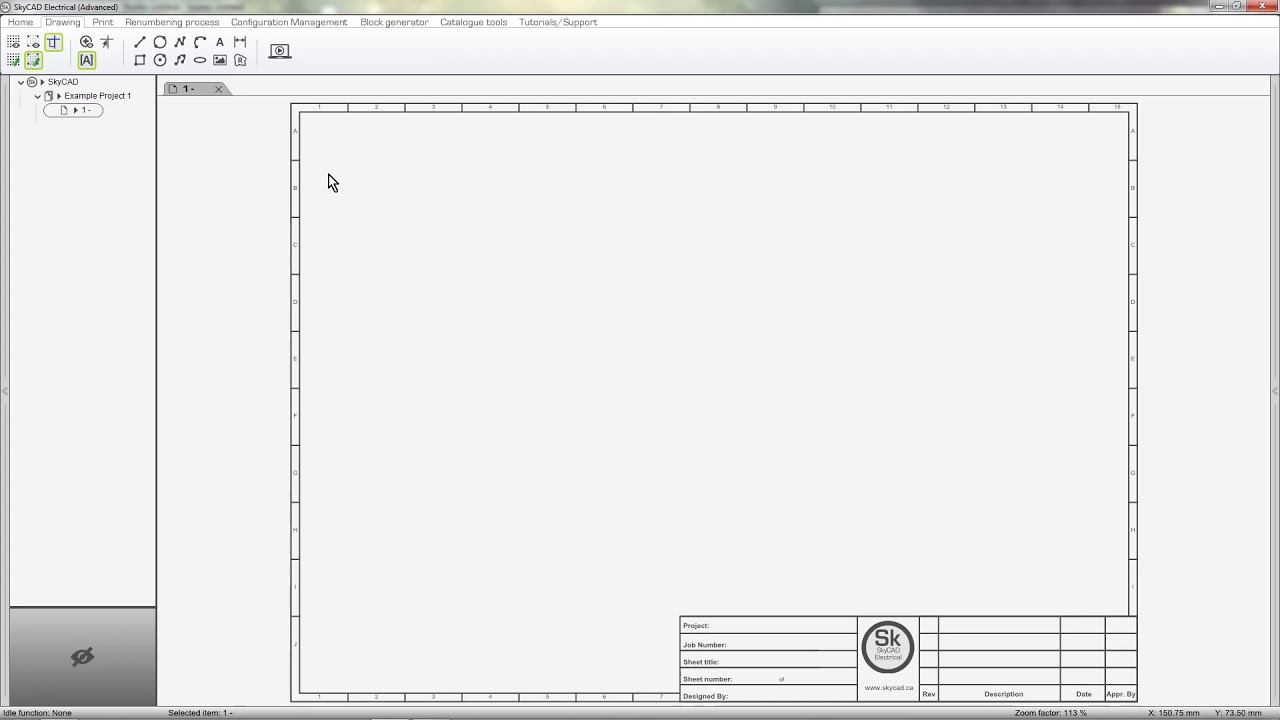

Creating A New Title Block Skycad Electrical Cad Software To add title block attributes which change automatically to display contextual information, go to the title block tools tab and select add title block attribute. This tutorial covers how you can easily create your own title blocks in skycad. visit us at skycad.ca more.

Creating A New Title Block Skycad Electrical Cad Software Select all objects in the title block, go to the drawing tab and select create title block. alphanumeric coordinates will appear (which can be changed later) and the title block will be anchored to the nearest corner of the sheet. We’ll go through the steps of laying out all the sheets, setting up the title block, and adding both a table of contents and a parts list. This tutorial shows how to create a new title block by modifying an existing one. Insert fields in a title block for information that is expected to change and can later be updated automatically. was this information helpful?.

Creating A New Title Block Skycad Electrical Cad Software This tutorial shows how to create a new title block by modifying an existing one. Insert fields in a title block for information that is expected to change and can later be updated automatically. was this information helpful?. You can now insert the title block in each of the layouts of a sheet set wherein the same custom sheet set and custom sheet properties exist. all fields in the title block will be filled out automatically. Go to home tab, select save as (give the file a new name) place it in the desire folder in the symbol library then replace your current title block with the newly created one you can repeat these steps to save multiple title blocks in the symbol library so that you can use them in different sheets let us know how it goes. To insert a title block into a new drawing: right click tab name, click 'from template', select the template, and select paper size that you want to insert. for a guide on paper sizes, and how these relate to each other see here. this is a simplified version of mr. elegant. First, check this tutorial: skycad.ca forums all tutorials creating new title block. it's greyed out because it has a query in it. when you are editing the title block, on the drawing tab, click the [a] symbol. this will show you the query that is gathering the incorrect old data.
