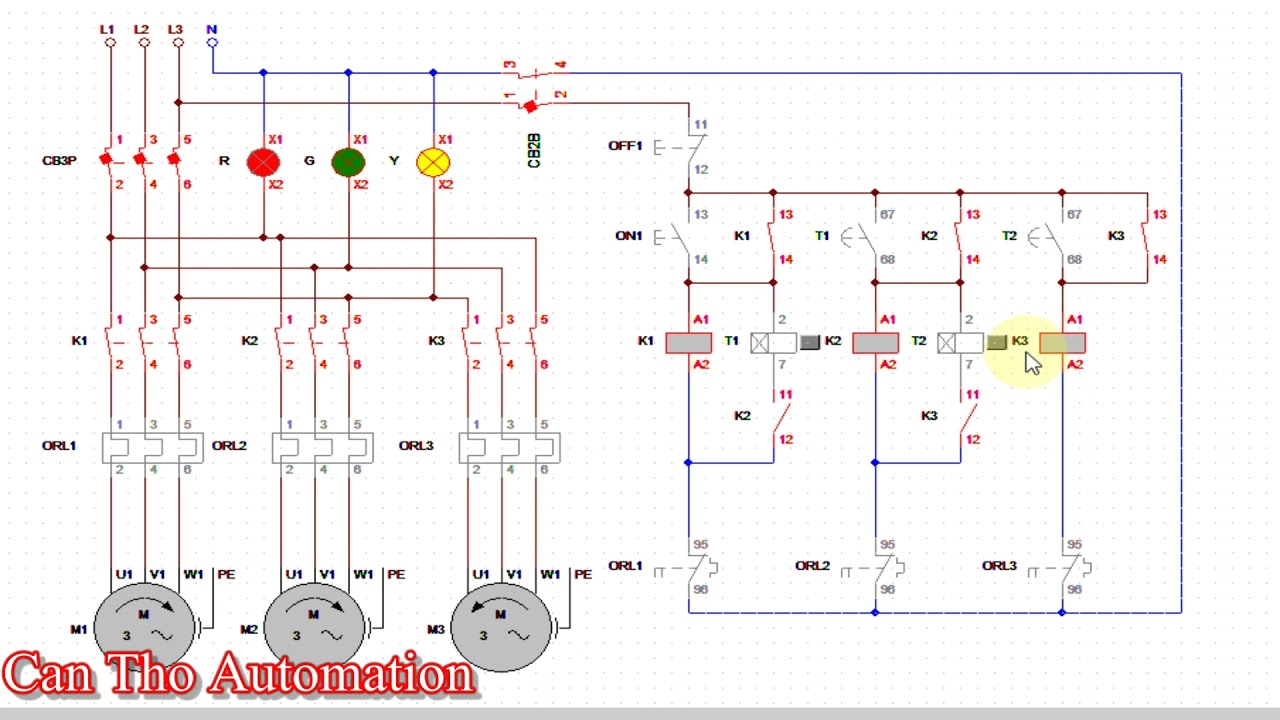

What Is Sequence Motor Control Circuit Infoupdate Org This sequential circuit diagram is designed to operate three motors in sequence using on and off buttons to control automatically the starting and stopping operation of each three phase motor with the help of timers. Relay timers and contactors are used in a sequence motor control circuit to switch on motors sequentially, meaning that one motor cannot start before certain other motors have started. in this lesson, we'll talk about utilizing contactors and timers to regulate the sequence of events.
What Is Sequence Motor Control Circuit Infoupdate Org Let’s begin by adding a couple of time delay relay coils, one in parallel with each motor contactor coil. if we use contacts that delay returning to their normal state, these relays will provide us a “memory” of which direction the motor was last powered to turn. The document provides instructions for an exercise to create a motor start sequence using control interlocks. students are asked to: 1) complete the current flow diagram showing the control circuit. Whether you seek a comprehensive diagram or guidance on how to control motors in sequence, this video is your go to resource for revolutionizing your understanding of motor operations. These timed contacts are in series with motor starter m2. the above switching arrangement will allow two motors to be controlled from a single pushbutton station and will guarantee that m2 energizes five seconds after m1 is energized.
What Is Sequence Motor Control Circuit Infoupdate Org Whether you seek a comprehensive diagram or guidance on how to control motors in sequence, this video is your go to resource for revolutionizing your understanding of motor operations. These timed contacts are in series with motor starter m2. the above switching arrangement will allow two motors to be controlled from a single pushbutton station and will guarantee that m2 energizes five seconds after m1 is energized. At its core, a sequence motor control circuit is a series of switches and relays that work together to control the flow of electricity to a motor. by opening and closing these switches at specific times, the speed and direction of the motor can be precisely controlled. A sequential motor control circuit is a circuit designed to control the operation of multiple motors in a specific sequence. it utilizes various control components such as relays, timers, and contactors to activate and deactivate the motors in a predetermined order. All motors will be operate in the sequence and 5 seconds time delay is to be provided between operations of each motor. here will write logic for sequential operation for motors using plc. From automated production lines to factory robots, these circuits provide an efficient and cost effective way to move motors in a predetermined sequence. in this article, we discuss the basics of sequence motor control circuits and their applications.
What Is Sequence Motor Control Circuit Infoupdate Org At its core, a sequence motor control circuit is a series of switches and relays that work together to control the flow of electricity to a motor. by opening and closing these switches at specific times, the speed and direction of the motor can be precisely controlled. A sequential motor control circuit is a circuit designed to control the operation of multiple motors in a specific sequence. it utilizes various control components such as relays, timers, and contactors to activate and deactivate the motors in a predetermined order. All motors will be operate in the sequence and 5 seconds time delay is to be provided between operations of each motor. here will write logic for sequential operation for motors using plc. From automated production lines to factory robots, these circuits provide an efficient and cost effective way to move motors in a predetermined sequence. in this article, we discuss the basics of sequence motor control circuits and their applications.
