Articulated Self Launching Gantries For Precast Segmental Bridges The launching gantries are deployed either on top or below the super structure to carry forward the construction at ease of speed. there are various kinds of launching gantries available, the choice of which depends upon the geometry of site and construction sequence adopted by the designer. Launching solutions home service launching solutions ground supported launching system view more double chord launching girder view more self launching gantries span by span construction view more.
Self Launching Gantries Span By Span Construction Bridgeconindia A launching gantry for span by span erection of precast concrete segmental box girders operates on similar spans, 130 ft to 170 ft (40 m to 50 m), but the design load is much higher because the unit supports the entire span during segment assembly and the application of prestress. The collection span by span construction of precast segmental bridges (134 pages in full a4 letter format) provides exhaustive coverage of the entire span by span construction process, ranging from segment fabrication by short and long line casting to the different types of self launching gantries used for span erection, and is offered with a. Span by span erection is the most common and often most cost effective construction method for precast segmental bridges. it involves erecting spans individually using a self launching gantry. this method works well for bridges with many 25 45m spans and a large radius. To overcome the difficulties of erecting spans on curve with the conventional straight lg, nrs developed in the early 90’s the innovative “hinged” concept, which allows the articulation of the lg to handle segment erection and launching operation.
Cantilever And Span By Span Segmental Construction With Launching Span by span erection is the most common and often most cost effective construction method for precast segmental bridges. it involves erecting spans individually using a self launching gantry. this method works well for bridges with many 25 45m spans and a large radius. To overcome the difficulties of erecting spans on curve with the conventional straight lg, nrs developed in the early 90’s the innovative “hinged” concept, which allows the articulation of the lg to handle segment erection and launching operation. From standard overhead to simplified under slung trusses that could be combined with the support of mobile crane or crawler crane.all launching gantries has to be fully tested in the factory prior to delivery. This paper presents the different erection methods in terms of technical features for both segmental construction and full span construction. Self launching gantries for span by span erection of precast segments. Modern launching gantries are often demonstrated in live construction footage, showing the step by step lifting, longitudinal movement, and precise placement of precast box girder segments during span by span erection.
Cantilever And Span By Span Segmental Construction With Launching From standard overhead to simplified under slung trusses that could be combined with the support of mobile crane or crawler crane.all launching gantries has to be fully tested in the factory prior to delivery. This paper presents the different erection methods in terms of technical features for both segmental construction and full span construction. Self launching gantries for span by span erection of precast segments. Modern launching gantries are often demonstrated in live construction footage, showing the step by step lifting, longitudinal movement, and precise placement of precast box girder segments during span by span erection.

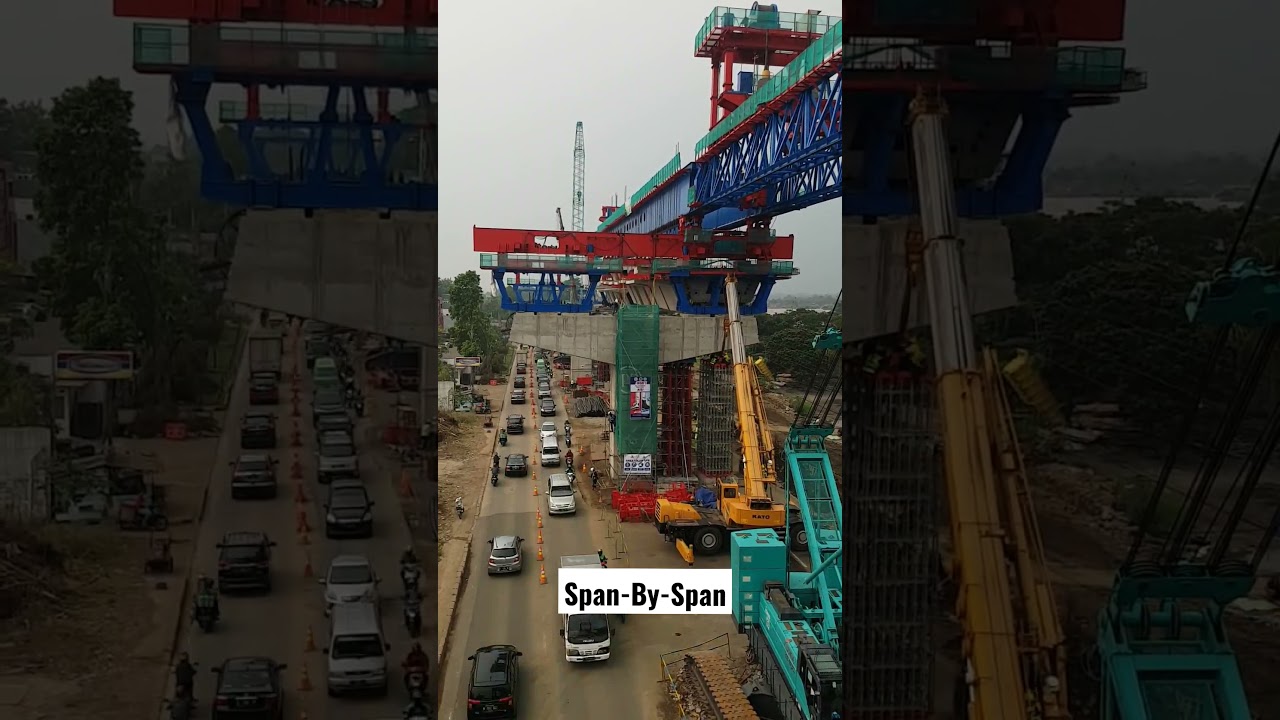

Launching Gantries Nrs Bridge Construction Equipment Self launching gantries for span by span erection of precast segments. Modern launching gantries are often demonstrated in live construction footage, showing the step by step lifting, longitudinal movement, and precise placement of precast box girder segments during span by span erection.
