Rotation Matrix Tutorial For Robotics And Aerospace Engineering

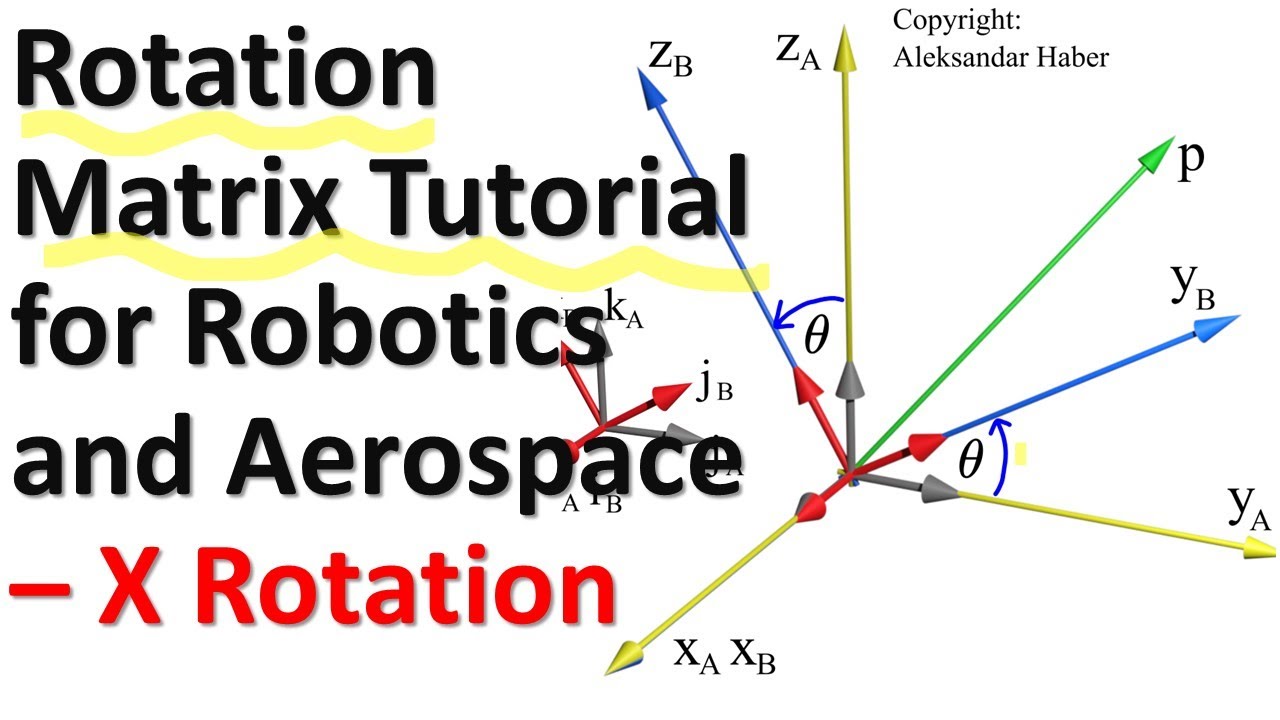

Rotation Matrix Tutorial For Robotics And Aerospace Z Rotation In this tutorial, we provide a concise introduction to rotation matrices in robotics and aerospace engineering. we explain how to derive the rotation matrices for the 2d case. In this robotics, gnc, and aerospace tutorial, we explain the concept of rotation matrices. we consider the case of rotation of two coordinate systems with respect to the z axis.

Ppt Mobile Robot Kinematics Powerpoint Presentation Free Download 3d rotation matrices, euler angles, arbitrary axis rotations (decomposition and rodrigues methods), and homogeneous transformations for robotics and aerospace applications. In this lesson, we want to talk about the robot's orientation and one of the ways that we can express this orientation. before divining into more details, let's see some preliminary concepts that we will use when studying the robot's configuration. This video introduces three common uses of rotation matrices: representing an orientation, changing the frame of reference of a vector or a frame, and rotating a vector or a frame. The second view of the rotation matrix is that it applies the rotation transformation on an object. in this view, the coordinates are all in the same frames (i.e. the original frame) and no other frames are involved.

Ppt Robot Kinematics Ii Powerpoint Presentation Free Download Id This video introduces three common uses of rotation matrices: representing an orientation, changing the frame of reference of a vector or a frame, and rotating a vector or a frame. The second view of the rotation matrix is that it applies the rotation transformation on an object. in this view, the coordinates are all in the same frames (i.e. the original frame) and no other frames are involved. In the last post we saw that we can use matrices to perform various kinds of transformations to points in space. we can stretch, flip, and scale them, but the important one for us is rotation. To start, we will see a light overview of the robot components before launching into the basics of forward kinematics: rotation matrices, rigid motion, and homogeneous transformation. In section 6.1 we introduced the space of 2d rigid transformations, s e (2), and showed how 3 × 3 matrices can be used to simultaneously represent rotation and translation in two dimensions. The attitude of a ground or aerial robot is often represented by a rotation matrix, whose time derivative is important to characterize the rotational kinematics of the robot.
