Ring And Johnson Counters Pdf The document describes how to design and implement ring counters and johnson counters using shift registers. it includes circuit diagrams, truth tables, and timing diagrams for both ring and johnson counters built using ic 7474. Ring counters are a type of counters composed of shift registers. they are ex tremely fast and require few logic gates. this document introduces two types of ring counters, the straight ring counter and the johnson counter. the latter is elaborated on in detail.
Ring Counters And Johnson Counter Download Free Pdf Digital The difference between a ring counter and a johnson counter is which output of the last stage is fed back (q or q'). carefully compare the feedback connection below to the previous ring counter. Ring counter using d flip flops are made by connecting the q output of the last flip flop to the d input of the first flip flop. as it can be seen from the truth table, there are four unique output states for this counter, rendering a mod 4 ring counter. Summary • the ring counters and johnson counters are digital circuits that generate sequences of states. • but, they differ in the nature of the sequence they produce and the feedback mechanisms involved in their operation. The major advantage of a ring counter over a binary counter is a self decoding counter. no extra decoding circuit is needed to determine what state the counter is in.

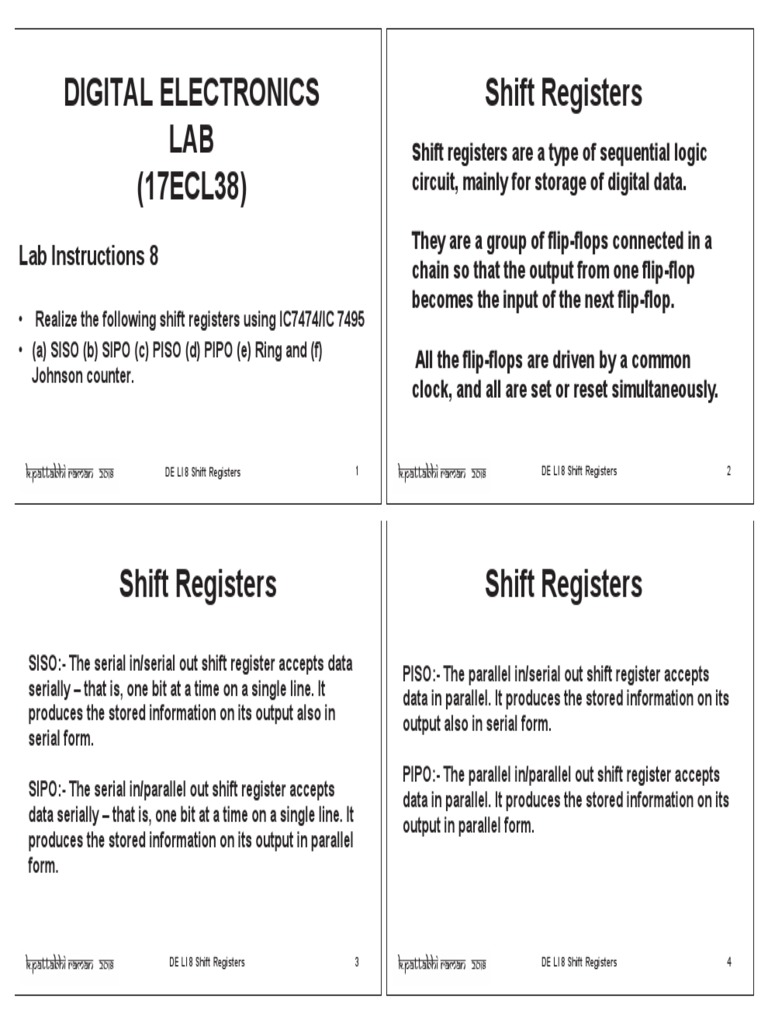

8 Shift Registers Ring And Johnson Counters 4in1 Pdf Electronic Summary • the ring counters and johnson counters are digital circuits that generate sequences of states. • but, they differ in the nature of the sequence they produce and the feedback mechanisms involved in their operation. The major advantage of a ring counter over a binary counter is a self decoding counter. no extra decoding circuit is needed to determine what state the counter is in. Course outcome: understand the working mechanism and design guidelines of different counters and their role in the digital system design. In this paper the two most important counters ring and johnson counter are designed in the same circuit using qca and the corresponding simulations are shown with the help of qcadesigner tool. Decade counters (or bcd counters) are counters with 10 states (modulus 10) in their sequence. they are commonly used in daily life (e.g.: utility meters, odometers, etc.). In this paper, a designing escalation mechanism has been deployed to design a high speed, cost effective and low power 4 bit johnson ring counter which can also be used for higher order ring counter designs.
Ring Counter Johnson Couter Pdf Course outcome: understand the working mechanism and design guidelines of different counters and their role in the digital system design. In this paper the two most important counters ring and johnson counter are designed in the same circuit using qca and the corresponding simulations are shown with the help of qcadesigner tool. Decade counters (or bcd counters) are counters with 10 states (modulus 10) in their sequence. they are commonly used in daily life (e.g.: utility meters, odometers, etc.). In this paper, a designing escalation mechanism has been deployed to design a high speed, cost effective and low power 4 bit johnson ring counter which can also be used for higher order ring counter designs.
Ring And Johnson Counters Eees In Decade counters (or bcd counters) are counters with 10 states (modulus 10) in their sequence. they are commonly used in daily life (e.g.: utility meters, odometers, etc.). In this paper, a designing escalation mechanism has been deployed to design a high speed, cost effective and low power 4 bit johnson ring counter which can also be used for higher order ring counter designs.
