Rigpix Database Icom Ic 735 Easy way to fix icom ic 735 encoder issues. see you on the air. 73. Recently my ic 735 developed a problem with its main tuning (vfo) sensor encoder. as the knob was turned to increase frequency, the displayed frequency would change erratically and sometimes jump to a lower frequency.
Rigpix Database Icom Ic 735 So here’s the moral of the tale: never throw out an old icom encoder. even if it’s oxidized, sluggish, or forgotten in a box, it can be rebuilt, re tensioned, and reborn. View and download icom ic 735 service manual online. hf all band transceiver general coverage receiver. ic 735 transceiver pdf manual download. If you are reviewing this article, you are either the owner of an icom ic 735 hf or similar vintage transceiver or someone thinking about repairing the common age related tuning problem of this radio within the optical rotary encoder unit. View and download icom ic 735 instruction manual online.

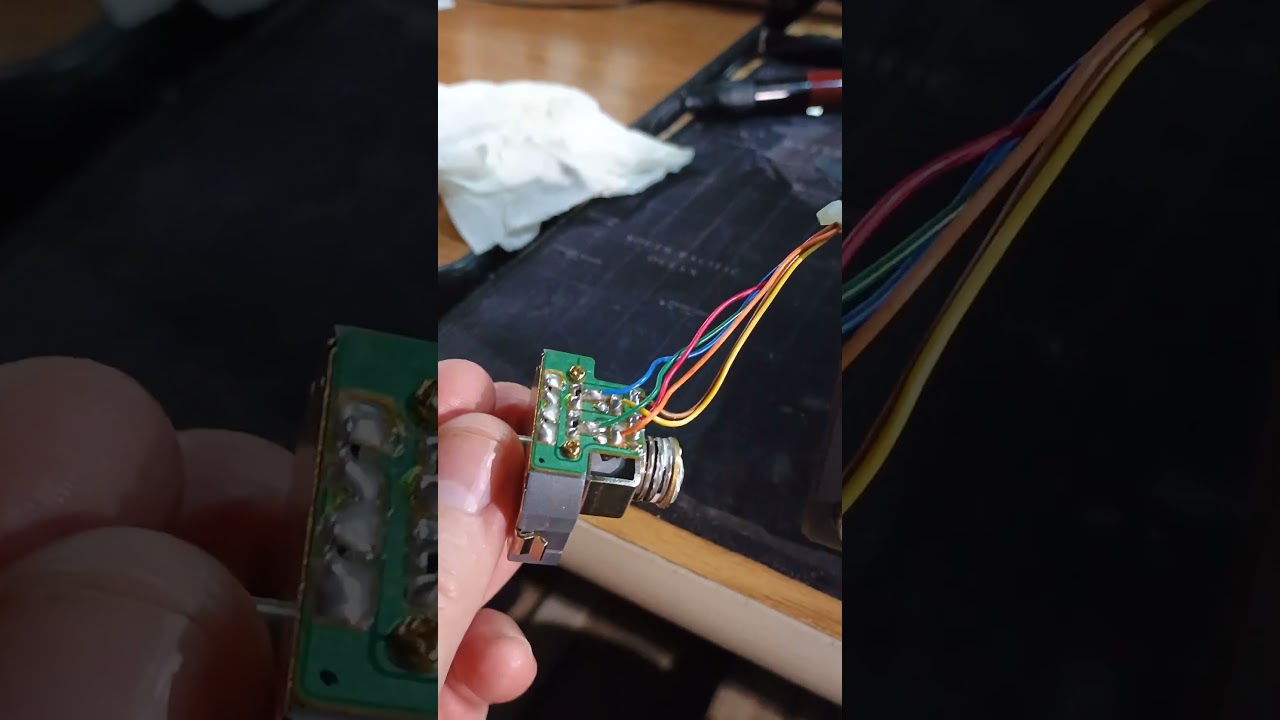

Rigpix Database Icom Ic 735 If you are reviewing this article, you are either the owner of an icom ic 735 hf or similar vintage transceiver or someone thinking about repairing the common age related tuning problem of this radio within the optical rotary encoder unit. View and download icom ic 735 instruction manual online. Unfortunately it is a mechanical not electronic problem. the shaft was pushed in and no longer turns. this is how to clean and replace lubricant in the encoder. the following will take you to a search page with links to the mechanical overhaul paper. the original site seems to no longer exist. Icom ic 735 service manual. contains technical specifications, inside views, disassembly and assembly diagrams, block diagram, circuit description, voltage diagrams, maintenance and adjustments, board layouts, parts list and circuit diagrams. 107 pages. As you can see from the picture, there was an attempted repair made involving thick wire and a lot of glue. i carefully removed all the glue with an xacto knife and clipped away the heavy wires. i also removed the front panel to get a better idea of how a better repair could be made. Doing some research on the net i found that one guy just removed the encoder, then the board, blew it out with an air bulb used for camera lens cleaning, lub.
Rigpix Database Icom Ic 735 Unfortunately it is a mechanical not electronic problem. the shaft was pushed in and no longer turns. this is how to clean and replace lubricant in the encoder. the following will take you to a search page with links to the mechanical overhaul paper. the original site seems to no longer exist. Icom ic 735 service manual. contains technical specifications, inside views, disassembly and assembly diagrams, block diagram, circuit description, voltage diagrams, maintenance and adjustments, board layouts, parts list and circuit diagrams. 107 pages. As you can see from the picture, there was an attempted repair made involving thick wire and a lot of glue. i carefully removed all the glue with an xacto knife and clipped away the heavy wires. i also removed the front panel to get a better idea of how a better repair could be made. Doing some research on the net i found that one guy just removed the encoder, then the board, blew it out with an air bulb used for camera lens cleaning, lub.
Icom Ic 735 Wade S Blog As you can see from the picture, there was an attempted repair made involving thick wire and a lot of glue. i carefully removed all the glue with an xacto knife and clipped away the heavy wires. i also removed the front panel to get a better idea of how a better repair could be made. Doing some research on the net i found that one guy just removed the encoder, then the board, blew it out with an air bulb used for camera lens cleaning, lub.
