256k 32k X 8 Paged Parallel Eeprom At28c256 Features Pdf Cmos During the write operation, successive attempts to read data from the device will result in i o6 toggling between one and zero. once the write has completed, i o6 will stop tog gling and valid data will be read. reading the toggle bit may begin at any time during the write cycle. Device operation read: the at28c256 is accessed like a static ram. when ce and oe are low and we is high, the data stored at the memory location determined by the address pins is asserted on the outputs. the outputs are put in the high impedance state when either ce or oe is high.

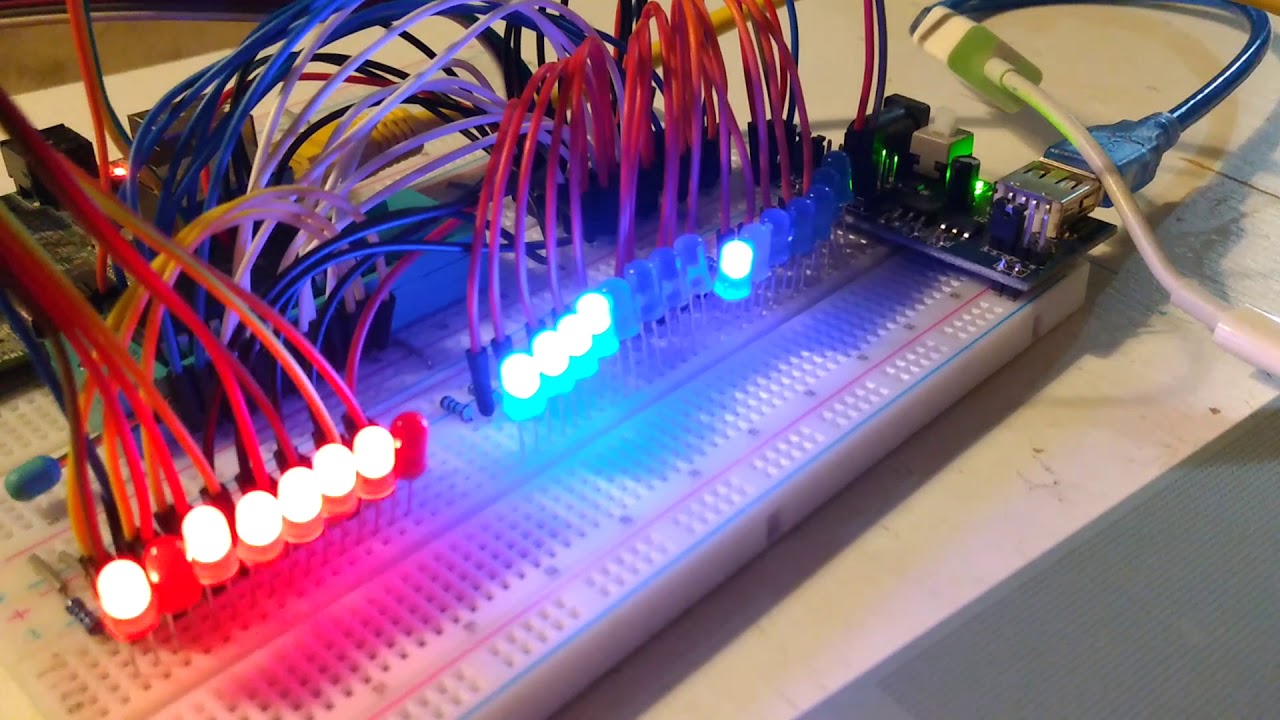

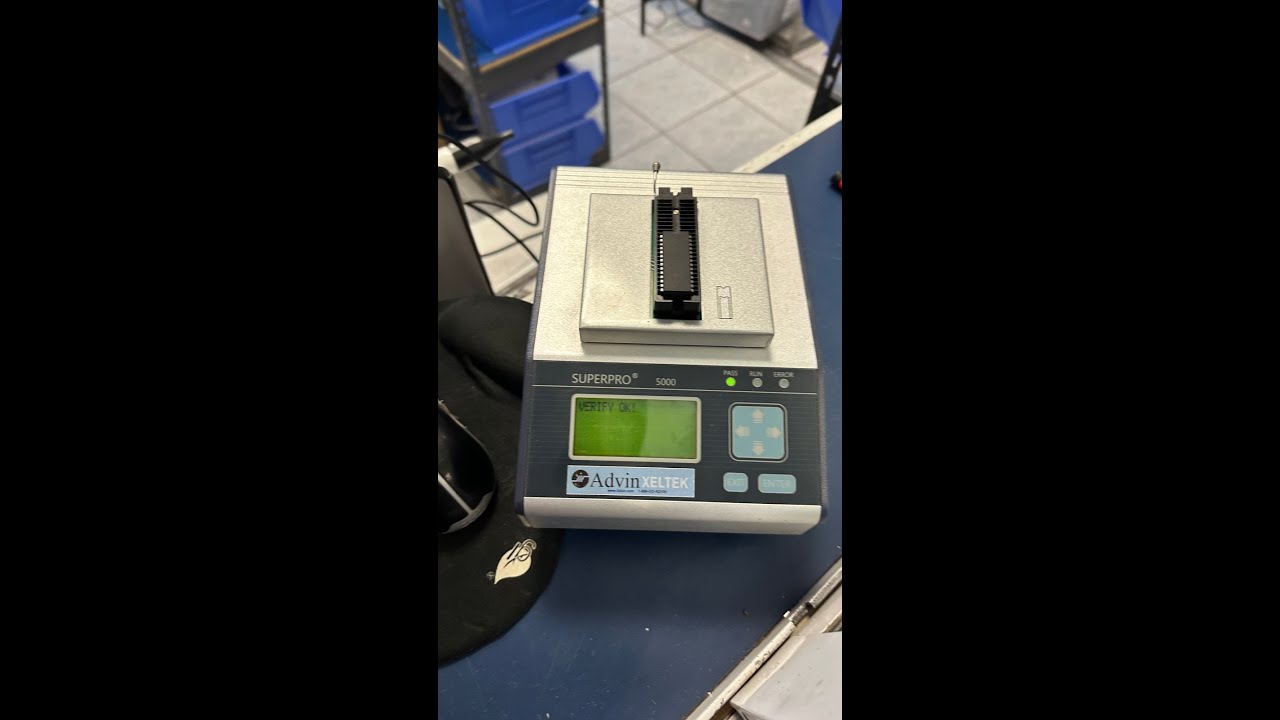

馃樁eeprom At28c256馃樁 Youtube Related video introduction video: reading an at28c256 eeprom at28c256 video description: using an old raspberry pi, a breadboard and two 74hc595 shift registers to read out a parallel pdip eeprom. the leds were added as a debugging aid. the blue leds show the address currently selected, while the red leds show the contents of the byte on this. In addition the basic read and write operations, there are also commands to enable and disable the software data protection (sdp) features of 28c chips. there is also support for the fast block write mode of these chips, allowing a 32kb chip to be programmed in just a few seconds. This article offers a comprehensive overview of the at28c256 paged parallel eeprom, covering its pin descriptions, features, specifications, and more to help you quickly understand its capabilities and applications. This adapter can read and write at28c64 and at28c256 eeprom chips using arudino mega. creating converter pcb for this task recommended. you can use the code in the src main.cpp file directly to control your adapter via serial port or just using the eepromadapter class in a different way.
Reading An At28c256 Eeprom Youtube This article offers a comprehensive overview of the at28c256 paged parallel eeprom, covering its pin descriptions, features, specifications, and more to help you quickly understand its capabilities and applications. This adapter can read and write at28c64 and at28c256 eeprom chips using arudino mega. creating converter pcb for this task recommended. you can use the code in the src main.cpp file directly to control your adapter via serial port or just using the eepromadapter class in a different way. I want to use my arduino mega to program an eeprom. i bought a xicor 28c256 that has the same datasheet info as the atmel because it says it is accessed the same as sram. An arduino based programmer for at28c64 at28c256 eeproms. it is heavily based on ben eaters eeprom programmer github beneater eeprom programmer. During the write operation, successive attempts to read data from the device will result in i o6 toggling between one and zero. once the write has completed, i o6 will stop tog gling and valid data will be read. reading the toggle bit may begin at any time during the write cycle. The at28c256 is a high performance electrically erasable programmable read only memory (eeprom) chip with the following key features: fast 150 ns read access time and automatic page write operation that can write up to 64 bytes simultaneously using internal addressing.
At24c256 External Eeprom With Arduino Detailed Explanation I want to use my arduino mega to program an eeprom. i bought a xicor 28c256 that has the same datasheet info as the atmel because it says it is accessed the same as sram. An arduino based programmer for at28c64 at28c256 eeproms. it is heavily based on ben eaters eeprom programmer github beneater eeprom programmer. During the write operation, successive attempts to read data from the device will result in i o6 toggling between one and zero. once the write has completed, i o6 will stop tog gling and valid data will be read. reading the toggle bit may begin at any time during the write cycle. The at28c256 is a high performance electrically erasable programmable read only memory (eeprom) chip with the following key features: fast 150 ns read access time and automatic page write operation that can write up to 64 bytes simultaneously using internal addressing.
