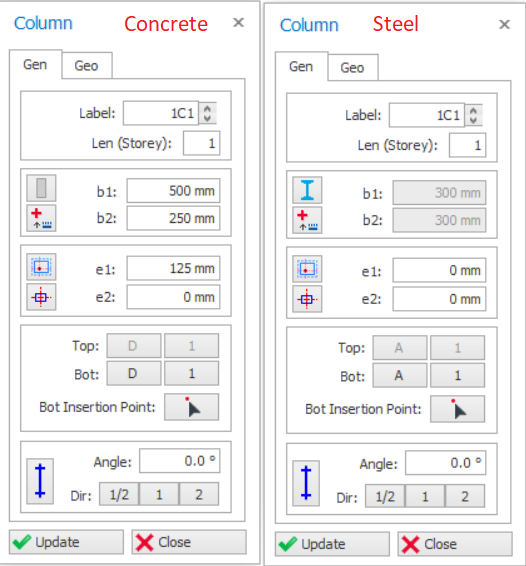

Protastructure Working With Columns Modify the fields in the "column properties" form. press the "update" button in the “properties” form. right clicking on any one of the “b1”, “b2”, “e1”, or “e2” fields will load a list of commonly used values that may facilitate data entry. you can repeat this process on as many members as you wish. Learn how to add, modify, and manage columns in protastructure in this quick and beginner friendly tutorial.
Protastructure Working With Columns In summary, always check the transfer member option when dealing with discontinuous columns or when modeling transfer slabs to ensure accurate structural analysis and load transfer. this practice will help maintain the integrity of your structural design in prota structure. As indicated in the table, the program provides two design methods. the default method applies cl 3.8.4.5 to convert bi‐axial moments into an equivalent uni‐axial design moment. Column and wall design contents the "column section design" form can be accessed by clicking the “column section design” option under the “design” pulldown menu in the graphic editor. protastructure can design rectangular, circular and polyline columns under uniaxial or biaxial. In this step by step tutorial, we’ll show you how to model, modify, and analyze a column in just 5 minutes using protastructure 2025.

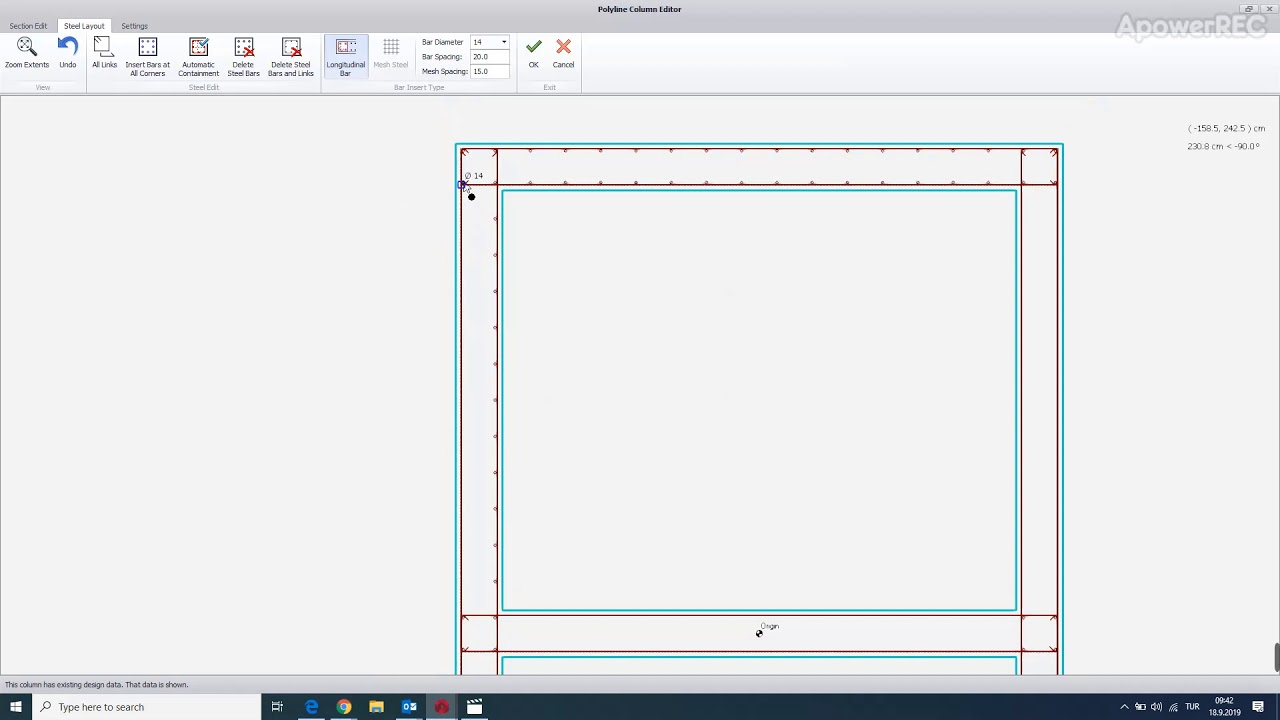

Protastructure Working With Columns Column and wall design contents the "column section design" form can be accessed by clicking the “column section design” option under the “design” pulldown menu in the graphic editor. protastructure can design rectangular, circular and polyline columns under uniaxial or biaxial. In this step by step tutorial, we’ll show you how to model, modify, and analyze a column in just 5 minutes using protastructure 2025. In this video, you will explore various ways to insert rc columns and all the fields available in the "properties" window of the columns. In this quick start guide, you had firsthand experience how easy it is to create all the detail reinforcement & layout drawings of the project model you first started in protastructure. Introduction by default, protastructure designs columns bent about a single axis or bent about both axes using the code clauses given in bs en 1992 1 1:2004 part 1. the following table summarises the various stages of the ec 2 column design process:. Techniques for member creation and loading are described in this section. also described here are those other modelling related functions contained on the “member” pulldown. additional modelling related topics can be found in the preceding graphic editor basics section.
