Potential Temperature Versus Salinity Plot For The Atlantic Core Download scientific diagram | potential temperature versus salinity plot for the atlantic core. station numbers are from arkiv 3 and project arctic'91. figure 11 is taken from. The data used are profiles of potential temperature and salinity in the equatorial and south atlantic, output from an ocean model. the y axis of the first plot produced will be automatically inverted due to the presence of the attribute positive=down on the depth coordinate.
Potential Temperature Versus Salinity Plot For The Atlantic Core A vertical section showing the mean distribution of temperature in the western atlantic ocean, and two temperature depth profiles corresponding to locations a and b. It can be used to create boundary and or initial conditions for a variety of ocean models, verify numerical simulations of the ocean, and corroborate satellite data. Fig. 13 property property plot of potential temperature versus salinity, with isopycnals, for the a10 2011 section, with data points colored by dissolved oxygen (the data dots are colored by whatever parameter is shown in the data window). These example scripts create t s diagrams based on global or cesm pop defined ocean basins employing a scattergram format with temperature on the ordinate (y axis) and salinity on the abscissa (x axis). christine shields, an associate scientist at ncar, provided these example scripts.

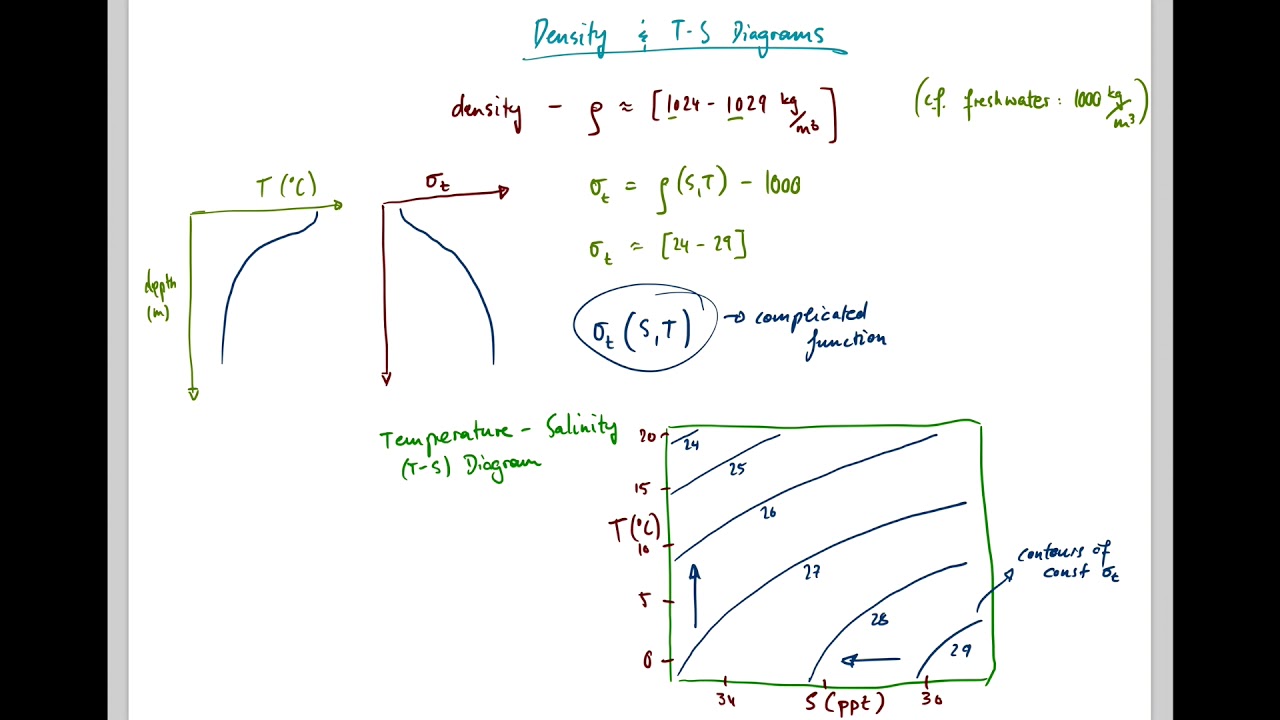

Potential Temperature Versus Salinity Plot For The Atlantic Core Fig. 13 property property plot of potential temperature versus salinity, with isopycnals, for the a10 2011 section, with data points colored by dissolved oxygen (the data dots are colored by whatever parameter is shown in the data window). These example scripts create t s diagrams based on global or cesm pop defined ocean basins employing a scattergram format with temperature on the ordinate (y axis) and salinity on the abscissa (x axis). christine shields, an associate scientist at ncar, provided these example scripts. In a t s diagram, rather than plotting each water property as a separate "profile," with pressure or depth as the vertical coordinate, potential temperature (on the vertical axis) is plotted versus salinity (on the horizontal axis). Scription of the atlantic, wiist (1935) identified seven such core layers, characterized by maxima or minima of oxygen, salinity, or temper ature. while the study of the spreading of these layers is of unquestionable value in descriptive oceanography, they have a drawback, pointed out by montgomery (1938a. Figure 2 shows maps of the potential temperature, salinity, depth, and potential density anomaly of the aw core from all observations, giving an idea of the general spatial distribution of properties at the depth of the aw temperature maximum. Gsw sa ct plot function to plot absolute salinity conservative temperature profiles on the sa ct diagram, including the freezing line and selected potential density contours.
Potential Temperature Versus Salinity Plot For The Atlantic Core In a t s diagram, rather than plotting each water property as a separate "profile," with pressure or depth as the vertical coordinate, potential temperature (on the vertical axis) is plotted versus salinity (on the horizontal axis). Scription of the atlantic, wiist (1935) identified seven such core layers, characterized by maxima or minima of oxygen, salinity, or temper ature. while the study of the spreading of these layers is of unquestionable value in descriptive oceanography, they have a drawback, pointed out by montgomery (1938a. Figure 2 shows maps of the potential temperature, salinity, depth, and potential density anomaly of the aw core from all observations, giving an idea of the general spatial distribution of properties at the depth of the aw temperature maximum. Gsw sa ct plot function to plot absolute salinity conservative temperature profiles on the sa ct diagram, including the freezing line and selected potential density contours.
