Pin Diode Schematic Diagram A schematic diagram of pin diodes provides a visual representation of how these devices operate. it shows the pn junction, anode, and cathode as well as their corresponding electric and optical characteristics. For example, in chapter 2, the common pin diode switch configurations are presented, followed by sections comparing those features of pin diode switch designs for unique to high power microwave switches and high power lower frequency (rf band) switches.

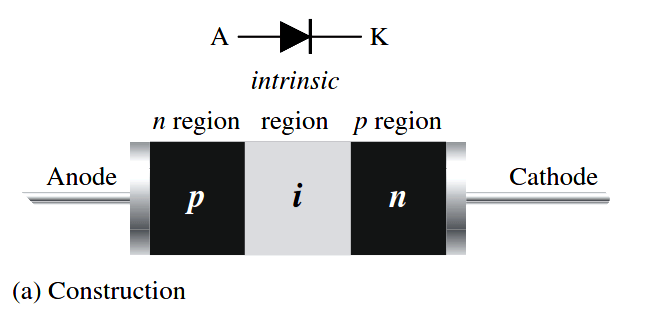

Pin Diode Schematic Diagram A pin diode, quick for positive intrinsic negative diode, is a semiconductor tool that belongs to the diode family. unlike normal diodes, pin diodes include three layers:. The pin diode obeys the standard diode equation for low frequency signals. at higher frequencies, the diode looks like an almost perfect (very linear, even for large signals) resistor. A pin diode is a special type of diode made from three different semiconductor layers. it is made by placing an intrinsic semiconductor layer (i) between the p type and n type semiconductor layers. Here, the electric field direction will be from n to p region. this diode includes two terminals, namely anode, and cathode, known as positive and negative terminals. the symbol of the pin diode is shown below.
Pin Diode Schematic Diagram A pin diode is a special type of diode made from three different semiconductor layers. it is made by placing an intrinsic semiconductor layer (i) between the p type and n type semiconductor layers. Here, the electric field direction will be from n to p region. this diode includes two terminals, namely anode, and cathode, known as positive and negative terminals. the symbol of the pin diode is shown below. In 1950, nishizawa and his colleagues invented the pin diode. the pin diode serves as an excellent absorber of light and can be utilized as a photodetector to convert optical energy into electrical energy (current). In the schematic, each branch of the switch contains one series connected pin diode. the resistors r1 and r2 are used to set the bias current for the branch one and the branch two of the switch respectively. In this article, we will explore the pin diode in detail, covering its symbol, construction, vi characteristics, working principle, advantages, disadvantages, and applications. Light striking the crystal lattice can release holes and electrons which are drawn away out of the depletion region by the reverse bias on the diode. by having a larger depletion region as in the case of a pin diode the volume for light reception is increased.
