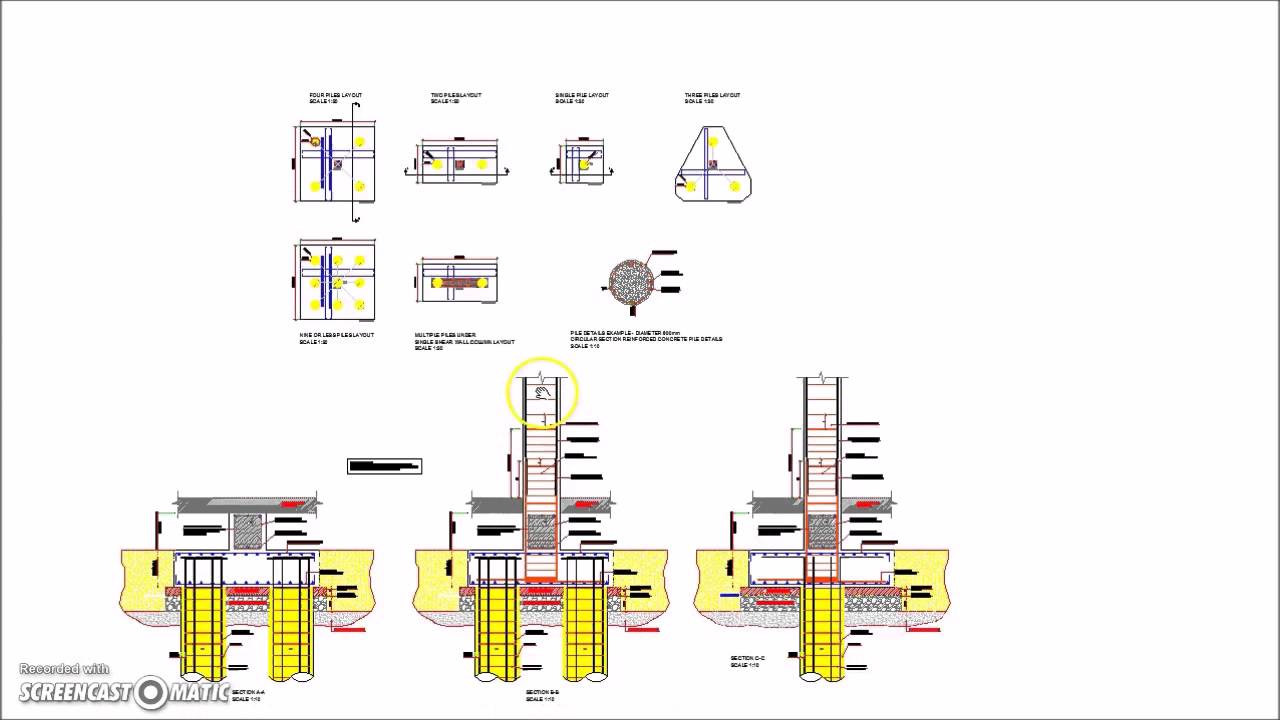

Risa Concrete Pile Design For Pile Caps Structural detail (cad block) of a pile cap (pile footing) for one piles (1 pile system) for the support of a reinforced concrete column. detail drawing (sections and plans) shows the size, quantity and location of concrete reinforcing bars, pile spacing, edge distance and pile cap thickness. Comprehensive design guide for pile caps, covering analysis, detailing, and methodologies. includes gravity and lateral load considerations. for structural engineers.
Pile Caps Detallesconstructivos Net The plan dimensions of a pile cap depend on the number of piles that are needed to support the load. number and arrangement of piles were determined from unfactored forces and moments transmitted to piles and permissible pile capacity selected through geotechnical engineering principles. Explore the pile cap design and calculation spreadsheet for stable and durable building foundations in deep foundation systems. This document discusses the design of pile caps, which connect piles to the superstructure. it provides an example of designing a pile cap to support two piles and a column. Pile caps are constructed to hold the pile and superstructure together at the ground level or below the ground level while transferring loads of the superstructure to the foundation. generally, pile caps are constructed to connect one pile, two piles, three piles, four piles or a group of files.
Pile Caps Detallesconstructivos Net This document discusses the design of pile caps, which connect piles to the superstructure. it provides an example of designing a pile cap to support two piles and a column. Pile caps are constructed to hold the pile and superstructure together at the ground level or below the ground level while transferring loads of the superstructure to the foundation. generally, pile caps are constructed to connect one pile, two piles, three piles, four piles or a group of files. This abstract presents an overview of the key considerations and procedures involved in designing pile caps in accordance with aci 318 19. These considerations include the proper spacing of each pile, the pile cap thickness and so on. to achieve this can only be done by understanding its design principles and proper detailing of pile caps. The pile cap is a type of thick concrete mat like structure which rests on the pile (timber or concrete) which gives a stable foundation to the whole system. this concrete pile cap transfers the entire load of the superstructure to the into the piles, which gives you a stable bearing capacity. Related interests pile cap drawing elevator shaft pit reinforcement detail column footing plan drawing pile cap reinforcement detail autocad pile cap reinforcement detail dwg concrete column base detail autocad manhole base detail drawing manhole reinforcement detail autocad dwg manhole reinforcement detail dwg.
