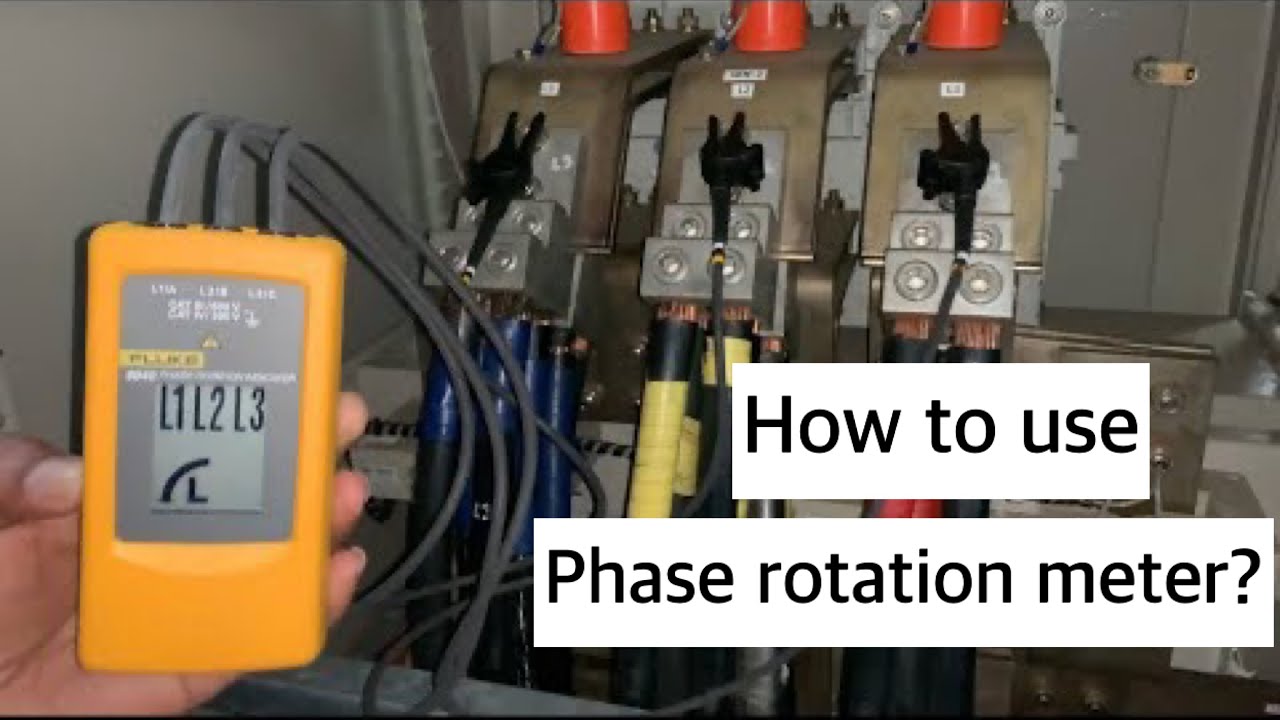

Phase Rotation Oneunit To determine the phase rotation of a three phase system, a sequence tester or a phase rotation meter can be used. these devices can detect the sequence of the voltage waveforms and indicate whether the system is rotating in the correct direction. If the rotation does not match that of the related fan or pump, the phase sequence is changed by reversing two phases. this can be done at the motor terminal box or at the source; or preferably at mcc or switchgear.

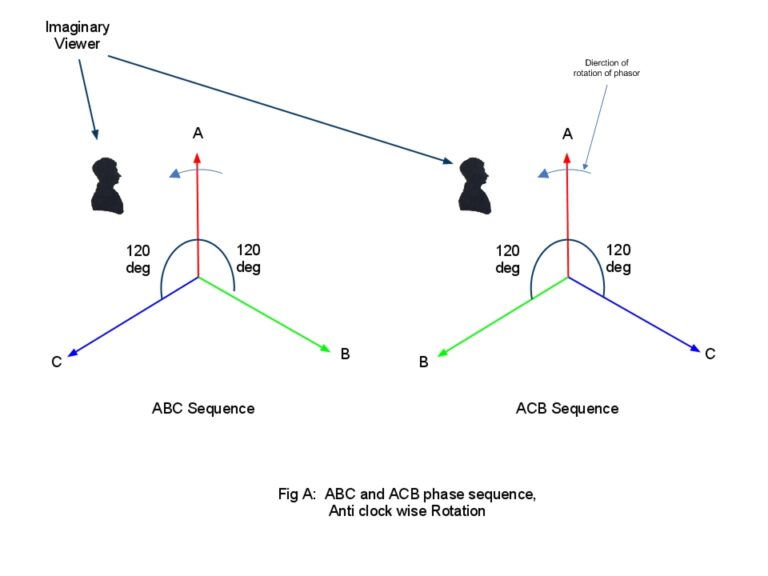

Phase Rotation Oneunit Phase rotation, or phase sequence, is the order in which the voltage waveforms of a polyphase ac source reach their respective peaks. Phase rotation is the order in which the voltage waveforms in a three phase electrical system reach their peaks. in any three phase system, three separate voltage waves cycle continuously, each offset from the next by 120 electrical degrees. Phase detector pd3129 • non metallic contact clip • for conductors with φ 2.4 to 17 mm core diameter • for use on 70 to 600 v lines (50 60 hz) • safely and easily check phase direction with absolutely no metal contact with conductors. Definition: in a three phase power system, the order in which each phase voltages attain a positive peak value is called phase sequence. the phase sequence is also known as phase rotation.

Phase Rotation Oneunit Phase detector pd3129 • non metallic contact clip • for conductors with φ 2.4 to 17 mm core diameter • for use on 70 to 600 v lines (50 60 hz) • safely and easily check phase direction with absolutely no metal contact with conductors. Definition: in a three phase power system, the order in which each phase voltages attain a positive peak value is called phase sequence. the phase sequence is also known as phase rotation. Phase rotation, or phase sequence, is the order in which the voltage waveforms of a polyphase ac source reach their respective peaks. for a three phase system, there are only two possible phase sequences: 1 2 3 and 3 2 1, corresponding to the two possible directions of alternator rotation. This article researches the technical approach for determining phase rotation, the tools employed in these measurements, and the practical suggestions for phase rotation in diverse applications ranging from industrial machinery to electric vehicle (ev) charging systems. The phase rotation meter model pr 1 is a compact and rugged meter designed to identify phase sequence on three phase systems and identify open de energized phases. Depending on the phase sequence we connect to these windings, we can have different rotation direction of the motor shaft. if the phases are connected in the wrong direction, the motor will rotate in the opposite direction that we wanted.

Phase Rotation Oneunit Phase rotation, or phase sequence, is the order in which the voltage waveforms of a polyphase ac source reach their respective peaks. for a three phase system, there are only two possible phase sequences: 1 2 3 and 3 2 1, corresponding to the two possible directions of alternator rotation. This article researches the technical approach for determining phase rotation, the tools employed in these measurements, and the practical suggestions for phase rotation in diverse applications ranging from industrial machinery to electric vehicle (ev) charging systems. The phase rotation meter model pr 1 is a compact and rugged meter designed to identify phase sequence on three phase systems and identify open de energized phases. Depending on the phase sequence we connect to these windings, we can have different rotation direction of the motor shaft. if the phases are connected in the wrong direction, the motor will rotate in the opposite direction that we wanted.

Phase Rotation Oneunit The phase rotation meter model pr 1 is a compact and rugged meter designed to identify phase sequence on three phase systems and identify open de energized phases. Depending on the phase sequence we connect to these windings, we can have different rotation direction of the motor shaft. if the phases are connected in the wrong direction, the motor will rotate in the opposite direction that we wanted.
