Flange Bolting Chart Pdf Mechanical Engineering Plumbing To do this, select the material and dimension of the pipe and as well as the possible parameters for the installation point: with or without valve, flange and gasket type. as a result, you are given the size and number of recommended bolts as well as the optimum tightening torque. Master flange joint integrity with this practical guide. learn proper bolting, gasket selection, troubleshooting leaks, and best practices for leak free piping systems.
Bray Typical Flange Bolting Pdf Screw Tools Flange installation: precise alignment for perfect bolting we break down the essential steps for accurately installing a flange, ensuring perfect alignment and secure bolting. You use the asme b16.5 flange bolt chart to select the correct bolt size, number, and length for each flange class. this chart helps you match your flange and bolt to the pressure and size requirements of your system. Getting the bolting right means selecting the correct gasket, achieving uniform gasket stress through proper torque sequence, and managing the relaxation that occurs during and after assembly. this guide covers the essential details that prevent flange leaks. Achieve a tight, long lasting seal in flanged piping systems. learn about different gasket types, essential bolting methods, and installation best practices to minimize leaks and maximize system integrity.

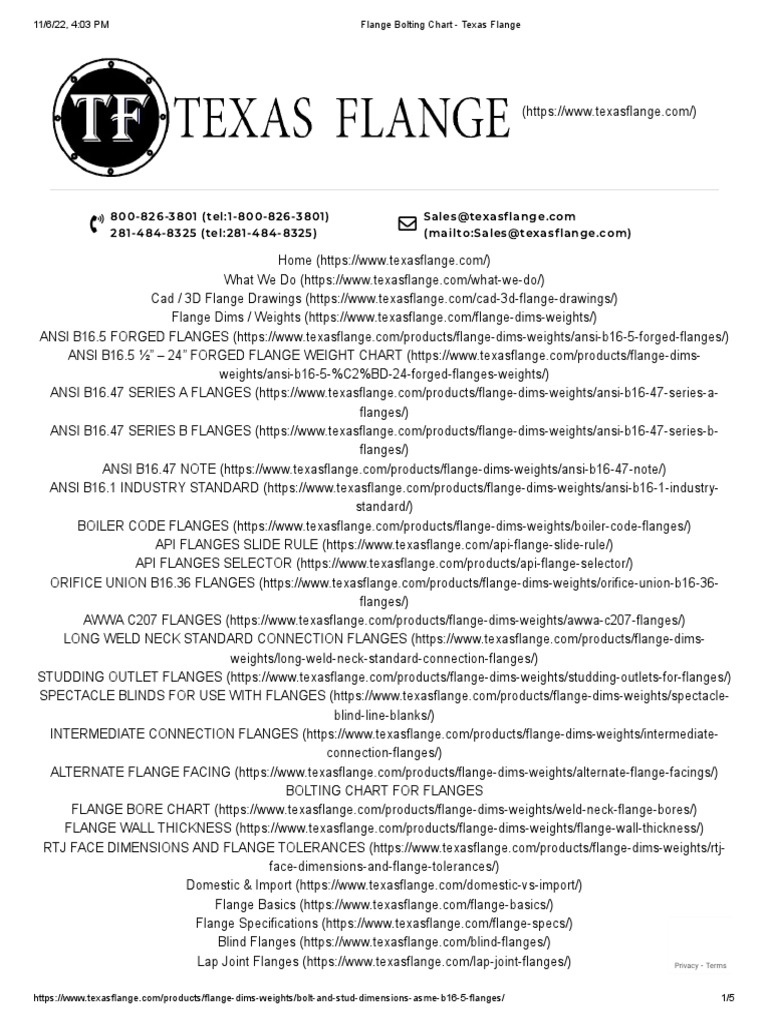

Flange Bolting Chart Texas Flange Pdf Mechanical Engineering Getting the bolting right means selecting the correct gasket, achieving uniform gasket stress through proper torque sequence, and managing the relaxation that occurs during and after assembly. this guide covers the essential details that prevent flange leaks. Achieve a tight, long lasting seal in flanged piping systems. learn about different gasket types, essential bolting methods, and installation best practices to minimize leaks and maximize system integrity. Each kit contains fasteners, nuts, washers and lock washers of the same material as your flange. contact our experts if you have questions about the best options for your application. the following chart shows the quantity and size of bolts or studs require for a particular flange size and class. Achieve a perfect flange seal every time. follow our detailed guide on proper component alignment and the essential cross pattern bolting sequence. In this guide, our experts tackle the steps of the best method to use. take care at all stages listed below. first cut or punch the bolt holes. cut the bolt holes slightly larger than the bolts to ensure proper seating, and never cut out a gasket by hammering material against the flange. Introduction proper bolt torquing is critical for achieving a leak free flange joint. incorrect torque can lead to gasket damage, flange warping, or insufficient sealing pressure. this guide covers best practices for flange bolt torquing.
