Schematic Diagram And Partition Process Of Octree Algorithm A Here's a short video showing octree collision detection in a 3d tile based world. 👉 implementation of the octree is available in the repo of my game engine: more. In this article, i will do my best to take you through the steps necessary to create an octree data structure through conceptual explanations, pictures, and code, and show you the considerations to be made at each step along the way.
Schematic Overview Of The Octree Data Structure And Its Serialization Octrees are commonly used for spatial partitioning of 3d point clouds. non empty leaf nodes of an octree contain one or more points that fall within the same spatial subdivision. octrees are a useful description of 3d space and can be used to quickly find nearby points. Octree is a tree data structure in which each internal node can have at most 8 children. like binary tree which divides the space into two segments, octree divides the space into at most eight part which is called as octanes. it is used to store the 3 d point which takes a large amount of space. With the default setting, the octree collision detection is about twice as fast than the brute force method. in order to better see the octree visualization, run the example for example with the following parameters:. Octree is a tree where each internal (non leaf) node has eight children. each node spans a particular space area, expressed as an axis aligned bounding box (available as box property of toctreenode).

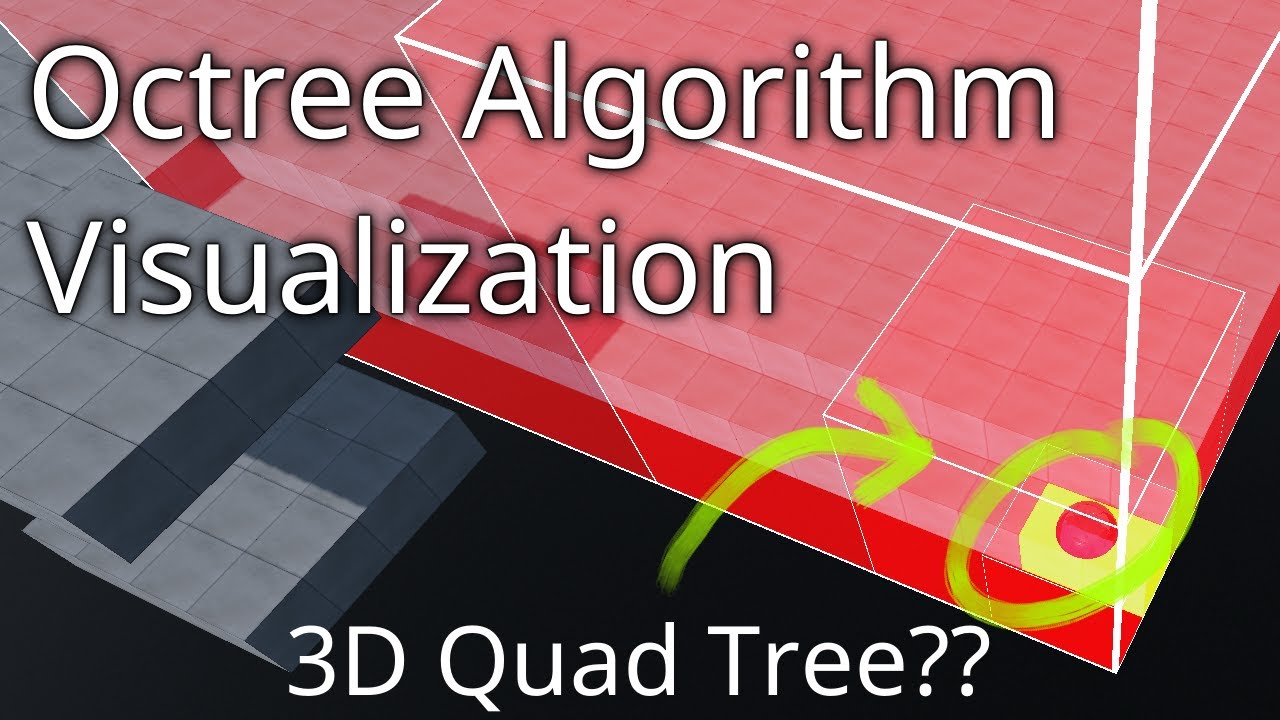

Octree Algorithm Visualization Explanation Youtube With the default setting, the octree collision detection is about twice as fast than the brute force method. in order to better see the octree visualization, run the example for example with the following parameters:. Octree is a tree where each internal (non leaf) node has eight children. each node spans a particular space area, expressed as an axis aligned bounding box (available as box property of toctreenode). Octrees are a type of spatial data structure used to efficiently organize and query large datasets in three dimensional space. they are particularly useful in applications where fast rendering, collision detection, and spatial searching are critical. Octrees offer a simple way to computer isosurfaces efficiently. it helps to discard large parts of the volume where the isosurface is guaranteed to not be. each leaf holds the data range information for the eight nodes of the cell. if the isosurface crosses an edge of a cell, that edge will be visited exactly four times. Octrees are the three dimensional analog of quadtrees. the word is derived from oct (greek root meaning "eight") tree. octrees are often used in 3d graphics and 3d game engines. each node in an octree subdivides the space it represents into eight octants. Figure 4.1: workflow of octree algorithms following the natural order of execution. the diagram partitions the algorithms into processing units (cpu or gpu) intended for implementation.
Octree Modeling A Octree Decomposition Of Object B Octree Octrees are a type of spatial data structure used to efficiently organize and query large datasets in three dimensional space. they are particularly useful in applications where fast rendering, collision detection, and spatial searching are critical. Octrees offer a simple way to computer isosurfaces efficiently. it helps to discard large parts of the volume where the isosurface is guaranteed to not be. each leaf holds the data range information for the eight nodes of the cell. if the isosurface crosses an edge of a cell, that edge will be visited exactly four times. Octrees are the three dimensional analog of quadtrees. the word is derived from oct (greek root meaning "eight") tree. octrees are often used in 3d graphics and 3d game engines. each node in an octree subdivides the space it represents into eight octants. Figure 4.1: workflow of octree algorithms following the natural order of execution. the diagram partitions the algorithms into processing units (cpu or gpu) intended for implementation.
