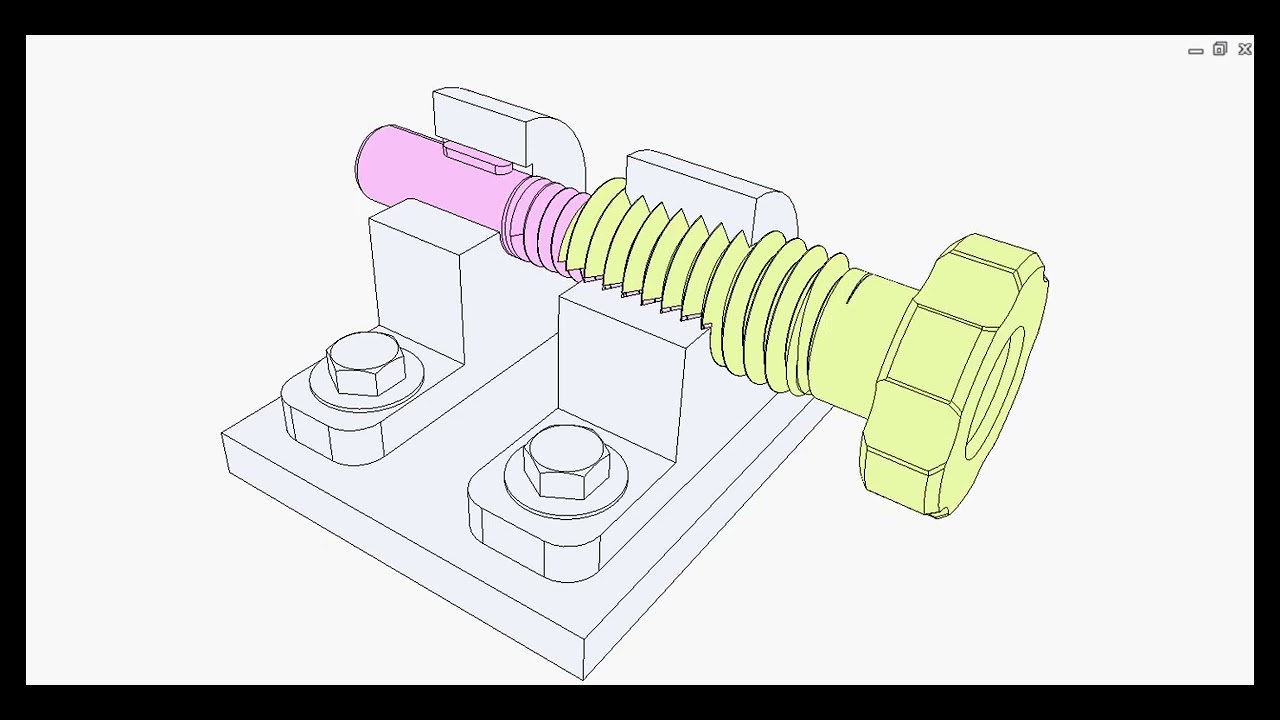

Nut Screw Differential Mechanism Mechamechanisms External thread on the pink nut is m8x1.25 (right hand). external thread on the green knob is m14x1.5 (right hand). the brown pin is for preventing rotation of the pink nut. turn the orange screw for rough adjustment: the orange screw moves 0.8 mm for 1 rev. of the screw. As the spindle rotates, the space between the nuts changes based on the difference between the threads. these mechanisms allow extremely small adjustments using commonly available screws.
Nut Screw Differential Mechanism Mechamechanisms Download scientific diagram | typical mechanisms of the conventional 2 dof differential screw mechanisms. (a), (b) and (c) represent the serial type of nut rotational drive, the serial. What happens if you put a screw inside a screw? today we're kicking off a regular series on interesting mechanisms, starting with the differential screw; a very compact mechanism for generating very fine motions. From this example, we have Δs nut = 1.75 1.5 = 0.25 mm. that means the nut travels 0.25 mm per each turn of the spindle. as shown in the above picture, the distance between 2 marks is 2.5 mm. then we need to turn the spindle 10 revolutions so that the nut will travel 2.5 mm. Screw is the mechanism that is used for making small, precise adjustments to the spacing between two objects. the accuracy of the measurement depends on the least count of the instrument. for instance, the micrometer adjuster uses a nut sleeve that has varying pitches on the inner and outer thread.
Nut Screw Differential Mechanism Mechamechanisms From this example, we have Δs nut = 1.75 1.5 = 0.25 mm. that means the nut travels 0.25 mm per each turn of the spindle. as shown in the above picture, the distance between 2 marks is 2.5 mm. then we need to turn the spindle 10 revolutions so that the nut will travel 2.5 mm. Screw is the mechanism that is used for making small, precise adjustments to the spacing between two objects. the accuracy of the measurement depends on the least count of the instrument. for instance, the micrometer adjuster uses a nut sleeve that has varying pitches on the inner and outer thread. This mechanism is not new, originating from at least 1817. if you need fine adjustments on a budget, it’s a very elegant way to achieve it and you don’t even need a lathe to make your own. A differential screw uses a spindle with two screw threads of differing leads (in case of a single lead equal to the thread pitch), and possibly opposite handedness, on which two nuts move. as the spindle rotates, the space between the nuts changes based on the difference between the threads. Thread on the orange screw is m5x0.8 (right hand). external thread on the green knob is m8x1.25 (right hand). the orange screw moves 1.25 0.8 = 0.45 mm during 1 rev. of the knob. it is possible to reduce this difference by choosing appropriate leads. We shall therefore analyse the jack shown here to deduce the general effect of friction on screw thread behaviour. the jack's screw is fixed; the nut is rotated by a spanner and translates vertically.
