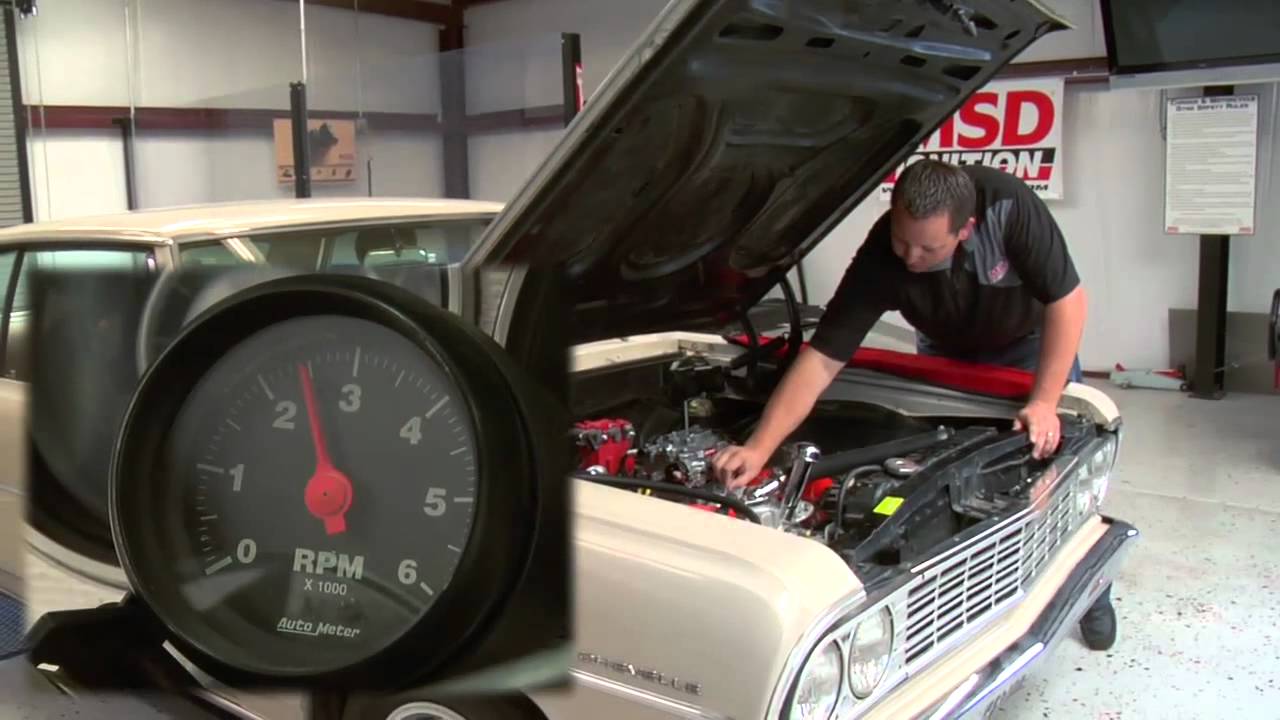

Msd Ignition Launch Rev Limiter Modern Racing Let us help you repair your car with helpful tips and step by step instructions to get the job done right. … more. Remove the black cover next to the led by prying up with the supplied screwdriver. 2. locate the dials under the cover. the left dial is for adjusting in 1,000 rpm increments, while the right dial is for 100 rpm increments. 3. set the dials to the desired rpm limit.
Msd Ignition Launch Rev Limiter Modern Racing Hold the gray tach output wire to ground for seven seconds. (at least five seconds.) release the wire from ground before ten seconds have passed. to confirm the process has worked, cycle turn the key on. the tachometer should sweep to the rpm limit set on the ignition. All you do is change the resistance in the rev limiter circuit,how you do it is up to you and how you hide it.personally instead of cheating if all they do is look at the chip is check many because with man tolerances some with the same markings or even lower will rev higher.msd has a chart showing resistance to rpm limit correlation.many "bad. Note: this rev control must be used with the msd 6t, 6tn or 6 hvc ignition control. the rev control will operate with 4, 6 or 8 cylinder engines. it is programmed at the factory for 8 cylinder engines, but can be easily modified. Your box needs to be mounted in a place that is away from extreme heat and liquids. the most common places are in the glove box, down by the ecu, or (if you have relocated your battery to the trunk) where the battery would go.
Msd Ignition Msd8768 Marine Soft Touch Rev Control Rev Limiter 8768 Note: this rev control must be used with the msd 6t, 6tn or 6 hvc ignition control. the rev control will operate with 4, 6 or 8 cylinder engines. it is programmed at the factory for 8 cylinder engines, but can be easily modified. Your box needs to be mounted in a place that is away from extreme heat and liquids. the most common places are in the glove box, down by the ecu, or (if you have relocated your battery to the trunk) where the battery would go. There are two adjustable rev limits that you can adjust; the max limit and the two step limit. both limits are adjusted in 100 rpm increments by turning the rotary switches on the side of the ignition (figure 4). View online or download the msd 64253cr digital 6al ignition control instructions pdf. learn about the features and use cases of this high performance ignition control unit, including rev limiter verification, adjustable rev limit, and compatibility with multiple ignition systems. With the msd 8732 properly wired, you can now program the rev limiter to your desired rpm limit using the supplied software or control interface. follow the manufacturer’s instructions for programming and adjusting the msd 8732 for optimal performance. Multiple sparks msd produces full power multiple sparks for each firing of a plug. the number of multiple sparks that occur decreases as rpm increases, ho ever the spark series always lasts for 20° of crankshaft rotation. above 3,000 rpm there is simply not enough “time” to fire.
Msd Ignition 6al Digital Ignition Control W Rev Limiter Red There are two adjustable rev limits that you can adjust; the max limit and the two step limit. both limits are adjusted in 100 rpm increments by turning the rotary switches on the side of the ignition (figure 4). View online or download the msd 64253cr digital 6al ignition control instructions pdf. learn about the features and use cases of this high performance ignition control unit, including rev limiter verification, adjustable rev limit, and compatibility with multiple ignition systems. With the msd 8732 properly wired, you can now program the rev limiter to your desired rpm limit using the supplied software or control interface. follow the manufacturer’s instructions for programming and adjusting the msd 8732 for optimal performance. Multiple sparks msd produces full power multiple sparks for each firing of a plug. the number of multiple sparks that occur decreases as rpm increases, ho ever the spark series always lasts for 20° of crankshaft rotation. above 3,000 rpm there is simply not enough “time” to fire.
