What Is Sequence Motor Control Circuit Infoupdate Org After 10 seconds motor 2 must start rotating automatically. 10 seconds after motor 2 has started rotating, motor 1 must stop rotating, motor 2 must continue running .more. The document provides instructions for an exercise to create a motor start sequence using control interlocks. students are asked to: 1) complete the current flow diagram showing the control circuit.

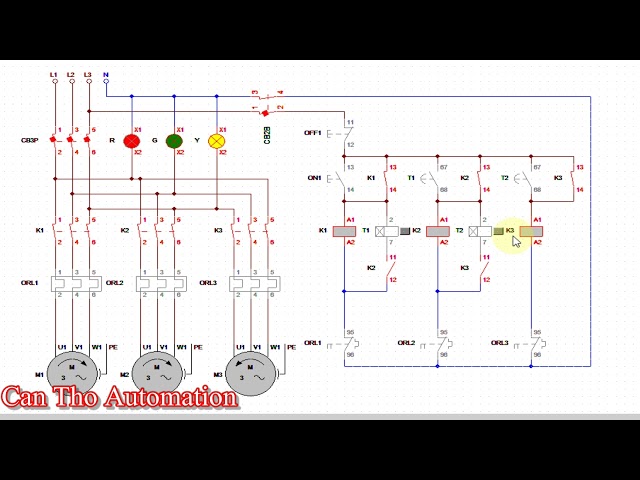

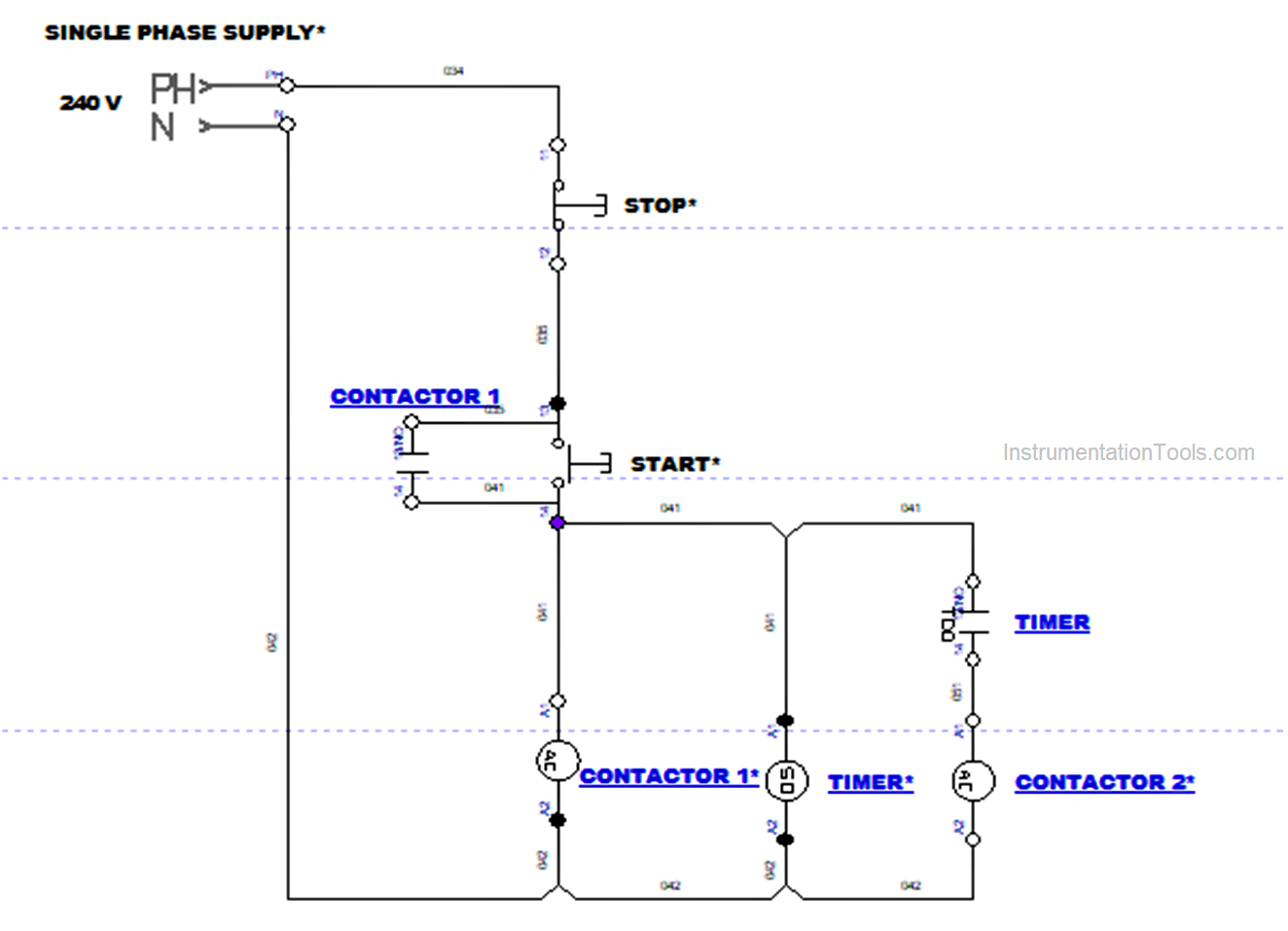

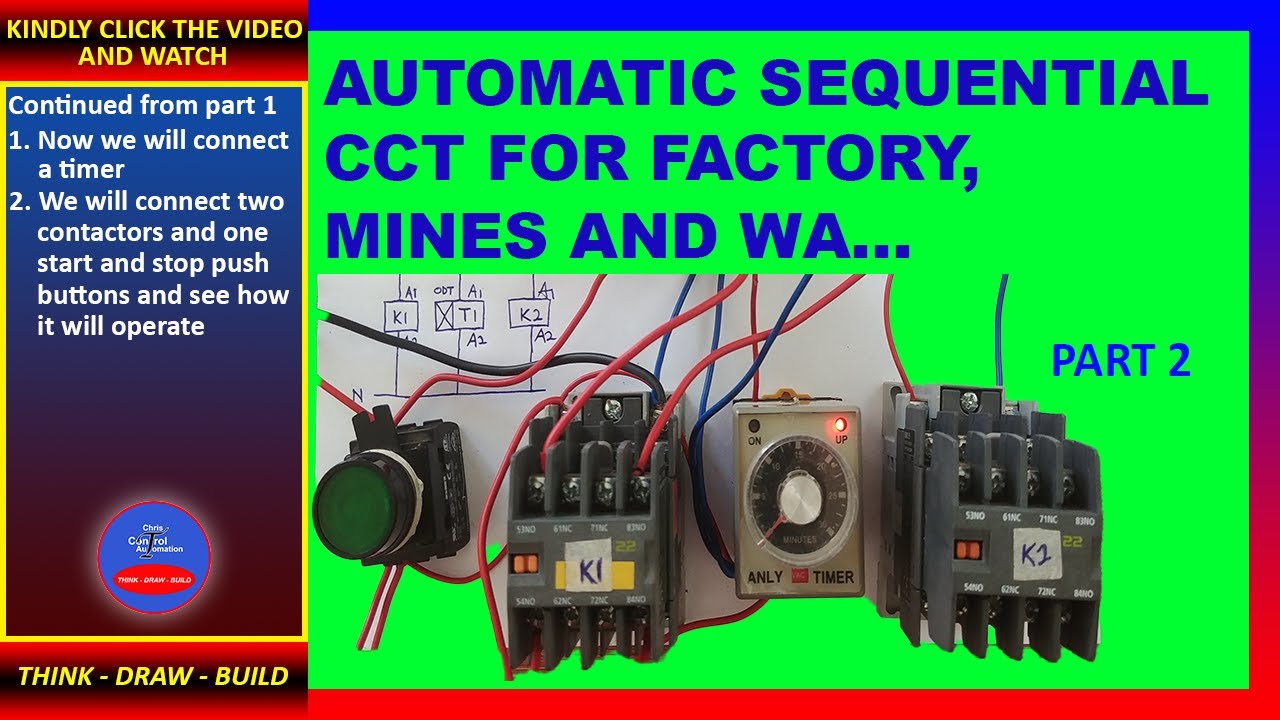

What Is Sequence Motor Control Circuit Infoupdate Org Motor 2 must start automatically 10 seconds after motor 1 has started rotating.😁😁😁😁 sequence are easy. lnkd.in egzgrt7e. Artisan jul 26 hello my fellow artisans ,i need help with this motor sequence control circuit below. * when the start button is activated ,motor 1 must start rotating . * after 5 seconds motor 2 can be started by activating the same start button and motor 1 must keep on rotating *then 5 seconds after motor 2 has started rotating ,. This sequential circuit diagram is designed to operate three motors in sequence using on and off buttons to control automatically the starting and stopping operation of each three phase motor with the help of timers. Relay timers and contactors are used in a sequence motor control circuit to switch on motors sequentially, meaning that one motor cannot start before certain other motors have started. in this lesson, we'll talk about utilizing contactors and timers to regulate the sequence of events.
Electrician Sequence Image Next Generation Mod For C C Yuri S This sequential circuit diagram is designed to operate three motors in sequence using on and off buttons to control automatically the starting and stopping operation of each three phase motor with the help of timers. Relay timers and contactors are used in a sequence motor control circuit to switch on motors sequentially, meaning that one motor cannot start before certain other motors have started. in this lesson, we'll talk about utilizing contactors and timers to regulate the sequence of events. Hi guys. this is a video by bafana. a full video link can be found on tik tok.this video is posted with his permission. vt.tiktok zsaayd7am. It details the objectives, technical information on sequential motor control circuits, and a bill of materials listing the electrical components needed to build a manual sequential motor control circuit, including three motors, pushbuttons, contactors, overload relays, and other devices. Any electrician who's familiar with the sequence starters (motor): i've worked it out,but i'm not 100% sure of my control circuit push start button. Anonymous. pls help with the following sequence. two motors start sametime, after 10 seconds one motor stop automatically and after another 10 seconds.
Artisan Auto Electrician Job In Limpopo Pdf Hi guys. this is a video by bafana. a full video link can be found on tik tok.this video is posted with his permission. vt.tiktok zsaayd7am. It details the objectives, technical information on sequential motor control circuits, and a bill of materials listing the electrical components needed to build a manual sequential motor control circuit, including three motors, pushbuttons, contactors, overload relays, and other devices. Any electrician who's familiar with the sequence starters (motor): i've worked it out,but i'm not 100% sure of my control circuit push start button. Anonymous. pls help with the following sequence. two motors start sametime, after 10 seconds one motor stop automatically and after another 10 seconds.
Sequence Motor Cotrol Circuit Pdf Wiring Draw Any electrician who's familiar with the sequence starters (motor): i've worked it out,but i'm not 100% sure of my control circuit push start button. Anonymous. pls help with the following sequence. two motors start sametime, after 10 seconds one motor stop automatically and after another 10 seconds.
