Mos Capacitor Inversion Mode Explained

Mosfet Mos Capacitor Inversion Mode Electrical Engineering Stack
Mosfet Mos Capacitor Inversion Mode Electrical Engineering Stack

Mosfet Mos Capacitor Inversion Mode Electrical Engineering Stack Baker suggests using the inversion mode capacitor to avoid the additional series resistance. the inversion mode capacitor has an additional "feature" that it has more overall charge at the same voltage due to the formation of an inversion layer. An mos transistor (fig. 5–2) is an mos capacitor with two pn junctions flanking the capacitor. this transistor structure is often a better structure for studying the mos capacitor properties than the mos capacitor itself as explained in section 5.5.

Mosfet Inversion Vs Accumulation Mode Mos Capacitor Electrical
Mosfet Inversion Vs Accumulation Mode Mos Capacitor Electrical

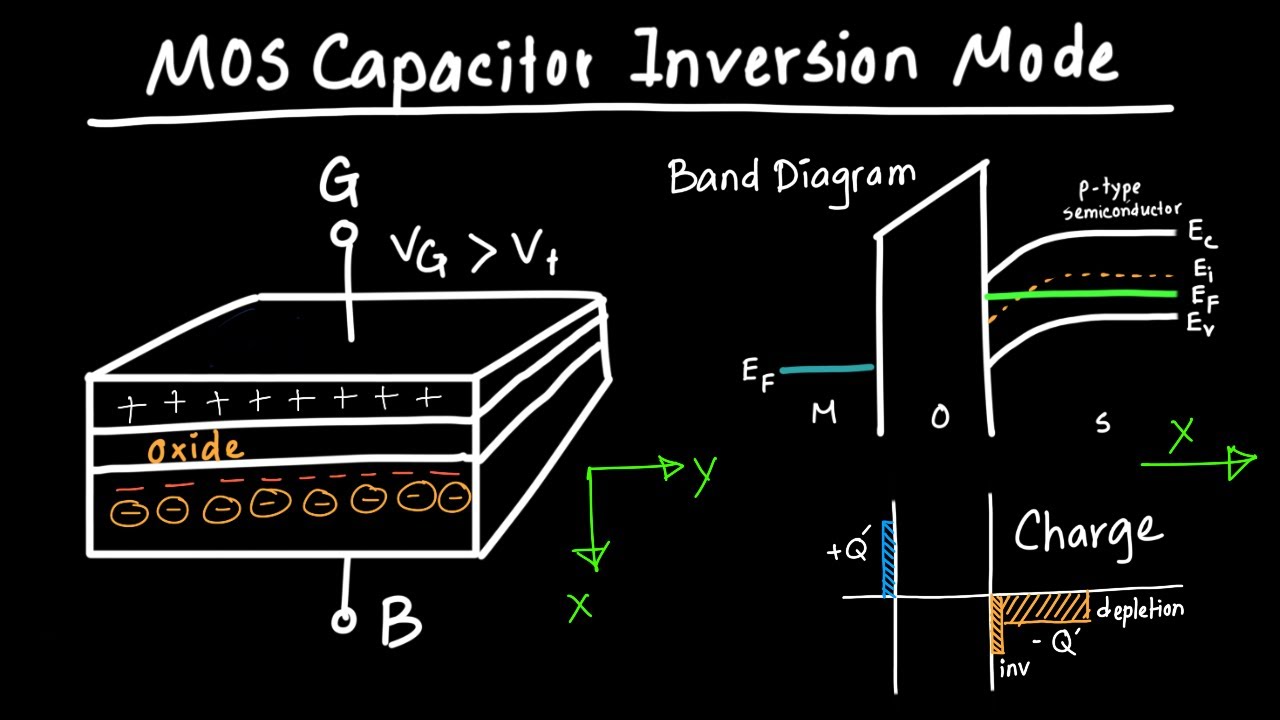

Mosfet Inversion Vs Accumulation Mode Mos Capacitor Electrical The document discusses the operation of mos capacitors and mosfets, detailing how the channel current is controlled by gate voltage and the different modes of operation: flat band, accumulation, depletion, and inversion. The mos band diagram illustrates how the energy bands of a metal oxide semiconductor (mos) capacitor bend under different gate voltages. it helps explain carrier behavior in accumulation, depletion, and inversion regions, which are essential for mosfet operation. An n channel enhancement mode mosfet fabricated on a p type substrate operates through three fundamental bias regions: accumulation, depletion, and inversion, where the surface carrier distribution and gate to substrate capacitance vary as a function of the applied gate voltage. What inversion mode means, what the band diagram looks like in the semiconductor, as well as the full mos structure and what voltage we need to apply to put the mos capacitor into.

Mosfet Inversion Vs Accumulation Mode Mos Capacitor Electrical
Mosfet Inversion Vs Accumulation Mode Mos Capacitor Electrical

Mosfet Inversion Vs Accumulation Mode Mos Capacitor Electrical An n channel enhancement mode mosfet fabricated on a p type substrate operates through three fundamental bias regions: accumulation, depletion, and inversion, where the surface carrier distribution and gate to substrate capacitance vary as a function of the applied gate voltage. What inversion mode means, what the band diagram looks like in the semiconductor, as well as the full mos structure and what voltage we need to apply to put the mos capacitor into. F. physical interpretation of mos capacitance: inversion · for vgb > vtn, the small signal gate charge is mirrored in the electron inversion layer since the bulk depletion layer is constant. Mos transistor operation: inversion when v gs > vt0, inversion layer forms source and drain connected by conducting n type layer (for nmos) conducting p type layer in pmos. The linear proportionality can be explained by the fact that a gate voltage variation causes a charge variation in the inversion layer. the proportionality constant between the charge and the applied voltage is therefore expected to be the gate oxide capacitance. Capacitance decreases as w grows until inversion is reached. charge in depletion layer of mos capacitor increases as ~ (φs)1 2 so depletion capacitance decreases as the inverse. if signal applied to make measurement is too fast, inversion layer carriers can’t respond and do not contribute.

Mosfet Inversion Vs Accumulation Mode Mos Capacitor Electrical
Mosfet Inversion Vs Accumulation Mode Mos Capacitor Electrical

Mosfet Inversion Vs Accumulation Mode Mos Capacitor Electrical F. physical interpretation of mos capacitance: inversion · for vgb > vtn, the small signal gate charge is mirrored in the electron inversion layer since the bulk depletion layer is constant. Mos transistor operation: inversion when v gs > vt0, inversion layer forms source and drain connected by conducting n type layer (for nmos) conducting p type layer in pmos. The linear proportionality can be explained by the fact that a gate voltage variation causes a charge variation in the inversion layer. the proportionality constant between the charge and the applied voltage is therefore expected to be the gate oxide capacitance. Capacitance decreases as w grows until inversion is reached. charge in depletion layer of mos capacitor increases as ~ (φs)1 2 so depletion capacitance decreases as the inverse. if signal applied to make measurement is too fast, inversion layer carriers can’t respond and do not contribute.
