Circular Convolution 1 Pdf Audio tracks for some languages were automatically generated. learn more. an example for circular convolution is discussed. Generally, there are two methods, which are adopted to perform circular convolution and they are −. matrix multiplication method. let $x 1 (n)$ and $x 2 (n)$ be two given sequences. the steps followed for circular convolution of $x 1 (n)$ and $x 2 (n)$ are. take two concentric circles.
Expt 5 Circular Shift And Circular Convolution Linaer Cir Con Pdf If we define convolution using the repetition assumption, we get what is known as circular convolution. the equation is exactly the same as (3.1); all that has changed is the interpretation of negative sample indices, which now wrap around to the end of the signal. This document contains two examples of calculating linear and circular convolution of signals. in the first example, it calculates the linear convolution of two signals using the z transform and the definition of convolution. In lecture 19, we will learn highly efficient algorithms for computing the dft. because of these algorithms, it is computationally efficient to implement a linear convolution of two sequences by computing the dfts, multiplying them, and computing the idft. Mod4 lec12: validating the example for designing the digital iir low pass filter using matlab 48.

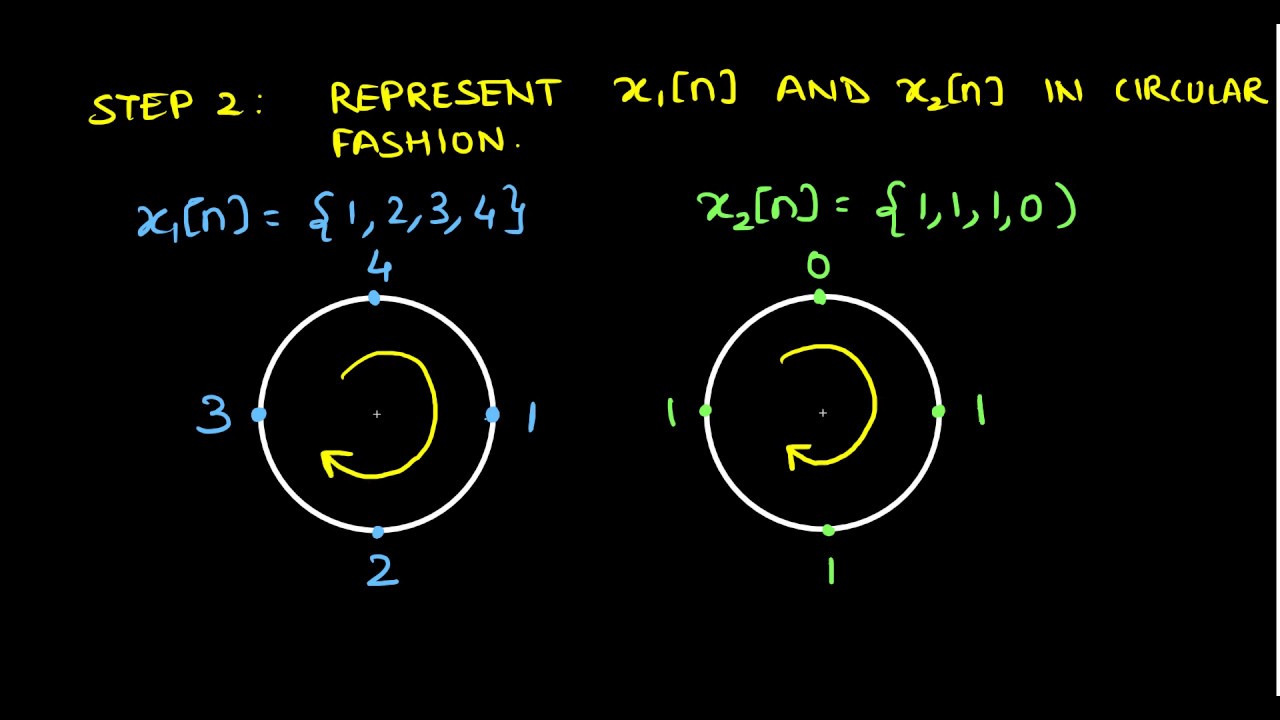

Circular Convolution Pdf In lecture 19, we will learn highly efficient algorithms for computing the dft. because of these algorithms, it is computationally efficient to implement a linear convolution of two sequences by computing the dfts, multiplying them, and computing the idft. Mod4 lec12: validating the example for designing the digital iir low pass filter using matlab 48. In this video, we have discussed how to calculate circular convolution using concentric circle method with the help of an example. Believe it or not, you can compute linear convolution using circular convolution — and in this post, we’ll show you how using the matrix method! let’s take an example and go through the steps. In this post we will focus on an operation called circular convolution which is strongly related to the conventional convolution (also called linear convolution) we have described before. Circular convolution multiplying the dft means circular convolution of the time domain signals: y[n] = h[n] ~ x[n] $ y [k] = h[k]x[k]; circular convolution (h[n] ~ x[n]) is de ned like this: n 1 n 1 h[n] ~ x[n] x = x[m]h [((n m))n] = x h[m]x [((n m))n] m=0.
Circular Convolution Pdf In this video, we have discussed how to calculate circular convolution using concentric circle method with the help of an example. Believe it or not, you can compute linear convolution using circular convolution — and in this post, we’ll show you how using the matrix method! let’s take an example and go through the steps. In this post we will focus on an operation called circular convolution which is strongly related to the conventional convolution (also called linear convolution) we have described before. Circular convolution multiplying the dft means circular convolution of the time domain signals: y[n] = h[n] ~ x[n] $ y [k] = h[k]x[k]; circular convolution (h[n] ~ x[n]) is de ned like this: n 1 n 1 h[n] ~ x[n] x = x[m]h [((n m))n] = x h[m]x [((n m))n] m=0.
Circular Convolution Pdf In this post we will focus on an operation called circular convolution which is strongly related to the conventional convolution (also called linear convolution) we have described before. Circular convolution multiplying the dft means circular convolution of the time domain signals: y[n] = h[n] ~ x[n] $ y [k] = h[k]x[k]; circular convolution (h[n] ~ x[n]) is de ned like this: n 1 n 1 h[n] ~ x[n] x = x[m]h [((n m))n] = x h[m]x [((n m))n] m=0.
