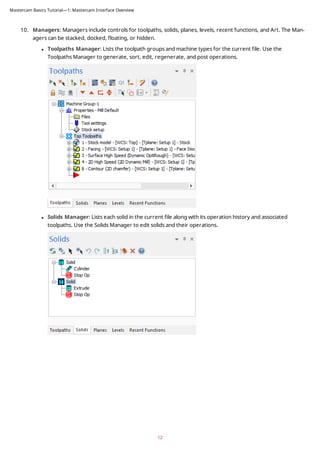

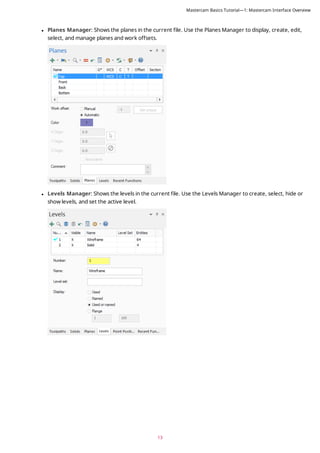

Mastercam Basics Tutorial Pdf Tab Gui Icon Computing This session covers the basics of "construction planes" and managing views. The mastercam interface consists of several key elements that allow users to access commands and view models. these elements include tabs and toolbars for commands, managers that list toolpaths, solids, planes and levels, and a graphics window to view models.
Mastercam Basics Tutorial Pdf All mastercam tutorials require you to configure mastercam to work in a default metric or inch configuration. the tutorial provides instructions for loading the appropriate configuration file. How to create construction plane in mastercam 2025, wcs, g view, c plane and t planes in mastercam nx12 cad cam & mastercam 2025 593 subscribers subscribe. All mastercam tutorials require you to configure mastercam to work in a default metric or inch configuration. the tutorial provides instructions for loading the appropriate configuration file. It describes various options for setting construction planes, including using predefined views, selecting entities, and rotating planes. additionally, it explains the importance of the construction origin and the ability to create new construction plans as needed.
Mastercam Basics Tutorial Pdf All mastercam tutorials require you to configure mastercam to work in a default metric or inch configuration. the tutorial provides instructions for loading the appropriate configuration file. It describes various options for setting construction planes, including using predefined views, selecting entities, and rotating planes. additionally, it explains the importance of the construction origin and the ability to create new construction plans as needed. Setting the gview in mastercam aligns the view with a custom plane, allowing users to work directly and accurately on the part's face. this setting aids in precise visualization and manipulation, especially beneficial when creating or adjusting detailed features on specific surfaces. You can create planes (c and t) using several methods including solid faces, geometry, existing planes, and even existing views, or rotating the planes by a user defined angle. Toolpaths: use plane, levels, tool planes, construction planes to assist in creating contour, pocket and drill toolpaths. use toolpath tranform to rotate toolpaths. They are particularly significant because they interact with custom planes to ensure that the construction plane (cplane) and tool plane (tplane) orientations follow a defined logic according to the selected gview, which is essential for both accurate geometry creation and toolpath planning .
Mastercam Basics Tutorial Pdf Setting the gview in mastercam aligns the view with a custom plane, allowing users to work directly and accurately on the part's face. this setting aids in precise visualization and manipulation, especially beneficial when creating or adjusting detailed features on specific surfaces. You can create planes (c and t) using several methods including solid faces, geometry, existing planes, and even existing views, or rotating the planes by a user defined angle. Toolpaths: use plane, levels, tool planes, construction planes to assist in creating contour, pocket and drill toolpaths. use toolpath tranform to rotate toolpaths. They are particularly significant because they interact with custom planes to ensure that the construction plane (cplane) and tool plane (tplane) orientations follow a defined logic according to the selected gview, which is essential for both accurate geometry creation and toolpath planning .
Mastercam Basics Tutorial Pdf Computer Peripherals Computing Toolpaths: use plane, levels, tool planes, construction planes to assist in creating contour, pocket and drill toolpaths. use toolpath tranform to rotate toolpaths. They are particularly significant because they interact with custom planes to ensure that the construction plane (cplane) and tool plane (tplane) orientations follow a defined logic according to the selected gview, which is essential for both accurate geometry creation and toolpath planning .
