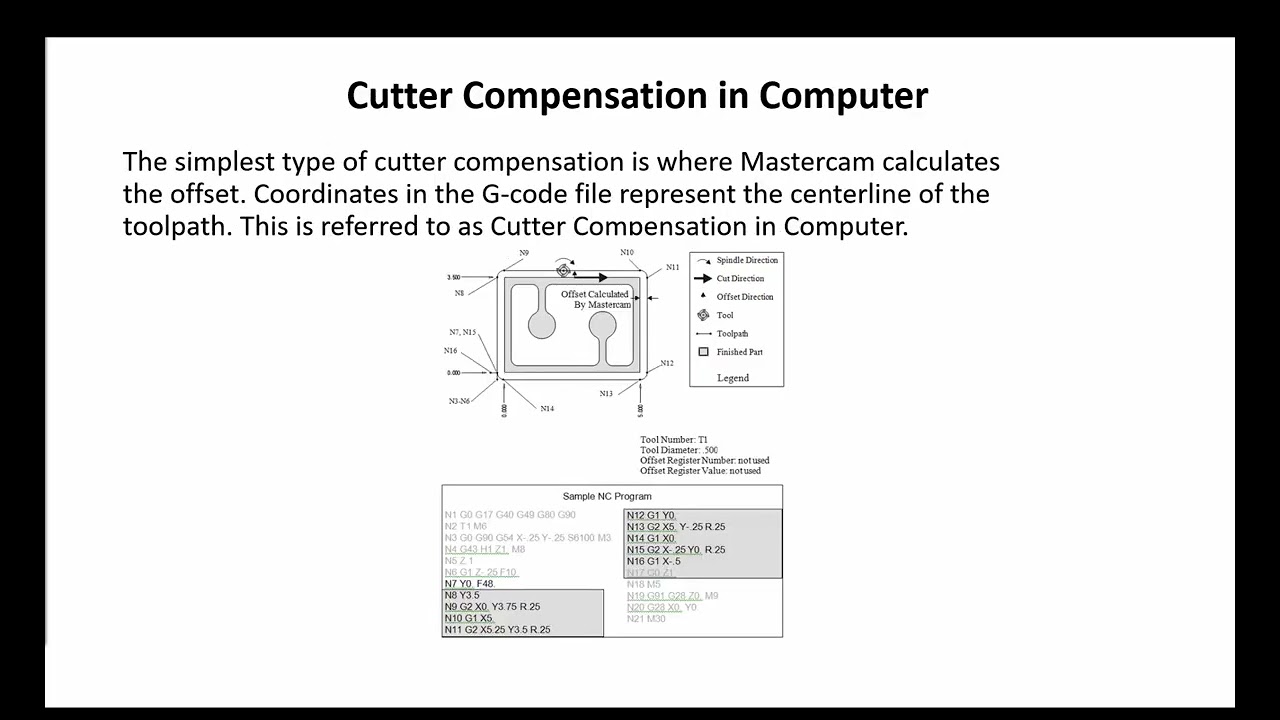

Enabling Cutter Compensation Mecsoft Corporation Compensation is used to offset the toolpath from the selected geometry depending on the diameter or radius of the cutter. the tool can be offset to the left or the right of the geometry relative to the direction of travel. Sherman snyder from mlc cad systems delves into the intricacies of cutter compensation within mastercam, covering various parameters and their implications on toolpaths. the discussion includes options like computer, control, wear, reverse wear, and off, along with compensation direction choices.
Mastercam Cutter Compensation The explanation encompasses scenarios involving different tool sizes, the impact of control settings on geometry, and how compensation types, like wear and reverse wear, affect toolpath. In this lesson, you will learn about the 2d toolpaths in mastercam mill. these toolpaths are also used for router, lathe with mill and and mill turn. for wall finishing where you want to clean out corners with a smaller tool, see: dynamic contour. these are some of the most commonly used toolpaths. Use the cutter compensation page to configure the options that are supported by your control. important: when compensation type is off, mastercam does not take any tool dimensions into account when computing the toolpath. If i program to use control for cutter compensation i have a couple of issues. the first is that when the program first starts to run it will drive the z axis below the set z zero. the second is if i put a diameter in the tool chart it will give an offset error or make mickey mouse ears.
Mastercam Cutter Compensation Use the cutter compensation page to configure the options that are supported by your control. important: when compensation type is off, mastercam does not take any tool dimensions into account when computing the toolpath. If i program to use control for cutter compensation i have a couple of issues. the first is that when the program first starts to run it will drive the z axis below the set z zero. the second is if i put a diameter in the tool chart it will give an offset error or make mickey mouse ears. About press copyright contact us creators advertise developers terms privacy policy & safety how works test new features nfl sunday ticket © 2025 google llc. In mastercam, there is a known bug with the cutter comp when using control. what i usually do, is use cutter comp off, and then add the g41 g42 g40 code as needed. So one advantage of mastercam's wear compensation is that you can use a .375 end mill to interpolate a .390 hole. don't think there is a way to do this with blue print programming unless the control will let you turn the cutter compensation on with a z move. Sherman snyder from mlc cad systems delves into the intricacies of cutter compensation within mastercam covering various parameters and their implications on toolpaths.
