Steam Tables Pdf Presented by aee, instructed by dr. eric woodroof, view short video to understand the basics of steam tables for orientation, heat flow calculations for steam, and enthalpy applications. Learn how to read saturated and superheated steam tables. includes animations for quick and easy understanding.
How To Read A Steam Table Tlv Join aee login decorative svg added to bottom m – steam table basics videos browse site: topics. The review and application of steam tables is bolstered through examples and case studies. this 8 pdh online course is applicable to engineers of all disciplines, as well as technicians, facilities managers and executives who are not intimately familiar with thermodynamics principles and practices. Dive into the world of steam tables with our comprehensive handbook, covering everything from the basics to advanced applications. What is the temperature of steam with a specific volume of 0.500 m3 kg at 5 bar? we know the properties of the two phases. what is the property of the overall mixture? define the quality. what is the pressure and specific internal energy of a mixture of steam and water at 88 °c and a quality of 80%?.

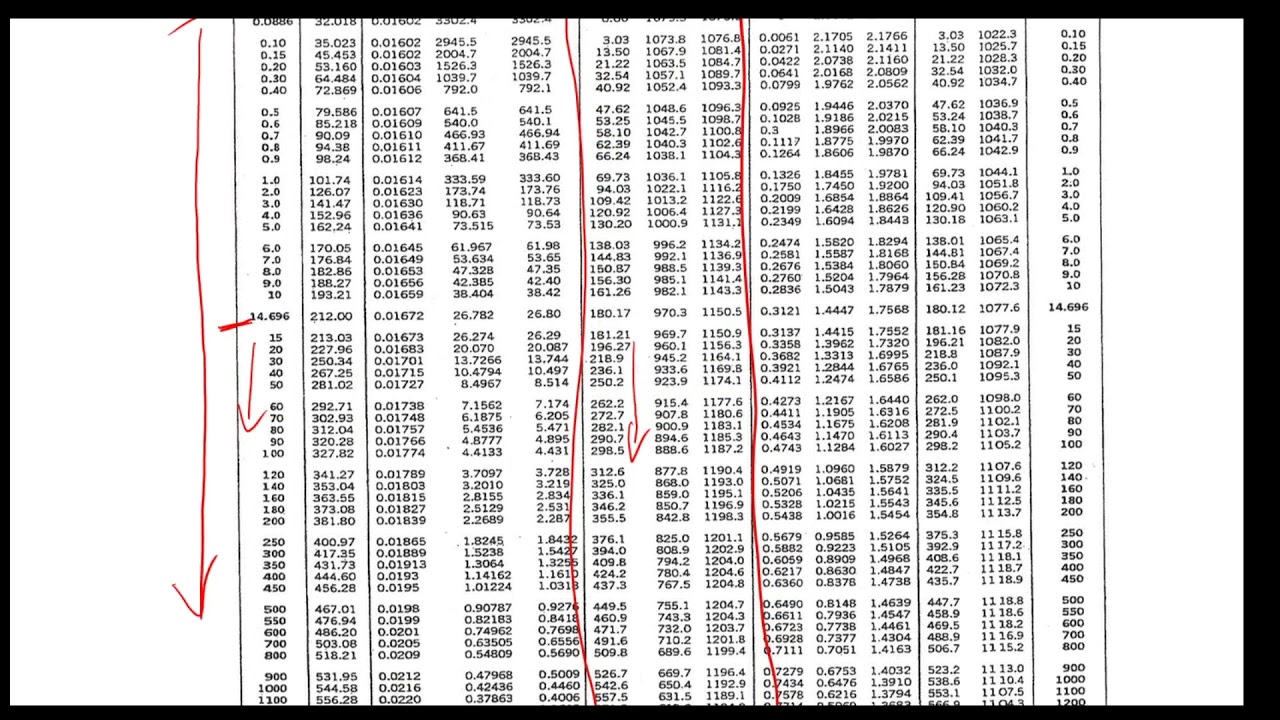

M Steam Table Basics Youtube Dive into the world of steam tables with our comprehensive handbook, covering everything from the basics to advanced applications. What is the temperature of steam with a specific volume of 0.500 m3 kg at 5 bar? we know the properties of the two phases. what is the property of the overall mixture? define the quality. what is the pressure and specific internal energy of a mixture of steam and water at 88 °c and a quality of 80%?. How the table is used in addition to determining pressure temperature relationships, you can compute the amount of steam which will be condensed by any heating unit of known btu output. conversely, the table can be used to determine btu output if steam condensing rate is known. This document provides an overview of four types of steam tables and examples of how to use each one. it describes table 1 for saturated liquids and steam, table 2 for saturation pressure, table 3 for superheated steam, and table 4 for subcooled liquids. Experimentally, accurately determined, values are tabulated in tables that are called as steam tables. these values form the basis for many calculations concerned with steam engineering. Preview text steam tables tutorial (illustration of steam tables process overview) fundamentals of engineering thermodynamics 9 th edition.
Steam Tables Engineering Prep How the table is used in addition to determining pressure temperature relationships, you can compute the amount of steam which will be condensed by any heating unit of known btu output. conversely, the table can be used to determine btu output if steam condensing rate is known. This document provides an overview of four types of steam tables and examples of how to use each one. it describes table 1 for saturated liquids and steam, table 2 for saturation pressure, table 3 for superheated steam, and table 4 for subcooled liquids. Experimentally, accurately determined, values are tabulated in tables that are called as steam tables. these values form the basis for many calculations concerned with steam engineering. Preview text steam tables tutorial (illustration of steam tables process overview) fundamentals of engineering thermodynamics 9 th edition.
