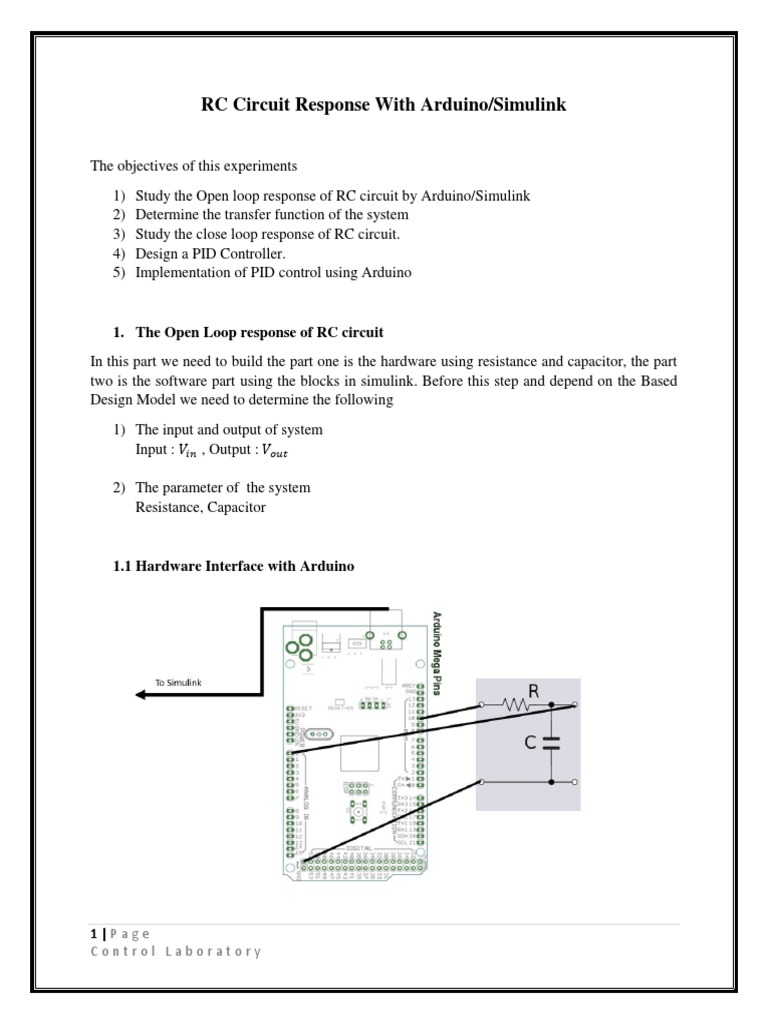

Rc Circuit Response With Arduino Simulink Pdf In this lab, we will be measuring the time response of the voltage across a capacitor in an rc circuit, such as that of figure 03.1. Explore the transient response of a series rc circuit through experimental analysis, confirming theoretical predictions and understanding voltage behavior.
Rl Circuit Transient Response Lab Experiment Introduction for lab exercise 03: rc circuit response. this lecture was recorded at saint martin's university in the fall 2018 term as part of the course mec. This lab will also familiarize students with the test bench instruments used in this class by having them use the equipment to analyze some fundamental response trends of step and sinusoidal input functions for an rc circuit. Now we want to derive an equation for the output voltage of a circuit with both resistance and reactance, which will require a brief foray into the eld of complex analysis. In a simple rc circuit where the resistor and capacitor are in series, the rc time constant is defined as the time it takes the voltage across a capacitor to reach 63.2% of its final value when charging (or 36.8% of its initial value when discharging).
Rc Circuit Step Response Analysis And Example Now we want to derive an equation for the output voltage of a circuit with both resistance and reactance, which will require a brief foray into the eld of complex analysis. In a simple rc circuit where the resistor and capacitor are in series, the rc time constant is defined as the time it takes the voltage across a capacitor to reach 63.2% of its final value when charging (or 36.8% of its initial value when discharging). Explore rc circuits with this lab manual covering theory, dc sinusoidal responses, and experiments. perfect for electrical engineering students. Up to this point, we have analyzed the rl and rc circuits in cases where we suddenly remove the power source from them. now we are curious to know what happens when we suddenly apply a power source, also known as a step response. The document describes a laboratory experiment on transient circuits involving rc and rl circuits. students will use a discovery board and ltspice to analyze step responses, time constants, and behaviors of first and second order circuits. This laboratory experiment is designed to investigate the behavior of capacitor responses of rc circuits, the basis for most electronic timing circuits. an oscilloscope and digital multimeter will be used in this lab.
Time And Frequency Response Of Rc Circuit Pdf Explore rc circuits with this lab manual covering theory, dc sinusoidal responses, and experiments. perfect for electrical engineering students. Up to this point, we have analyzed the rl and rc circuits in cases where we suddenly remove the power source from them. now we are curious to know what happens when we suddenly apply a power source, also known as a step response. The document describes a laboratory experiment on transient circuits involving rc and rl circuits. students will use a discovery board and ltspice to analyze step responses, time constants, and behaviors of first and second order circuits. This laboratory experiment is designed to investigate the behavior of capacitor responses of rc circuits, the basis for most electronic timing circuits. an oscilloscope and digital multimeter will be used in this lab.
