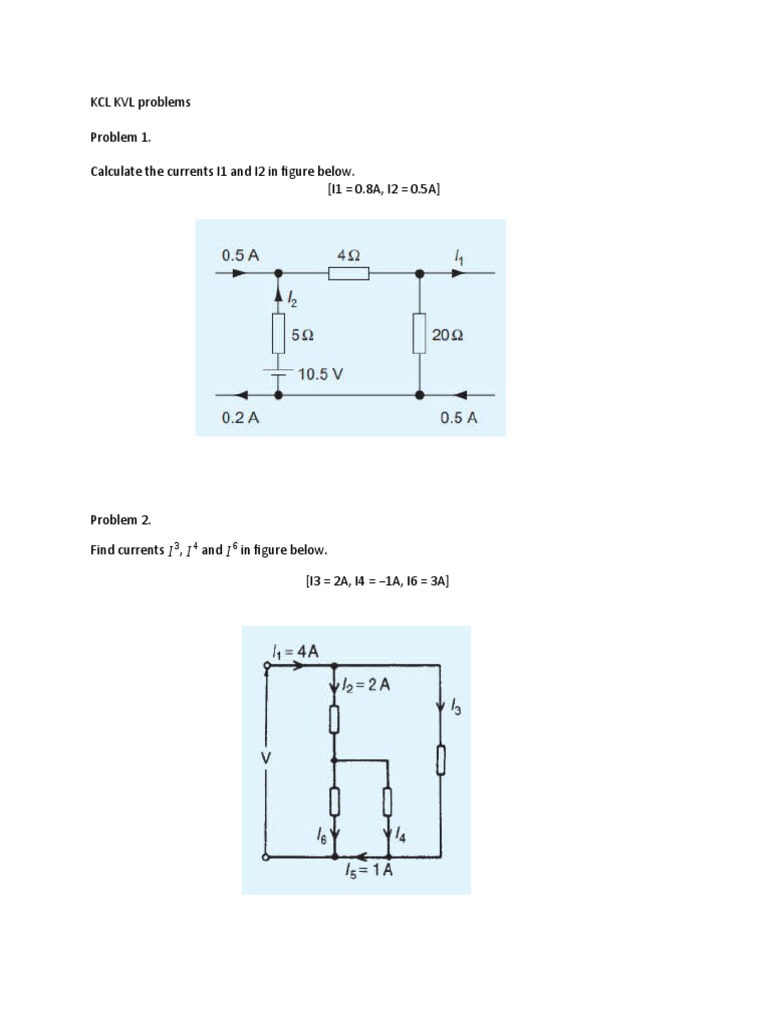

Kcl Kvl Problems Pdf Kcl and kvl problems with solutions this document contains examples of solving for currents in circuits using various circuit analysis techniques such as kcl, kvl, superposition, thévenin's theorem, and norton's theorem. Kirchhoff's current law (kcl) and kirchhoff's voltage law (kvl) help us in defining relationships between current and voltages in more complex circuits. these relationships are useful is solving for unknown voltages and currents in a circuit.

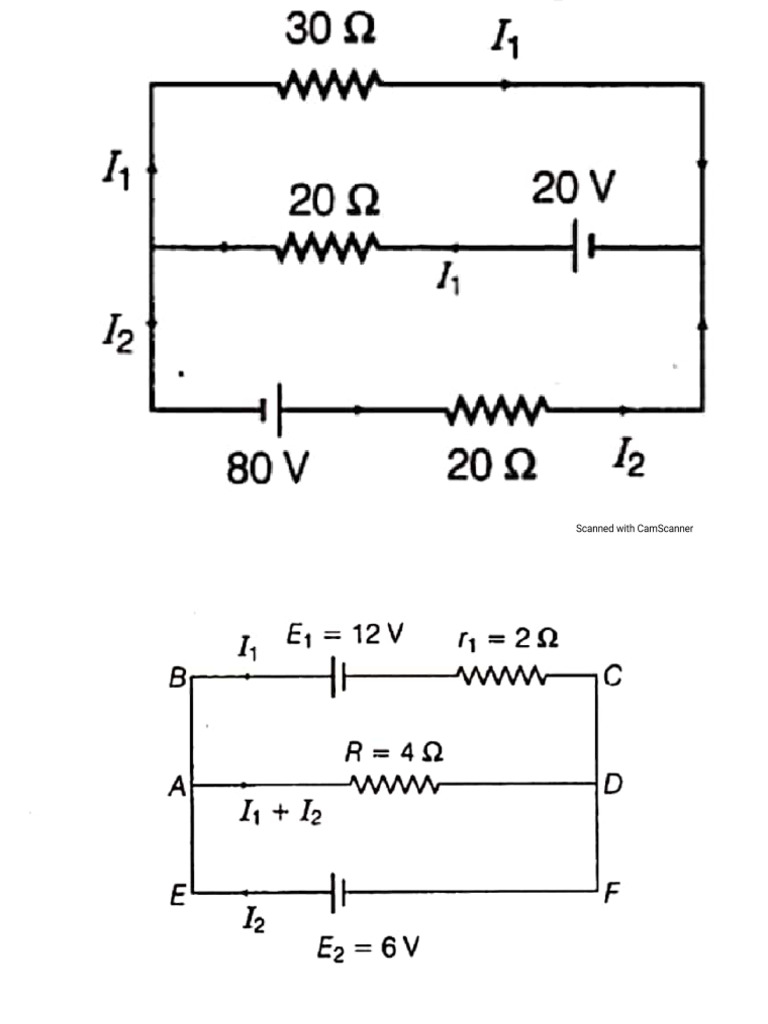

Practice Sheet Of Kvl And Kcl Pdf Kirchho 's current law (kcl): pik = 0 at each node. kirchho 's current law (kcl): pik e.g., at node b, i3 i6 i4 = 0. pik e.g., at node b, pik e.g., at node b, kirchho 's voltage law (kvl): pvk = 0 for each loop. We analyzed it using kvl and ohm’s law. we will analyze circuits like this one, which has three currents. this will require kirchhoff’s current law (kcl). • ohm’s law and kvl give us the following equations how can we derive those results? then finally all other roads are closed for repairs! what current is flowing in r4?. “ideal wires” have zero resistance, zero inductance and zero capacitance. there is no time delay for a voltage to travel along an ideal wire. Master kirchhoff's laws with solved problems to excel in circuit analysis and problem solving.
Kvl Kcl Practice Problems Pdf Electrical Network Physical Quantities “ideal wires” have zero resistance, zero inductance and zero capacitance. there is no time delay for a voltage to travel along an ideal wire. Master kirchhoff's laws with solved problems to excel in circuit analysis and problem solving. Kirchhoff’s current law (kcl) and kirchhoff’s voltage law (kvl), and they are simply restatements of charge and energy conservation, respectively. Note that kcl is always solved implicitly since at each node we have a sum of currents in meshes: each mesh enters and leaves with the same current. Hence we apply kcl at the single nonsimple node a to obtain the current through the 3 v source in terms of i as i 2 as shown in fig. next apply ohm’s law to all resistors (in terms of i) then apply kvl around the outside loop for which we know the voltages across all elements. When solving circuit problems with multiple loops, you will generally find that you can use kvl and kcl to write more equations than there are unknown currents.
Kvl Kcl Practice Problems Pdf Electrical Network Physical Quantities Kirchhoff’s current law (kcl) and kirchhoff’s voltage law (kvl), and they are simply restatements of charge and energy conservation, respectively. Note that kcl is always solved implicitly since at each node we have a sum of currents in meshes: each mesh enters and leaves with the same current. Hence we apply kcl at the single nonsimple node a to obtain the current through the 3 v source in terms of i as i 2 as shown in fig. next apply ohm’s law to all resistors (in terms of i) then apply kvl around the outside loop for which we know the voltages across all elements. When solving circuit problems with multiple loops, you will generally find that you can use kvl and kcl to write more equations than there are unknown currents.
Kvl Kcl Practice Problems Pdf Electrical Network Physical Quantities Hence we apply kcl at the single nonsimple node a to obtain the current through the 3 v source in terms of i as i 2 as shown in fig. next apply ohm’s law to all resistors (in terms of i) then apply kvl around the outside loop for which we know the voltages across all elements. When solving circuit problems with multiple loops, you will generally find that you can use kvl and kcl to write more equations than there are unknown currents.
