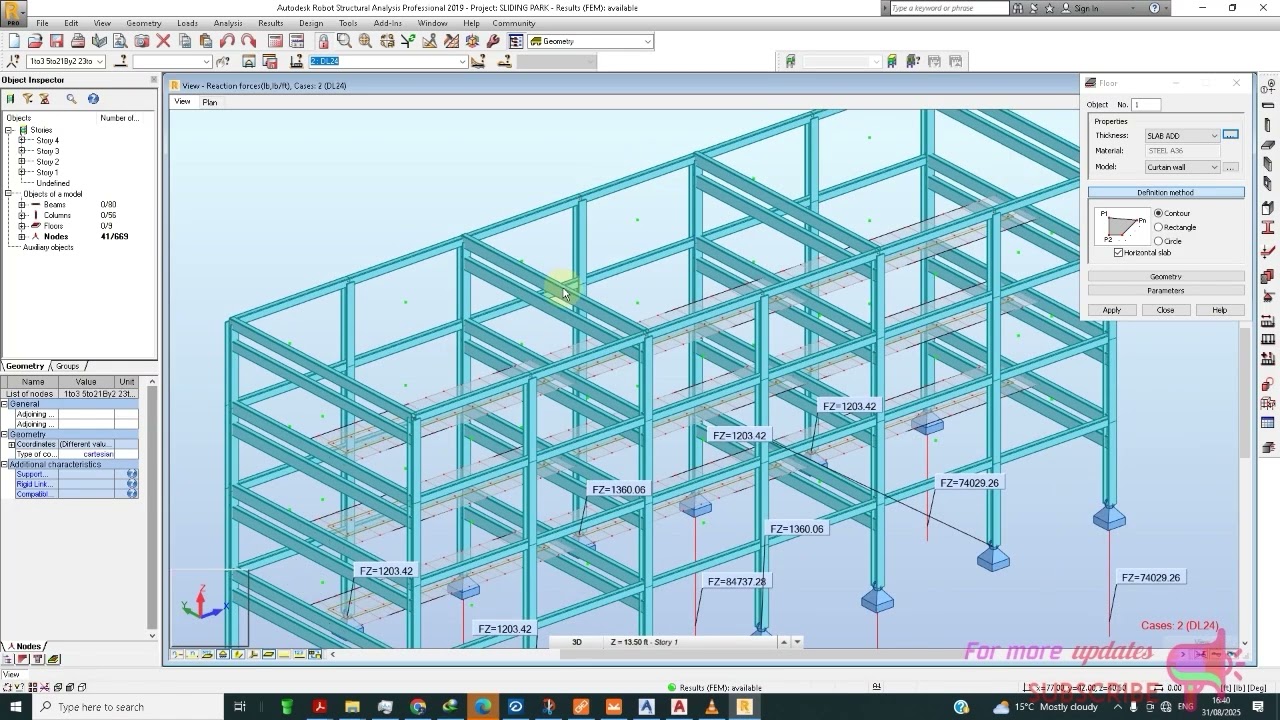

Solved Isolated Node Error Autodesk Community The "isolated node" warning followed by "isolated nodes have been found" appears during model analysis in robot structural analysis. how to remove such isolated nodes from the model. Fix isolated nodes have been found in robot structural analysis with this step by step troubleshooting guide! this issue occurs when nodes exist in the model but are not connected to.
Structure Verification Isolated Nodes Autodesk Community Isolated nodes often occur due to import errors, incomplete geometry creation, or accidental deletion of connected elements. here's a comprehensive approach to tackling them:. I am having a problem here, when verifying the model and stating there are isolating nodes, when i select the nodes and delete them, they are not deleted. i tried to open the model in repair mode but with no use. I have tried several times to click them manually in to the stories where i think they belong but then i get error messages that they extend out of the limitations of the story. this must obviously happen in a building like this where the sloped roof extends below some of the other stories. Generate model with analysis >generation of computational model. run model verification (analysis > verification) and click the isolated nodes warning (if message will appear).
Solved Isolated Nodes Have Been Found Dead Live Load Analysis I have tried several times to click them manually in to the stories where i think they belong but then i get error messages that they extend out of the limitations of the story. this must obviously happen in a building like this where the sloped roof extends below some of the other stories. Generate model with analysis >generation of computational model. run model verification (analysis > verification) and click the isolated nodes warning (if message will appear). I am having trouble with an error in a model when i verify or run the analysis; there is an isolated node however the isolated node has coordinates nan (ind) and i am unable to find delete the node. i have also opened the file in repair mode but this hasn't resolved the problem. Solved: greetings, i am new to robot structural analysis and i have been modelling a building. when i verify it, i get a warning of an isolated node. As a result fictitious node, defined for hollowcore one way panels (as a center of rigid link), became isolated. change hollowcore one way calculation model for panels in manually defined rigid links planes, to calculation model with no diaphragm. then isolated nodes warning will disappear. Audio tracks for some languages were automatically generated. learn more.
Solved Rsa 2014 Isolated Nodes Autodesk Community I am having trouble with an error in a model when i verify or run the analysis; there is an isolated node however the isolated node has coordinates nan (ind) and i am unable to find delete the node. i have also opened the file in repair mode but this hasn't resolved the problem. Solved: greetings, i am new to robot structural analysis and i have been modelling a building. when i verify it, i get a warning of an isolated node. As a result fictitious node, defined for hollowcore one way panels (as a center of rigid link), became isolated. change hollowcore one way calculation model for panels in manually defined rigid links planes, to calculation model with no diaphragm. then isolated nodes warning will disappear. Audio tracks for some languages were automatically generated. learn more.
Solved Isolated Nodes And Instability Type 3 Autodesk Community As a result fictitious node, defined for hollowcore one way panels (as a center of rigid link), became isolated. change hollowcore one way calculation model for panels in manually defined rigid links planes, to calculation model with no diaphragm. then isolated nodes warning will disappear. Audio tracks for some languages were automatically generated. learn more.
