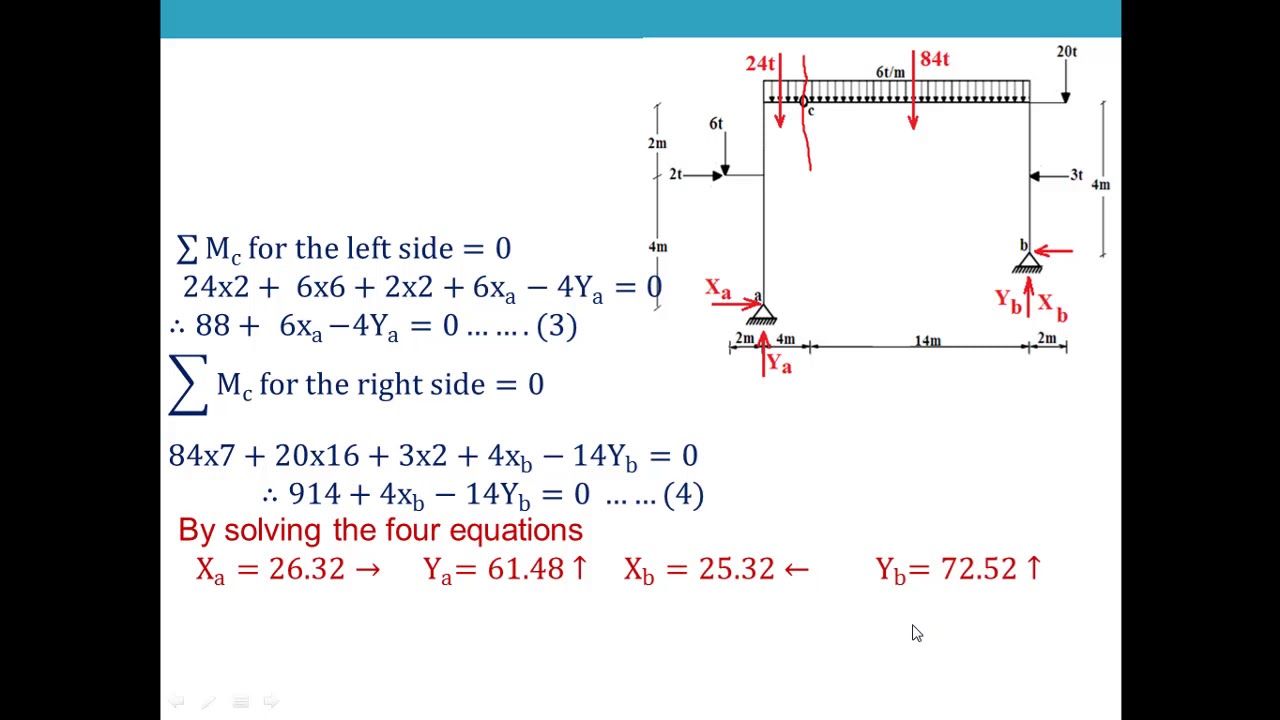

Lecture 6 Internal Forces Frames Pdf This video describes the type of internal forces. it presents example to investigate the internal forces in three hinged frame. Internal forces in beams and frames: when a beam or frame is subjected to external transverse forces and moments, three internal forces are developed in the member, namely the normal force (n), the shear force (v), and the bending moment (m).
Internal Forces Of Frames Pdf However we may also want to find out the internal forces (and moments) at different points of the beam. this will help us decide if the beam can support the applied load or not. 12 20 0 20 6 20 16 8 20 0 f a 30 12 20 20 0 y 25.56 k. In this chapter, the student will learn how to determine the magnitude of the shearing force and bending moment at any section of a beam or frame and how to present the computed values in a graphical form, which is referred to as the “shearing force” and the “bending moment diagrams.”. Lecture 6,7 internal forces in frames free download as pdf file (.pdf), text file (.txt) or view presentation slides online.
05 Internal Forces In Frames Pdf Structural Analysis Structural In this chapter, the student will learn how to determine the magnitude of the shearing force and bending moment at any section of a beam or frame and how to present the computed values in a graphical form, which is referred to as the “shearing force” and the “bending moment diagrams.”. Lecture 6,7 internal forces in frames free download as pdf file (.pdf), text file (.txt) or view presentation slides online. To calculate these internal forces, simply draw a free body diagram of only part of the member, cutting through the member at the point you are interested in knowing the forces and moments. When a beam or frame is subjected to transverse loadings, the three possible internal forces that are developed are the normal or axial force, the shearing force, and the bending moment, as shown in section k of the cantilever of the figure below. Lecture notes on internal forces in frames and beams, covering shear and bending moment diagrams. engineering mechanics for college students. And at any point of our career it’s very important to know how to derive and calculate the internal forces (moments, normal & shear forces). so in this article, we’ll show, what internal forces are, its sign convention and examples on how to calculate internal forces for specific static systems.
Analysis Of Internal Forces In Frames Download Free Pdf Force To calculate these internal forces, simply draw a free body diagram of only part of the member, cutting through the member at the point you are interested in knowing the forces and moments. When a beam or frame is subjected to transverse loadings, the three possible internal forces that are developed are the normal or axial force, the shearing force, and the bending moment, as shown in section k of the cantilever of the figure below. Lecture notes on internal forces in frames and beams, covering shear and bending moment diagrams. engineering mechanics for college students. And at any point of our career it’s very important to know how to derive and calculate the internal forces (moments, normal & shear forces). so in this article, we’ll show, what internal forces are, its sign convention and examples on how to calculate internal forces for specific static systems.
3 Frame Element Internal Forces Download Scientific Diagram Lecture notes on internal forces in frames and beams, covering shear and bending moment diagrams. engineering mechanics for college students. And at any point of our career it’s very important to know how to derive and calculate the internal forces (moments, normal & shear forces). so in this article, we’ll show, what internal forces are, its sign convention and examples on how to calculate internal forces for specific static systems.
