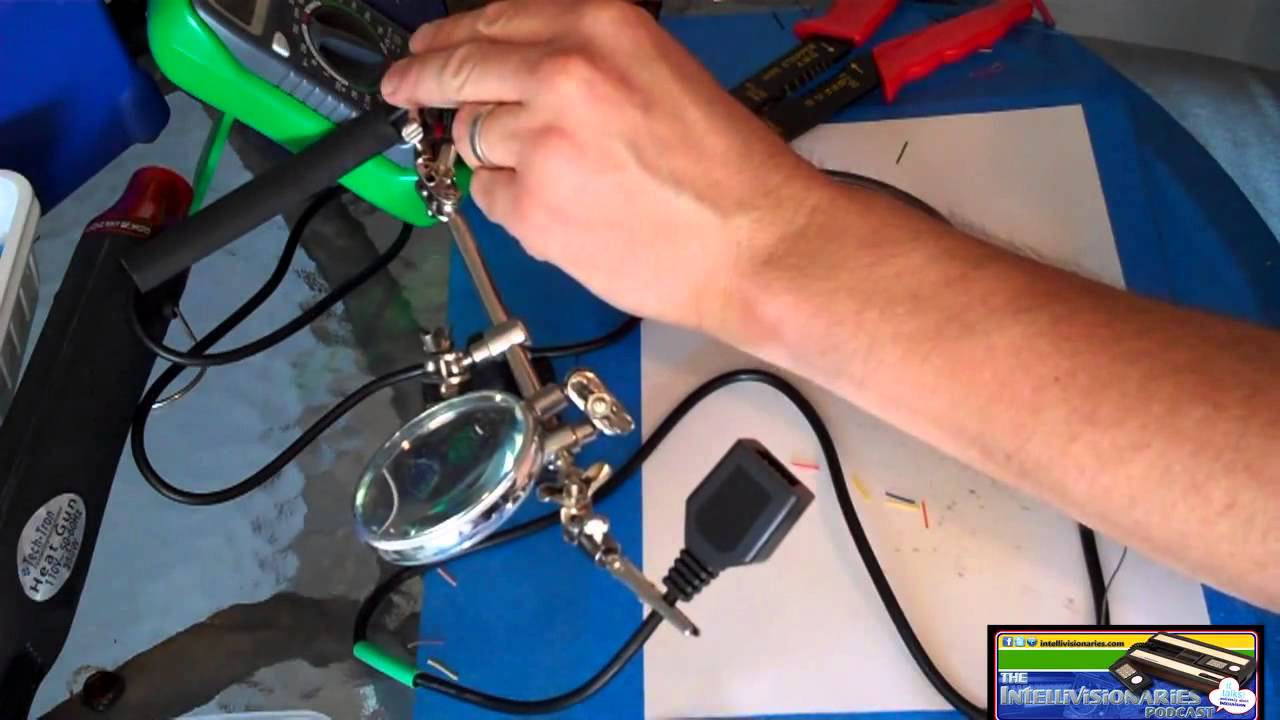

Intellivision Classic Controller Flashback Controller Pinouts The default controller that works in this setup is a flashback controller (aka the more modern one that probably will work a lot better than the oem classic controller). I have two different types of flashback controller adapter cables: the first adapter type allows you to use flashback controllers on your intellivision ii or sears super video arcade (the consoles that had the easily removable ‘db9 plug’ connectors on the controllers).
Intellivision Controller Pinouts Guide Pdf Electrical Components The controllers for the intellivision, intellivision ii, and sears super video arcade all work by grounding a certain combination of pins for each input (16 directions, 12 keypad buttons, and three action buttons the top two side buttons are functionally identical). How to connect the controllers for 1 player games: connect any controller to the left controller port. Pinouts for the intellivision controllers are the same across the board. the only difference is the connector that attaches the controller to the console. pin 5 is ground; all other pins are normally high unless a controller input pulls them low. I've been trying to get the controllers for my recently acquired intv flashback to work with nostalgia on a win 10 pc. i've tried 2 different interface boxes: the 2600 dapter d9 and the ultimate pc interface v2.
Intellivision Flashback Controller Adapters Welcome To The Pinouts for the intellivision controllers are the same across the board. the only difference is the connector that attaches the controller to the console. pin 5 is ground; all other pins are normally high unless a controller input pulls them low. I've been trying to get the controllers for my recently acquired intv flashback to work with nostalgia on a win 10 pc. i've tried 2 different interface boxes: the 2600 dapter d9 and the ultimate pc interface v2. These instructions are for making an adapter that allows you to use an intellivision flashback controller on an intellivision 2 console, but i believe it should also allow me to use the flashback controller with the gamerpro. All controller pins except for gnd are connected to the data input pins on the ay 3 8914 sound chip, and each direction and button shorts a different combination of these pins to gnd, which are detailed in the matrix below. We’ve recently figured out that there is two intellivision flashback controller types with different pinout! it’s either atgames or dollar general version. we built two different firmwares to suit your controller on your favorite emulator. see our download section. The classic mattel gaming console was re released in the form of the intellivision flashback in 2014. this featured 60 built in games, a classic design, authentic keypad controllers compatible with original consoles, and original overlays.
